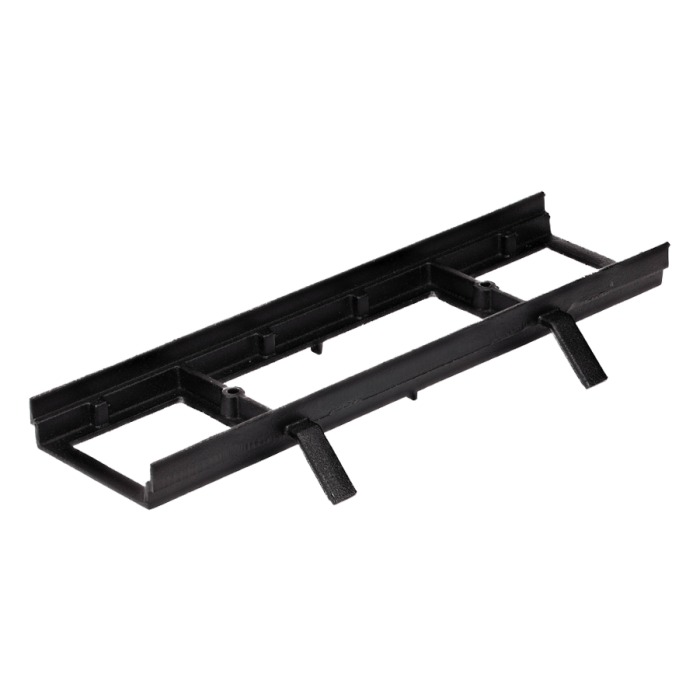

Nds DS-200H Dura Slope Ductile Iron Frame

Product Description

The NDS DS-200H Dura Slope Ductile Iron Frame adds support to the Dura Slope Channel Drain system to handle heavier traffic loads. It is a proven alternative to traditional concrete drains. UV inhibitors prevent fading and cracking from the sun. It is chemical-resistant, rustproof, maintenance-free, lightweight and easy to install.

• UV inhibitors prevent fading and cracking from the sun
• Chemical-resistant
• Rustproof
• Maintenance-free

Product Highlights

The NDS Dura Slope Ductile Iron Frame provides a Class D load rating and is recommended for pneumatic tire traffic.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: DS-200H

Technical Specifications

• Load Rating: NDS Class D (up to 575 PSI)
• Recommended Use: Pneumatic tire traffic such as fork lifts
• Brand: NDS
• Part Number: DS-200H
• Width: 6"
• Length: 24"
• Grate Width: 6.00" for NDS DuraSlope
• Grate Thickness: 0.75"
• Grate Material / Color / Finish: Ductile/Cast Iron - Raw
• Manufacturer: NDS
• System: Dura Slope
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - Ductile Iron and Edging - None
• Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational
