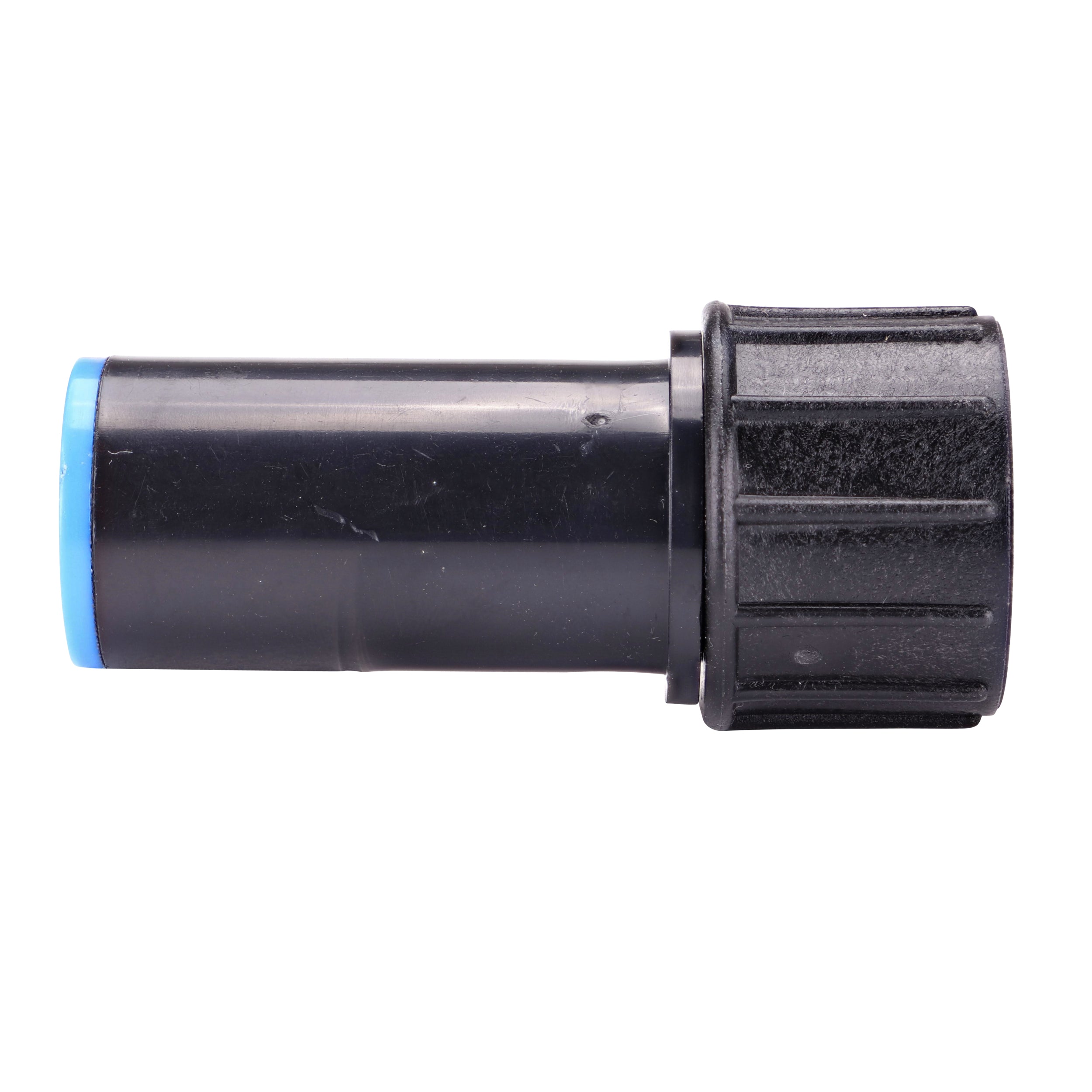

Nds Csaw 710 Drip Compression Fht Swivel Adapter

Product Description

The NDS CSAW 710 is a drip compression to female hose thread (FHT) swivel adapter designed for connecting drip irrigation tubing to standard hose-thread fittings. This adapter accepts 0.710-inch outside-diameter drip tubing on the compression end and provides a rotating FHT swivel connection on the outlet side. The swivel design allows the hose-thread connection to rotate freely, reducing stress on the tubing during installation and adjustment. At 0.04 pounds, it is a lightweight fitting suited for irrigation system assembly and service work.

This adapter is used in low-pressure drip and micro-irrigation systems, typically installed by landscape irrigators, plumbers, and irrigation contractors. It is well suited for connecting 0.710-inch poly drip tubing to hose bibs, manifold outlets, or hose-thread ports on irrigation timers and filters in residential and light commercial landscape applications.

Key Features

• Compression fitting end accepts 0.710-inch outside-diameter drip tubing

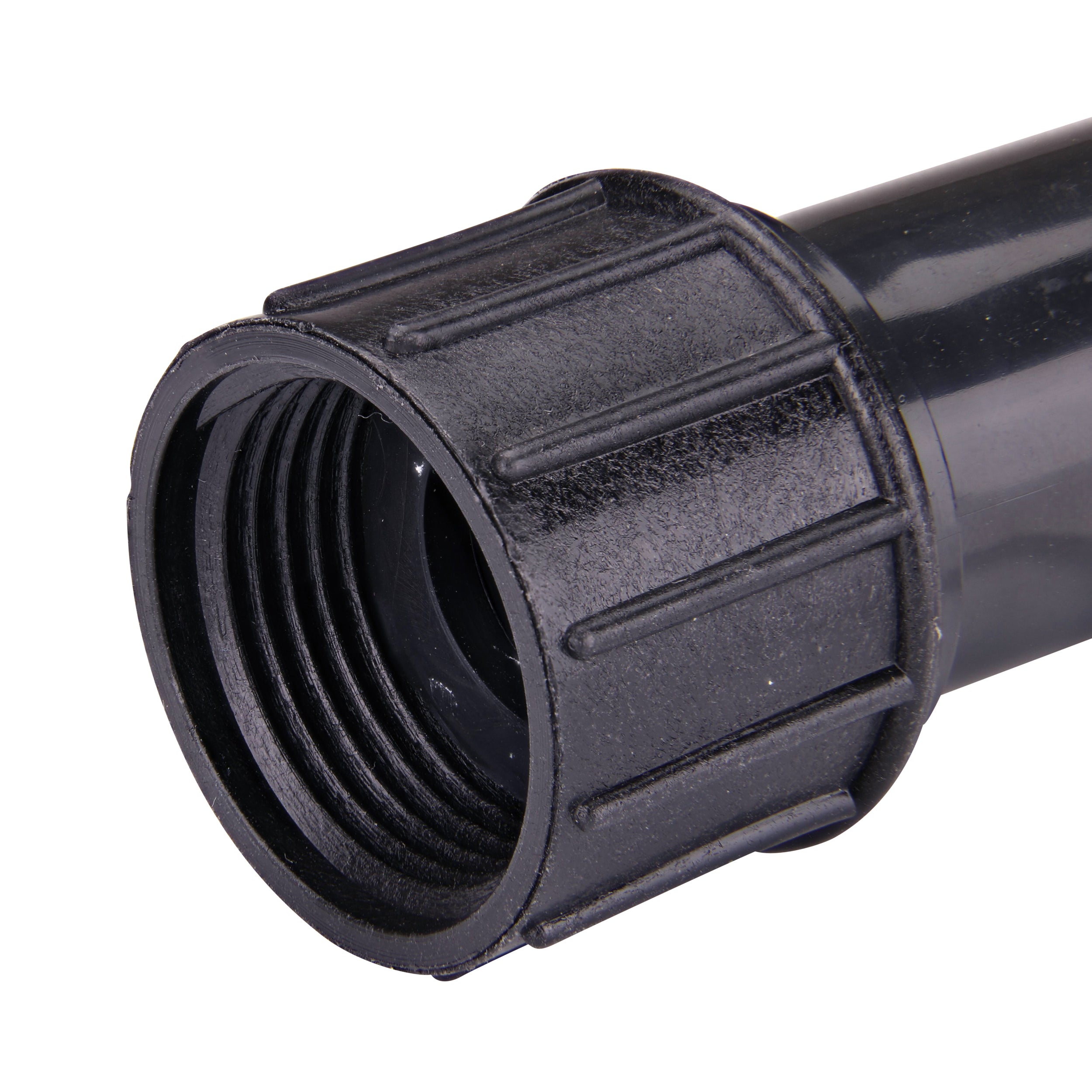

• FHT swivel outlet rotates freely to prevent tubing stress during hookup
• Lightweight construction at 0.04 pounds
• Order increment of 1 for single-unit purchasing

Compatibility

Designed for use with 0.710-inch outside-diameter drip irrigation tubing in standard low-pressure drip and micro-irrigation systems equipped with female hose thread connection points.

Installation Notes

Installation is typically performed by irrigation contractors or qualified landscape professionals. Shut off the water supply and relieve system pressure before making or breaking any irrigation connections. Hand-tighten the compression fitting onto the drip tubing, then snug the FHT swivel connection to the hose-thread port — avoid overtightening compression fittings, as this can crack the fitting body or deform the tubing. Verify all connections are leak-free before returning the system to service.

Technical Specifications

• Tubing Outside Diameter: 0.710 inches
• Inlet Connection: Drip Compression
• Outlet Connection: FHT Swivel
• Weight: 0.04 pounds
• UPC: 652692116202

Standard Information

• Brand: NDS
• Manufacturer Part Number: CSAW 710
