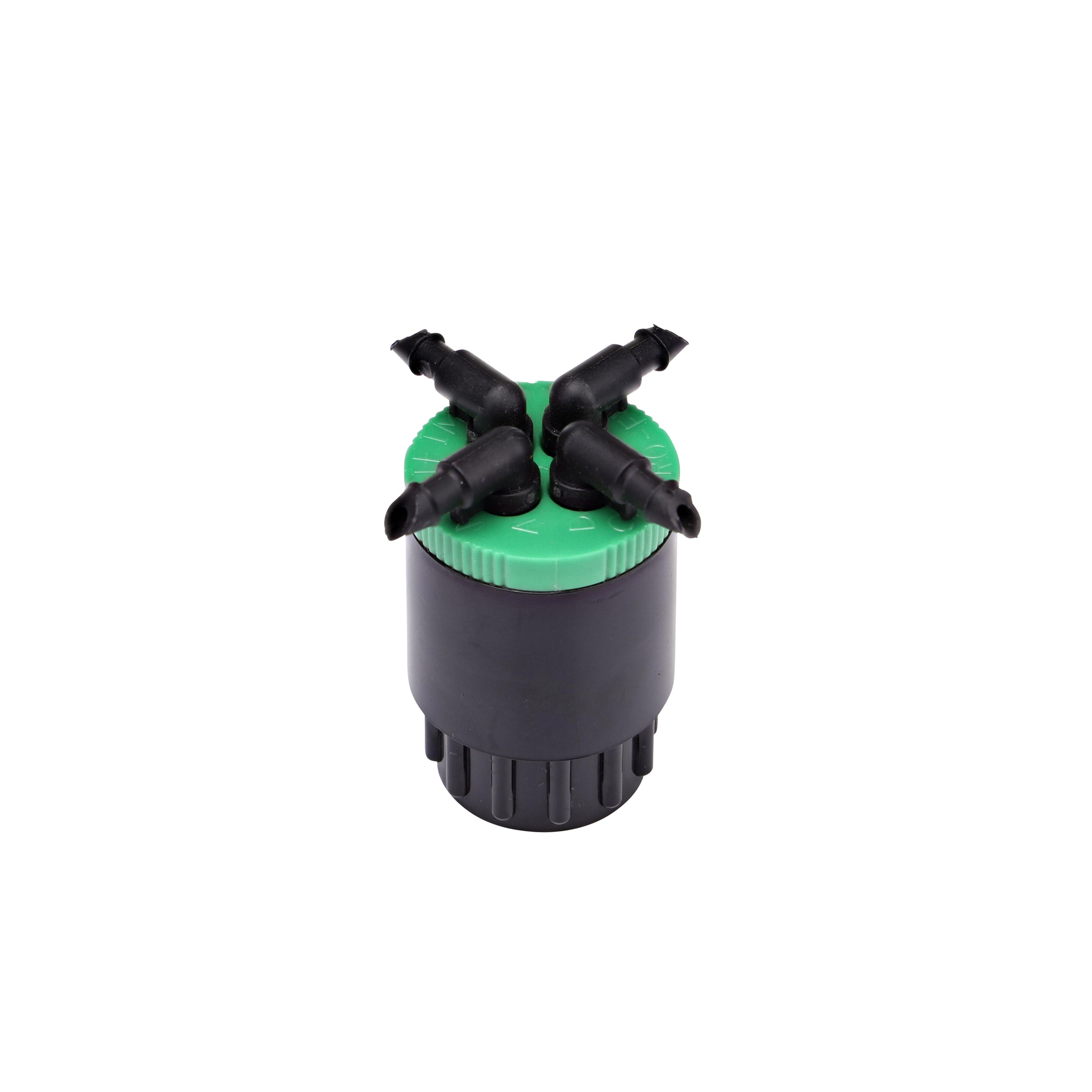

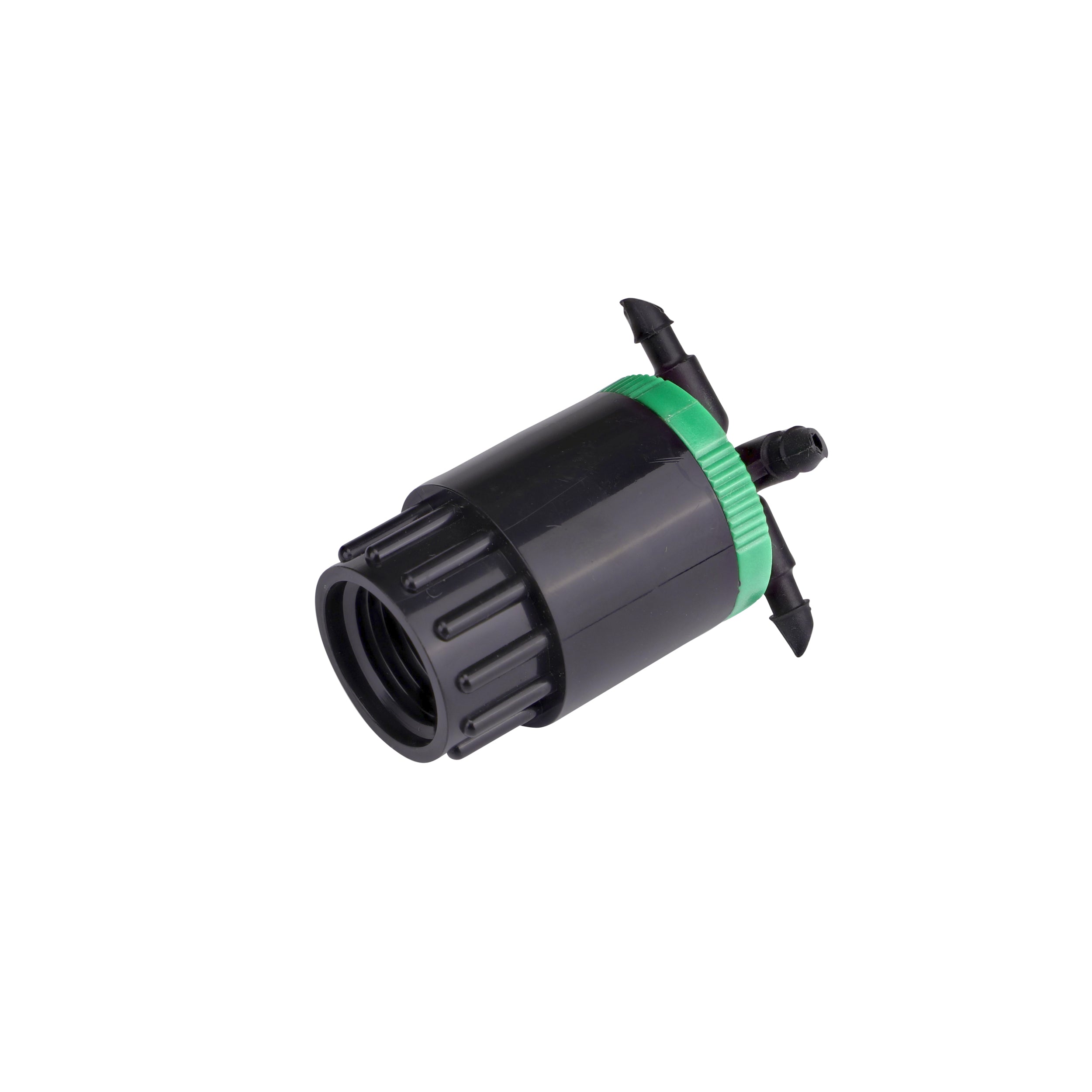

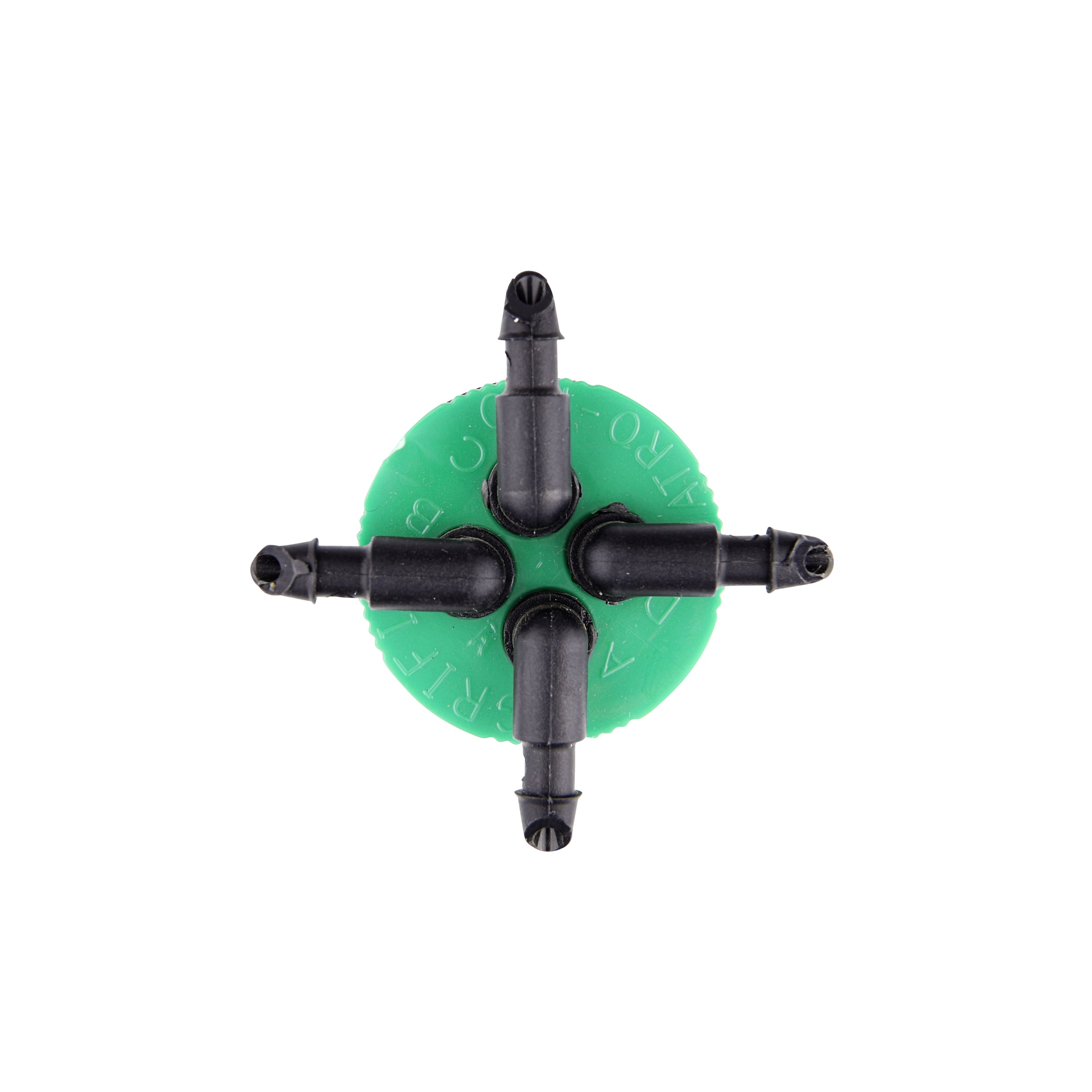

Nds Cfl 20 Cuatro-flo 4-outlet Drip Manifold 20 Gph

Product Description

The NDS CFL 20 is a four-outlet drip irrigation manifold designed for low-flow distribution in landscape and agricultural drip systems. It accepts a 0.5-inch FIPT inlet connection and distributes flow across four individual outlets at a combined rated flow of 20 gallons per hour (GPH). The green body coloring allows it to blend into turf and planting bed installations. This fitting is typically installed by irrigation contractors and landscape professionals as part of a subsurface or surface drip layout where even water distribution to multiple emitter lines is required.

The CFL 20 is suited for residential and light commercial irrigation applications. It connects to standard 0.5-inch female iron pipe thread fittings, making it compatible with common poly mainline and header configurations. The four-outlet design allows a single supply point to feed up to four individual drip lines or emitter runs, reducing the number of tee fittings and inline connections needed in a manifold assembly.

Key Features

• Four outlets for simultaneous distribution to multiple drip lines
• Rated flow of 20 GPH across all outlets
• 0.5-inch FIPT inlet for standard pipe thread connections
• Green body color for low-visibility installation in landscape settings
• Compact, lightweight form factor at 0.05 pounds

Compatibility

Designed as an OEM-style fitting for standard 0.5-inch FIPT drip irrigation mainline and manifold assemblies in residential and commercial landscape systems.

Installation Notes

Installation is typically performed by a licensed irrigation contractor or qualified landscape professional. Shut off the irrigation supply valve and relieve system pressure before making any connections. Use thread seal tape on all FIPT connections to prevent leaks. Follow local plumbing and irrigation codes when connecting to potable or reclaimed water supply lines.

Technical Specifications

• Flow Rate: 20 GPH
• Number of Outlets: 4
• Inlet Connection: 0.5 inch FIPT
• Color: Green
• Weight: 0.05 pounds
• UPC: 652692112402

Standard Information

• Brand: NDS
• Manufacturer Part Number: CFL 20
