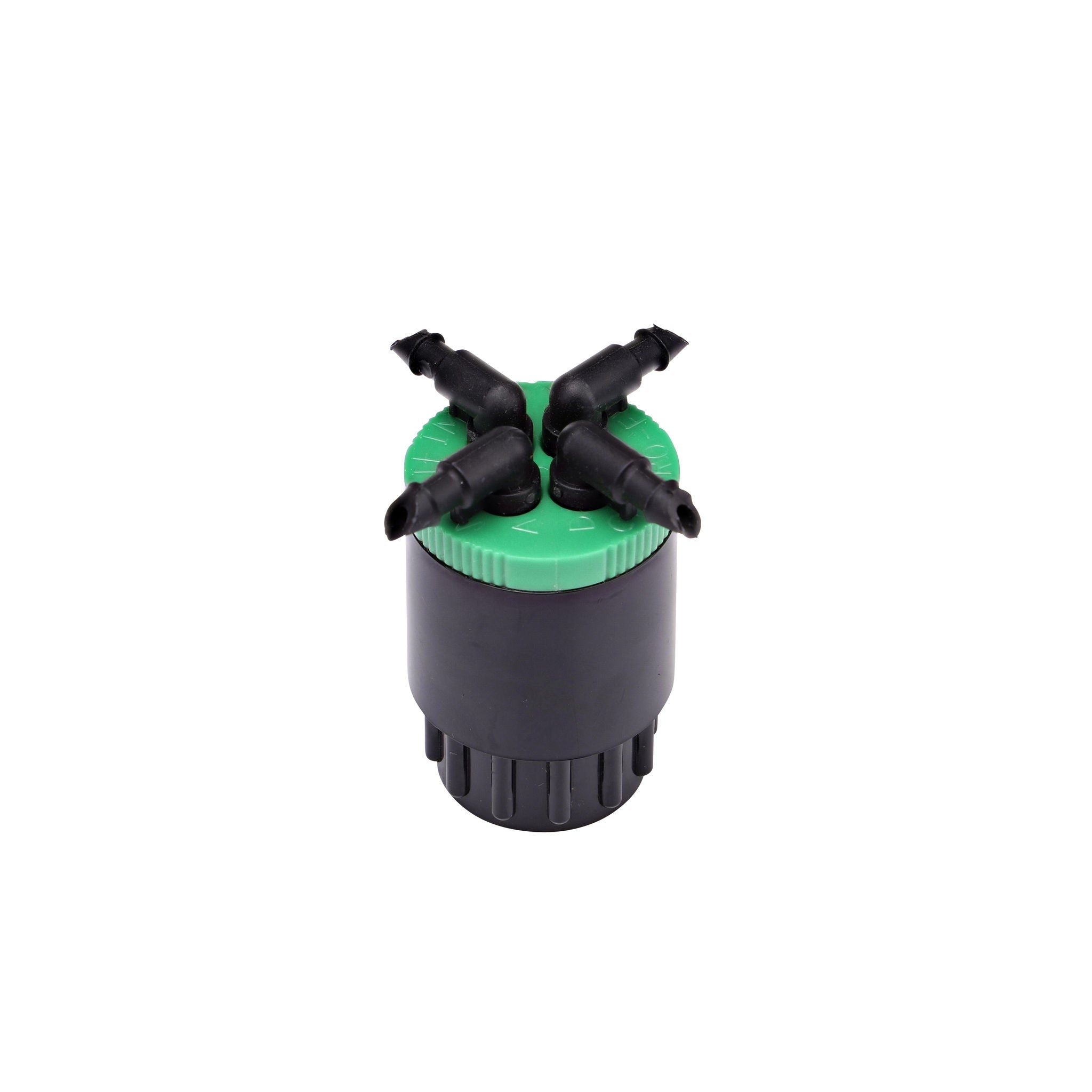

Nds CFL 10 Cuatro-Flo Pressure Compensating Bubbler 10 GPH

Product Description

The NDS CFL 10 Cuatro-Flo pressure compensating bubbler converts an underground sprinkler system to a micro irrigation drip system that waters up to 4 plants with a constant flow rate. Ideal for landscaped perimeters and garden areas. It delivers low volume irrigation to the plant’s root zone.

• Converts a sprinkler riser into a multi-outlet, low-flow drip irrigation emitter
• Four barbed swivel outlets enable tubing to be positioned where desired
• Each pressure compensating outlet maintains a discharge rate of 10 GPH

Product Highlights

Converts sprinkler risers to efficient drip irrigation with pressure-compensated water flow to up to four plants.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: CFL 10
• Country of Origin: USA

Technical Specifications

• MPN: CFL 10
• Brand: NDS
• Inlet Size: 1/2 in. FPT
• Application: Converts an underground sprinkler system to a micro irrigation drip system that waters up to 4 plants with a constant flow rate. Ideal for landscaped perimeters and garden areas; can be used above grade or below grade in an emitter access box. As part of a complete drip system, the bubbler delivers low volume irrigation to the plant ’s root zone; the pressure compensating emitter maintains a constant flow rate should the water pressure change, and at varying positions from the water source
• Material: Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking
• Sustainability: Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion
• Country of origin: USA
• Number of Outlets: 4
• Flow Rate: 10 gph
• Domestic/Import: Domestic
• Specifications: 1/2 in FNPT, 4 Swivel Barbed Outlets, 10 gph
• Tubing Compatibility: 1/2 in.
• Connection Size: 1/2 in. Inlet
• Connection Type: FIPT x Barb Swivel
• Emitter Type: Bubbler
• Series/Model: Cuatro-Flo
