Nds 990 Square Catch Basin Drain Grate 9 in.

Product Description

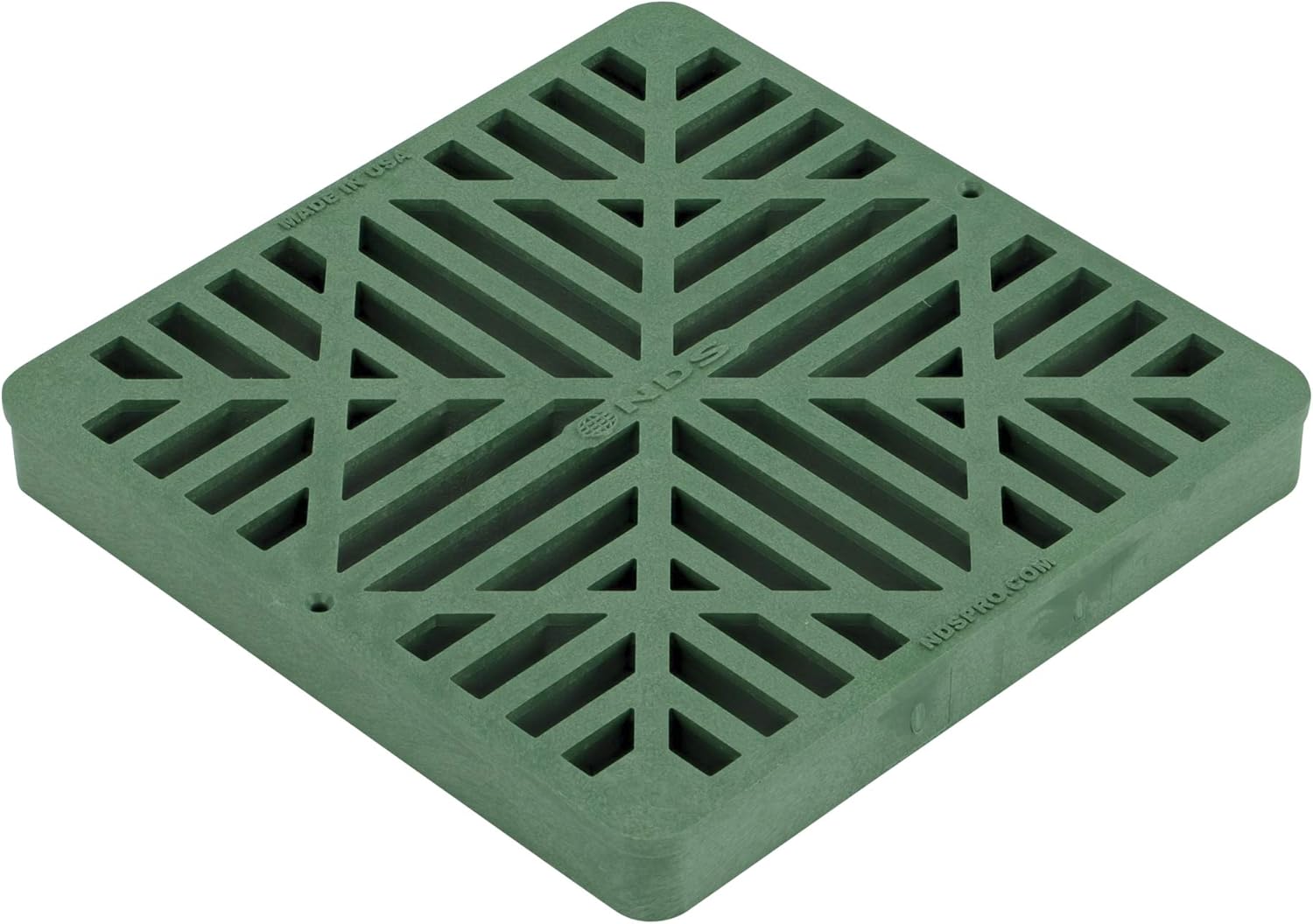

The NDS 990 square catch basin drain grate is a 9-inch green plastic drain strainer. It protects your drainage system by preventing particles from entering and potentially clogging the pipeline while letting excess surface water flow through. It is suitable for lawns, patios and walkways.

• Anti-Clogging
• Made in the USA
• ADA Compliant

Product Highlights

The NDS square catch basin drain grate is lightweight and easy to install. Constructed from UV-stabilized high-density polyethylene (HDPE) for long-term outdoor performance and chemical resistance.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 990
• Country of Origin: USA

Technical Specifications

• Color: Green Plastic
• Style: Modern
• Import: Made in the USA
• Material: Plastic
• Special Feature: Anti-Clogging
• Assembly required: No
• Batteries required: No
• CATALOG NUMBER: 990
• COMMODITY CODE DESCRIPTION LEVEL 3: Drain Components
• Color/Finish: Green
• Item: Grate
• HDPE: HDPE
• Product Sub-Type: Drain Accessories
• Product Type: Drains and Carriers

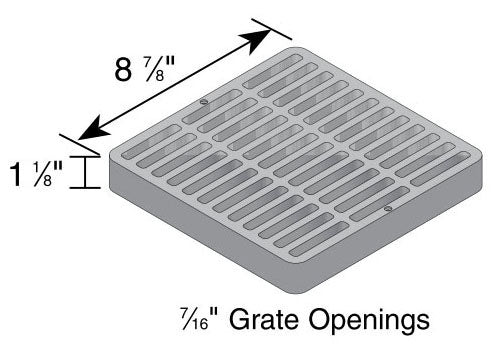

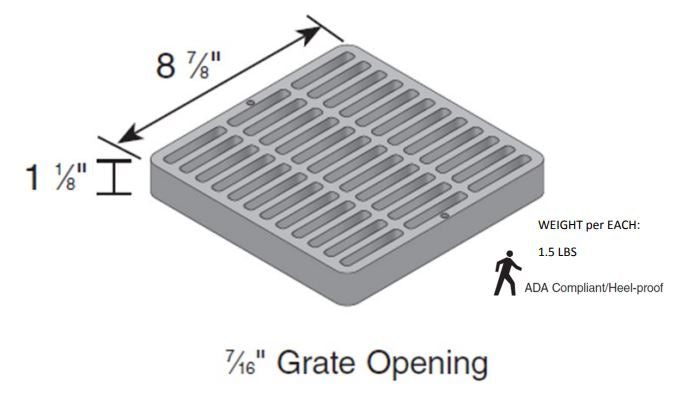

• Size: 9 Inch Length x 9 Inch Width x 1-1/8 Inch Height
• Type: Square

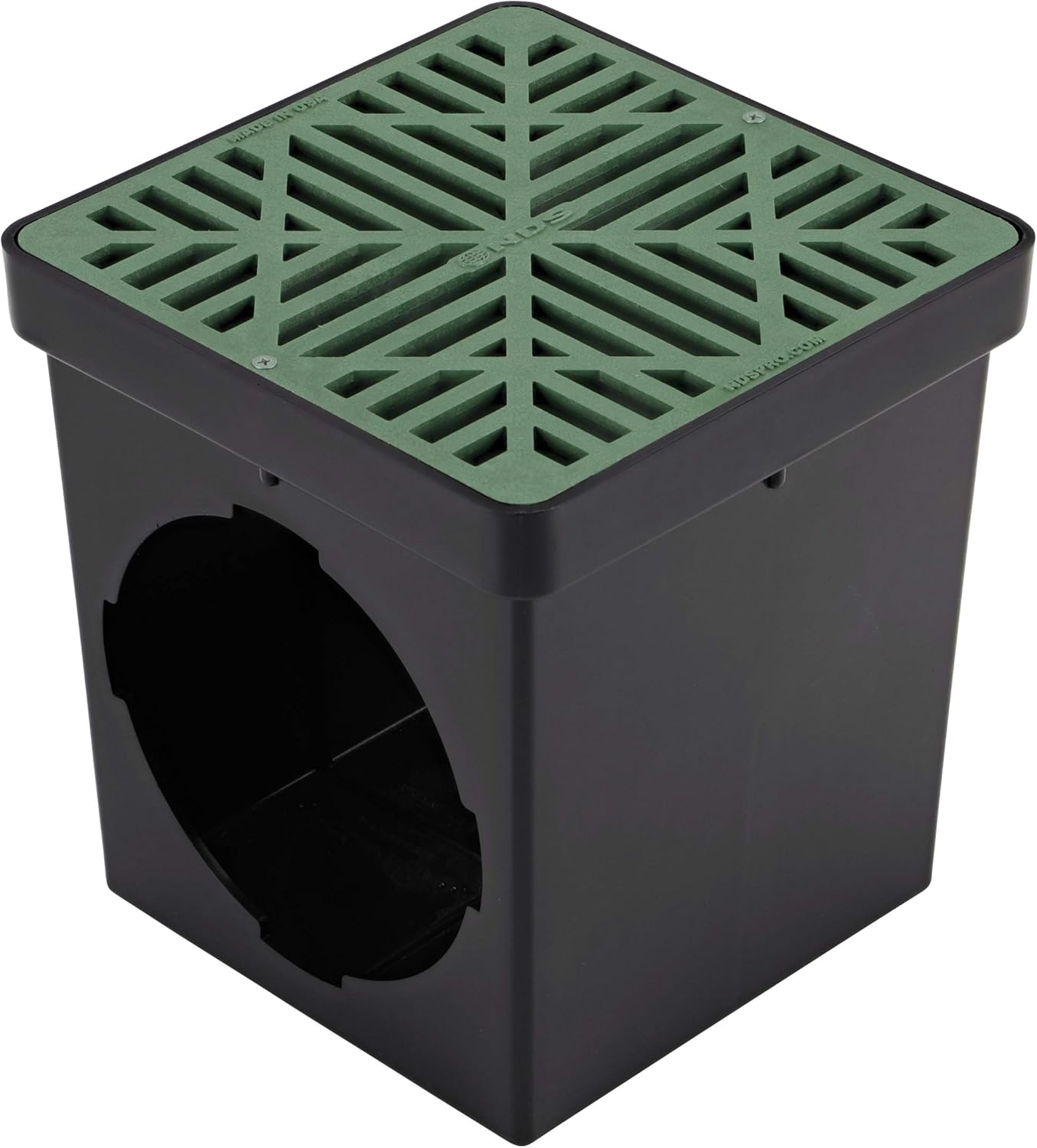

• Used On Item: 9 Inch x 9 Inch Catch Basin
• Brand: NDS
• Finish Type: HDPE with UV inhibitors
• Compatible Groove Diameter: 9 Inches
• Fits Hole Size: 9 Inches
• Item Depth: 9.0000
• Item Weight: 0.5 Pounds
• Grate Width: 9.0" x 9.0" for NDS 900 Series
• Grate Height: 1.125"
• Weight: 0.5 lb
• Grate Material / Color / Finish: Plastic/HDPE - Green
• Manufacturer: NDS
• System: 900 Series
• Grate Load Class: Class A
• Channel Material: Plastic - (PP, HDPE, PE) - Gray
• Application: Residential, Decorative, Sports Complex - Recreational
• Length: 8-7/8 in.
• Width: 8-7/8 in.
• Height: 1-1/8 in.
• ADA: Yes
• Load Rating: Class A
• Capacity: 114.69 GPM
• Grate Opening: 7/16''
