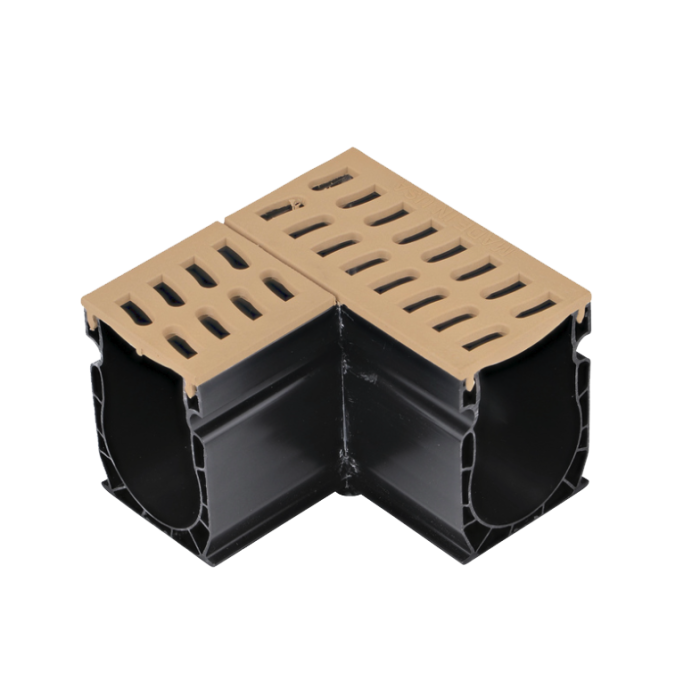

Nds 9382 Slim Channel 90 Degree Elbow with Slotted Grate

Product Description

The NDS 9382 Slim Channel offers a convenient patio and landscape drainage option with the fabricated 90 Degree Angle Channel with Sand Slotted Grate. The Slim Channel system captures the best aspects of both the Micro and Mini Channel series and interfaces with SCH 40 PVC pipe fittings.

• ADA Compliant
• Class A Load Rating (1-60 PSI)
• Use With NDS Slim Channel Drain

Product Highlights

This channel drain and grate have a 90° bend to make turns to left or right to customize layout. It is made from UV Protected Material and is Heel-Proof.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 9382
• Country of Origin: USA

Technical Specifications

• Grate Width: 2.25" for NDS Slim Channel
• Grate Thickness: 0.25" with T-Top
• Grate Material / Color / Finish: Plastic/HDPE - Sand
• Manufacturer: NDS
• System: Slim Channel
• Grate Load Class: Class A
• Grate Pattern: SLOTTED
• Grate Pattern Style: SLOTTED
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Residential
• Material: UV Protected High-Density Polyethylene (HDPE)
• ADA Compliant: Yes
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Use With: NDS Slim Channel products and accessories
• UV Inhibitors: Treated with UV inhibitors to prevent fading and cracking
