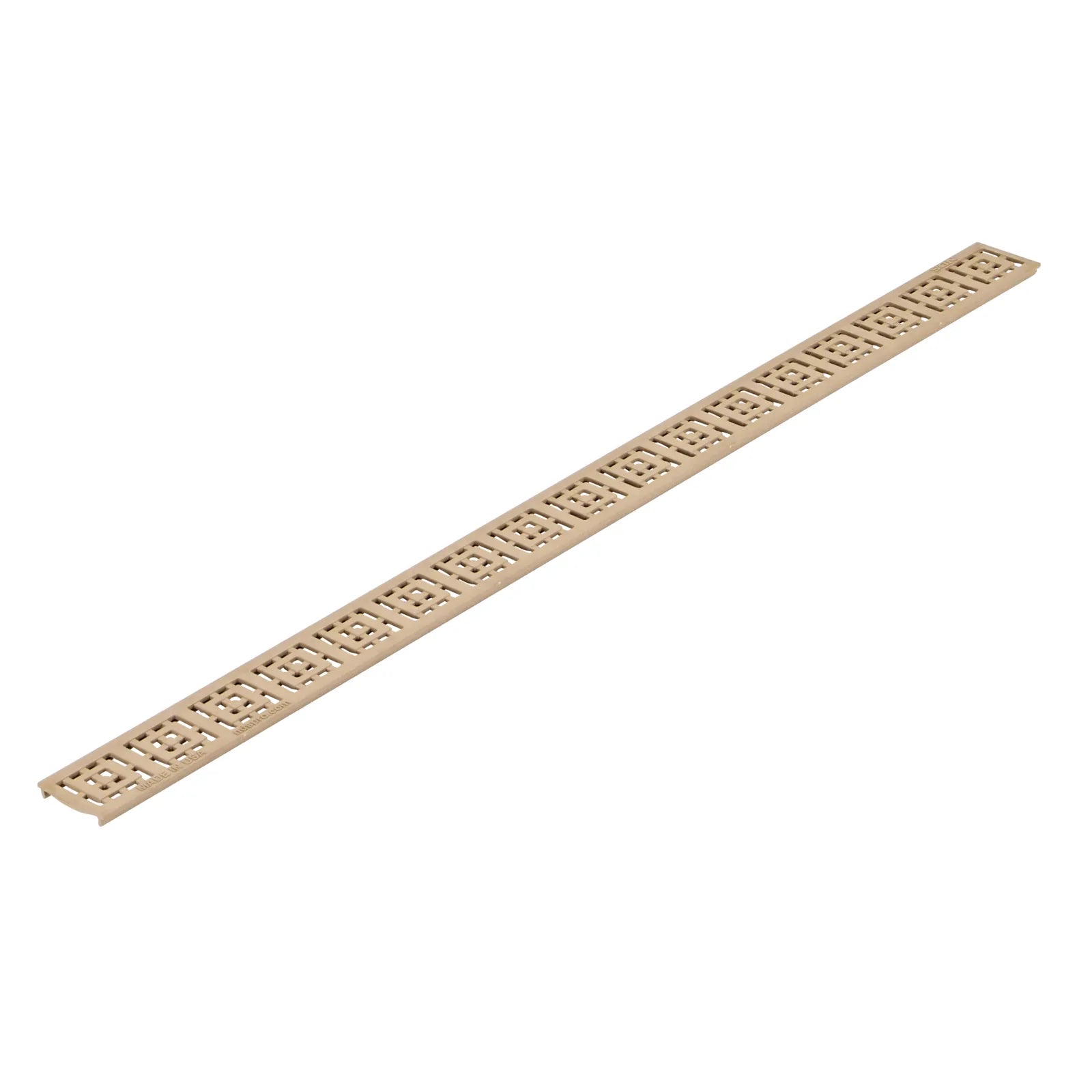

Nds 9252 Class A Plastic Square Deco 2 inches x 36 inches Grate

Product Description

The NDS 9252 Class A Plastic Square Deco Grate is ADA compliant and heel-proof. This snap-in grate comes in 36" sections with a 2.25" width. It's a great replacement for NDS Slim Channel grates and fits into residential outdoor living areas such as pools, spas, paver patios and slab patios.

• ADA Compliant
• Heel-Proof
• Snap-in grate

Product Highlights

Suitable for residential outdoor living areas, this light-duty grate meets Class A Load Requirements for low-traffic applications.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 9252

Technical Specifications

• Grate Width: 2.25" for NDS Slim Channel
• Grate Height: 0.25" with T-Top
• Grate Material / Color / Finish: Plastic/HDPE - Sand
• Manufacturer: NDS
• System: Slim Channel
• Grate Load Class: Class A
• Grate Pattern: Square Deco
• Application: Residential
• Flow Rate: 18 gpm
• Length: 3 ft
• Material: Polypropylene
• Opening Size: 0.246 in
• Shape: Square
• Suitable For Use With: Slim Channel Drains
• Surface Area: 5.73 sq-in/ft
• Use With: NDS Slim Channel Drain (#9206)
• ADA Compliant: Yes
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Dimensions: 36" Length x 2.25" Width
• Width: 2-1/4"
• Open Surface Area: 7.09 sq. in / linear foot
• Gallons Per Minute: 21.69 GPM / linear foot
