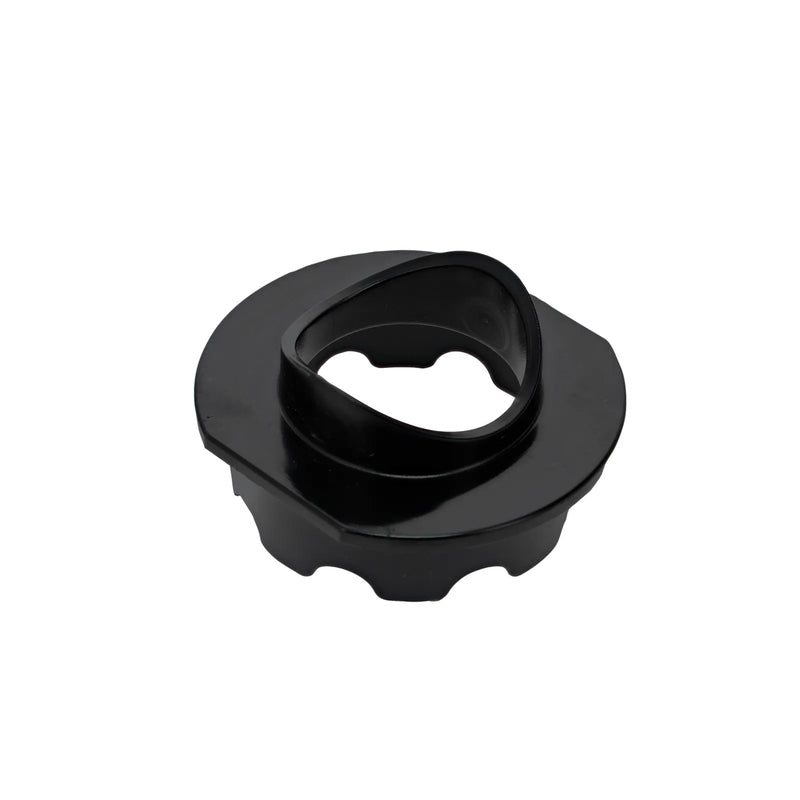

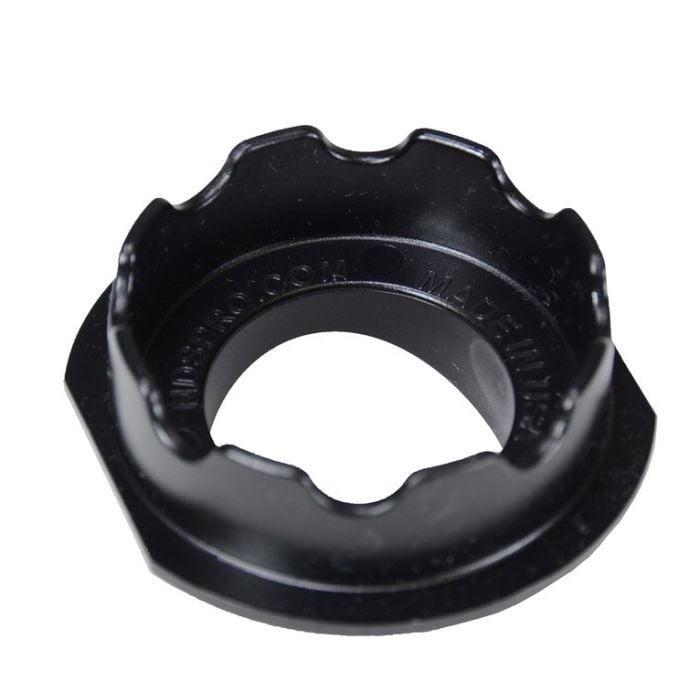

Nds 9250 Slim Channel Bottom Outlet

Product Description

The NDS 9250 Slim Channel Bottom Outlet connects easily to 1.5 inch SCH 40 pipe. Constructed from durable PVC, this outlet is designed for versatile installation anywhere along the channel. It is specifically engineered for use with the NDS slim channel system, ideal for residential outdoor living areas.

• Connects easily to 1.5 inch SCH 40 pipe
• Durable PVC construction ensures long-lasting performance
• Allows for versatile installation anywhere along the channel length

Product Highlights

The NDS Slim Channel Bottom Outlet is made of PVC material with UV inhibitors. It is suitable for use with NDS 6 ft L slim channel drain and 1-1/2 in SCH 40 pipe.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 9250
• Country of Origin: United States

Technical Specifications

• ADA Compliant: ADA Compliant
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Grate Width: 2.25"
• Grate Thickness: 0.25"
• Manufacturer: NDS
• System: Slim Channel
• Grate Pattern: SLOTTED
• Grate Pattern Style: SLOTTED
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Residential
• Color: Black
• Overall Height: 1.23 in
• Overall Length: 2.26 in
• Overall Width: 2.26 in
• SPECIAL_ORDER_ITEM: N
• Special Order Item: N
• Suitable For Use With: NDS® 6 ft L Slim Channel Drain and 1-1/2 in SCH 40 Pipe
• Compatible Area of Use: Patio,Pool Deck,Walkways
• MPN: Bottom Outlet
• Country of Origin: United States
