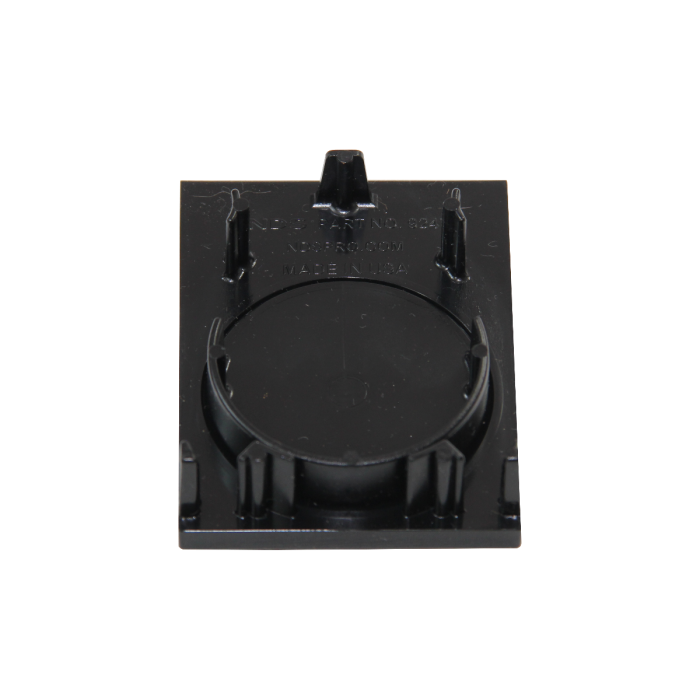

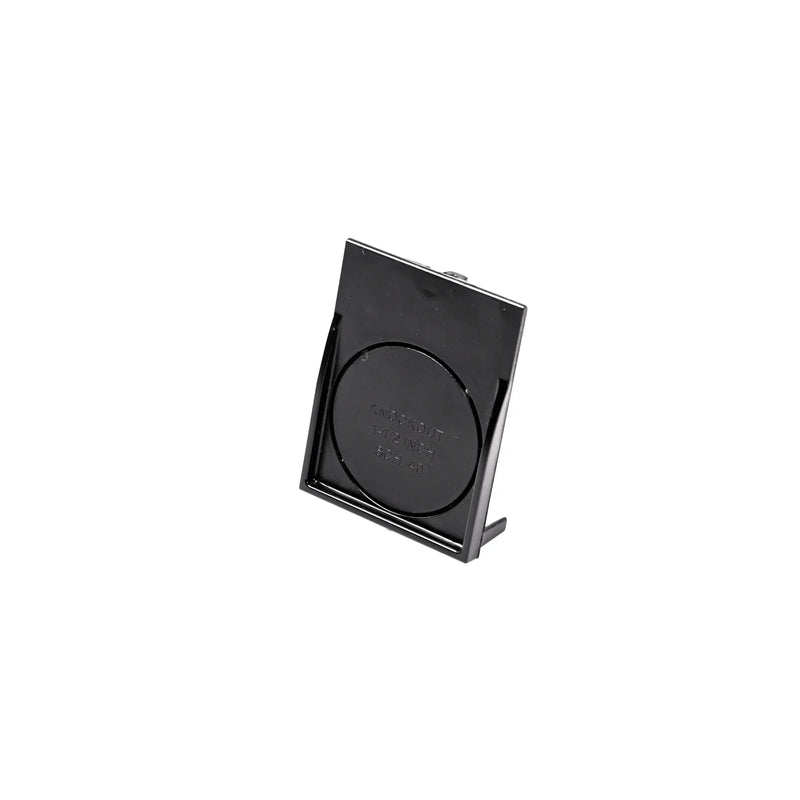

Nds 9247 Slim Channel End Cap/Outlet

Product Description

The NDS 9247 Slim Channel End Cap/Outlet closes either end of the Slim Channel Drain when used as an end cap, and connects the Slim Channel Drain to 1-1/2" Sch. 40 pipe when used as an end outlet. The Slim Channel Drain system collects light flows of water from pool and spa areas, concrete and paver patios, and walkways.

• Closes either end of Slim Channel Drain or connects to 1-1/2" Sch. 40 pipe.
• Collects light flows of water from pool & spa areas, concrete & paver patios, and walkways.
• Knockout fits 1.5" SCH 40 pipe

Product Highlights

The NDS Slim Channel End Cap/Outlet offers a convenient knock-out option to connect to 1.5 inch SCH 40 pipe. It is made of PVC material and measures 2.25" wide and 3" in height.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 9247
• Country of Origin: China

Technical Specifications

• Use With: NDS Slim Channel Accessories
• ADA Compliant: Yes
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Grate Width: 2.25" for NDS Slim Channel
• Grate Thickness: 0.25" with T-Top
• Manufacturer: NDS
• System: Slim Channel
• Grate Pattern: SLOTTED
• Grate Pattern Style: SLOTTED
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Residential
• Brand: NDS
• Model: 9247
• Country of Origin: China
