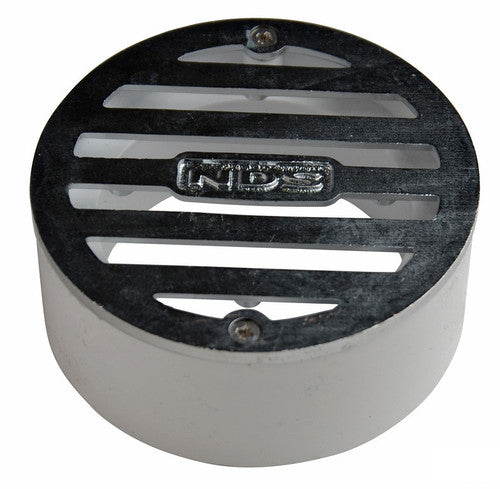

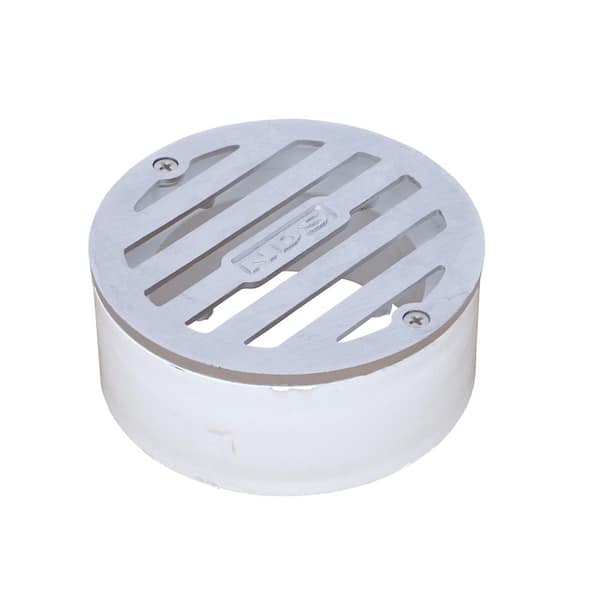

Nds 915SC 3 in. Round Grate with Collar

Product Description

The NDS 915SC 3 in. Round Grate protects your drainage system by blocking debris. Ideal for draining light water flows from small lawns, landscaped areas, patios, and walkways. It works with connected drain pipe to capture and convey excess surface water for proper release downstream.

• Protects drainage systems by blocking debris
• Ideal for draining light water flows
• Works with connected drain pipe to capture and convey excess surface water

Product Highlights

This round grate is designed to keep leaves and debris out of the drainage system. Built to stand up to the elements.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 915SC
• Country of Origin: USA

Technical Specifications

• Grate with collar height: 1-3/8 in.
• Grate with collar diameter: 3-1/4 in.
• Grate openings width: 3/16 in.
• Open surface area: 2.44 square inches
• Flow Rate: 3.20 GPM
• ADA Compliant: Yes
• Heel Proof: Yes
• Fits: 2" PVC Schedule 40 Pipe, 3" Sewer & Drain Fittings
• Material: Satin chrome grate with UV stabilized PVC collar
• Load rating: Recommended for pedestrian traffic (Class A). Not intended for vehicular loads
• Part Number: 915SC
• Description: 3 in. Round Grate with Collar, Connects to 2 in. Drain Pipe and 3 in. Drain Fittings, Satin Chrome and Plastic
• Applications: Protects the drainage system by blocking debris from entering and potentially clogging the pipeline. Ideal for small lawns, landscaped areas, patios, and walkways. Fits drain pipe or fitting with a soil-tight fit; some models fit 6 in. round Spee-D catch basin

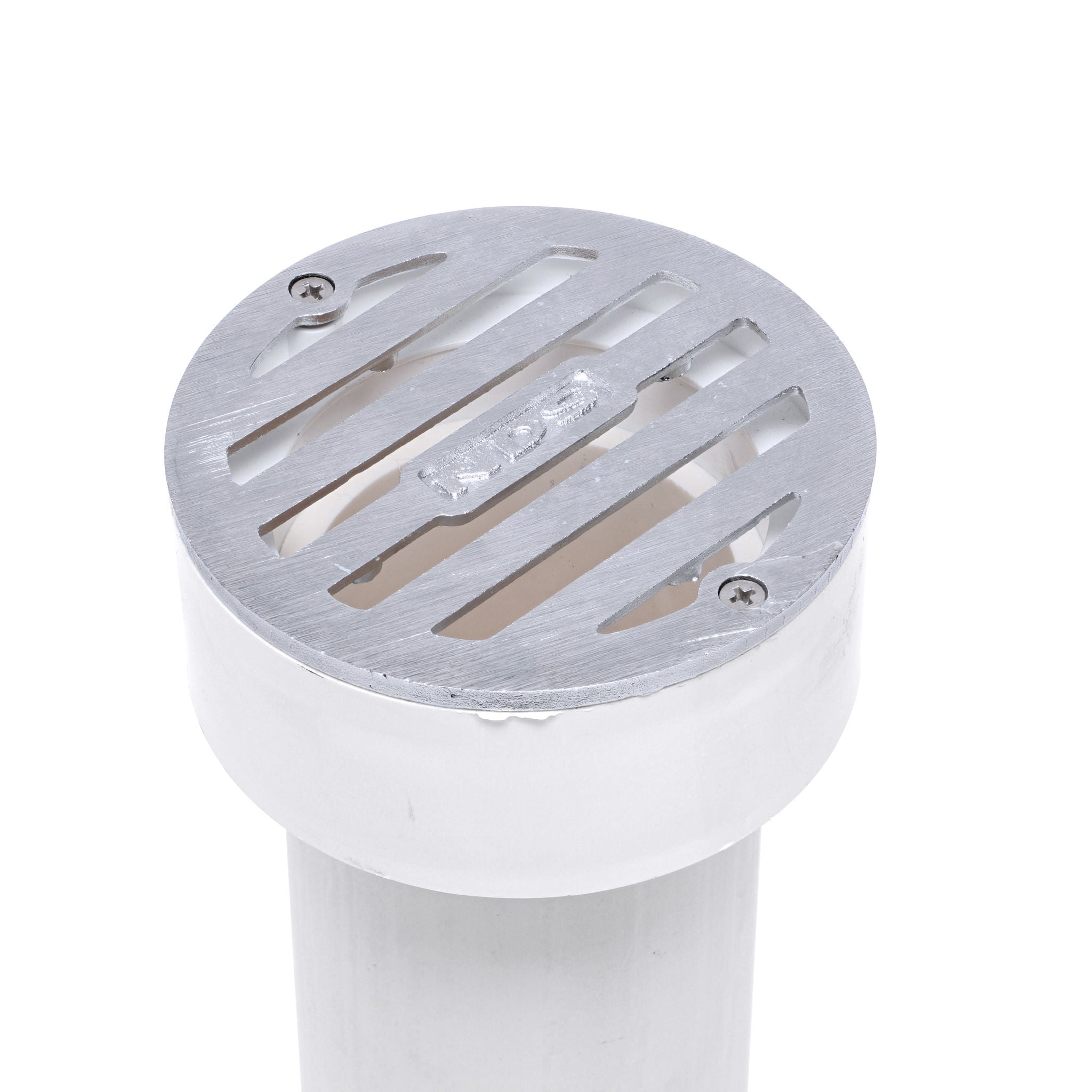

• Installation & Maintenance: Works with connected drain pipe or fitting to capture and convey excess surface water for proper release downstream. Removable grate makes it easy to access pipe for cleaning and maintenance
