Nds 900DSG 9 inches Downspout Defender Grate

Product Description

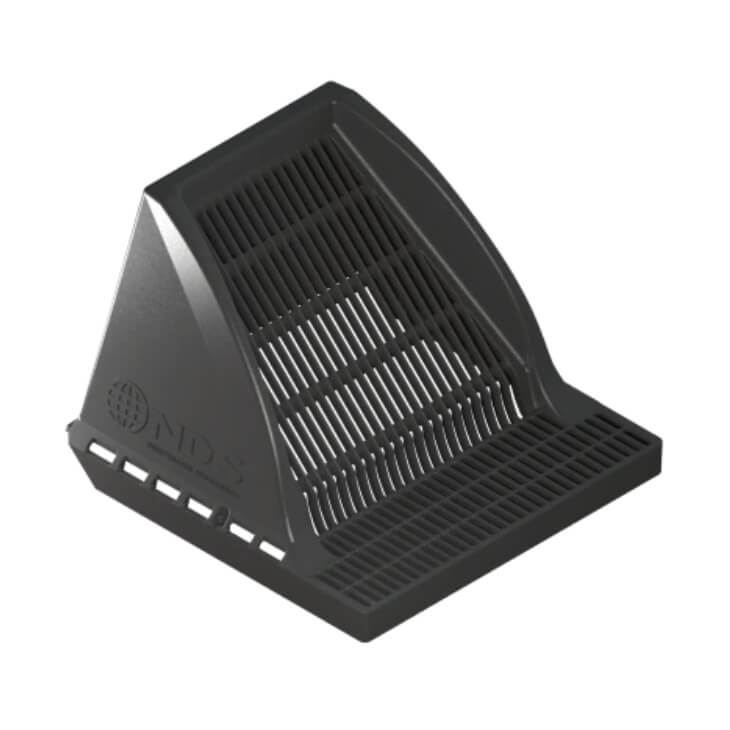

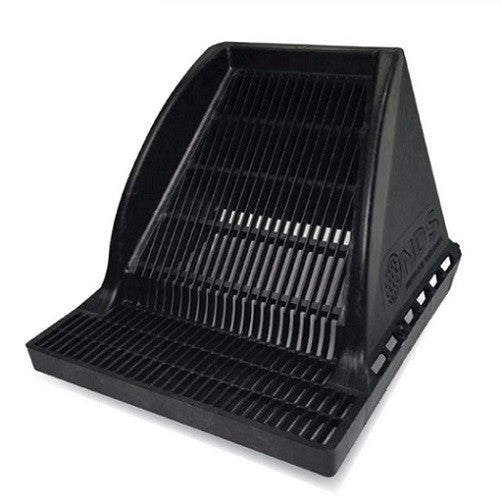

The NDS 900DSG 9" Downspout Defender Grate prevents debris from entering and clogging the drainage system. Its angled grate face accepts heavy flows, while the sidewalls prevent splashing. It is designed for downspouts 2" to 4" round or square and fits NDS 9" catch basins, risers, and low-profile adapters.

• Self-cleaning
• Prevents debris from entering and clogging drainage systems
• Sidewalls prevent splashing

Product Highlights

The downspout defender grate captures more stormwater runoff than traditional flat drain grates. Protect your drain from leaves, needles, and twigs that fall onto the rooftop.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 900DSG

Technical Specifications

• Size [Features]: 9"
• Shape [Features]: Square
• Material [Features]: HDPE
• Product Type [Features]: Grate
• Material: UV Protected High-Density Polyethylene (HDPE)
• Use with: NDS 9" Catch Basins, 9" Catch Basin Risers
• Allows: debris to slide off the surface and reflects Debris Before it Enters the system
• ADA Compliant: ADA Compliant
• Reduces: splashing at downspouts
• Part number: 900DSG
• Fits NDS 9 x 9" Catch Basin: Yes
• Fits NDS 9" Risers: Yes
• Fits NDS 9" Low Profile Adapter: Yes
• Length: 9"
• Width: 9"
• Height: 6.5" installed
• Actual grate dimension: 8 7/8" x 9" x 6 7/16" (5 5/8" Installed)
• Grate Material: High Density Polyethylene (HDPE)
• Open surface area: 36.8 square inches
• Fits: NDS 9" x 9" Catch Basin w/Two Openings (Each), NDS 9" x 9" Catch Basin w/Four Openings (Each), NDS 9" x 9" x 6" Catch Basin Riser Extension, NDS 9" x 9" Low Profile Adapter
