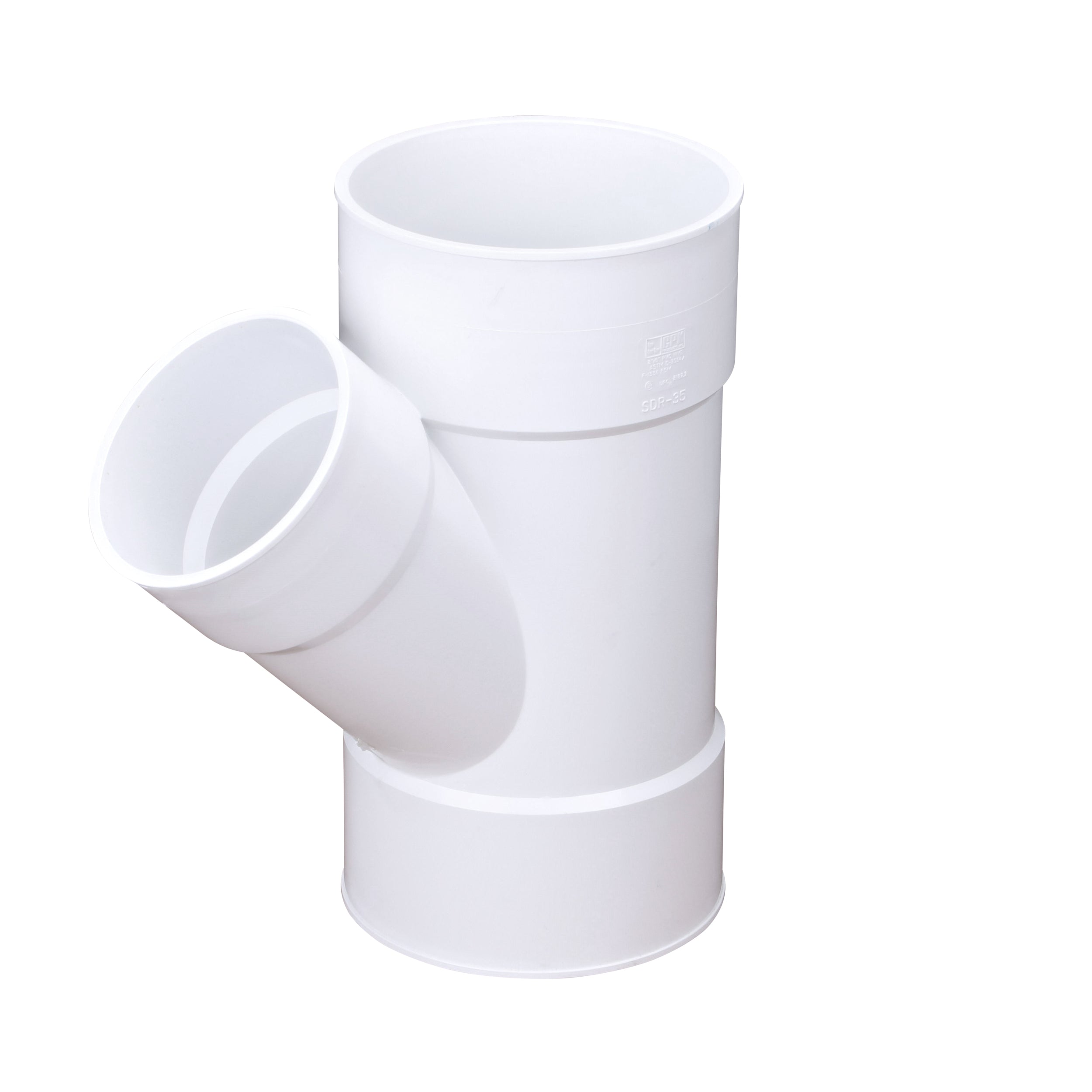

Nds 86P08 Pvc 45 Degree Wye SDR-35 8x6 Inches

Product Description

The NDS 86P08 is a solvent weld PVC 45 degree wye fitting manufactured to SDR-35 standards. It provides a 45 degree branch connection for gravity-flow drainage systems, routing flow from an 8-inch main line to a 6-inch branch line. The SDR-35 wall thickness rating makes this fitting appropriate for sewer and drain applications operating at typical residential and light commercial burial depths. Licensed plumbers and drainage contractors install this type of fitting when constructing or extending underground sewer laterals or storm drain systems.

This fitting is designed for underground gravity sewer and storm drainage piping systems where a reduced-diameter branch connection is required. The 45 degree angle of the wye reduces turbulence compared to a 90 degree tee, making it a preferred choice for main-to-branch transitions in sanitary sewer laterals. It is suited for residential, commercial, and municipal drainage installations where SDR-35 PVC pipe is specified.

Key Features

• SDR-35 PVC construction rated for gravity sewer and drain service
• 45 degree wye configuration reduces flow turbulence at branch connections
• 8-inch main by 6-inch branch outlet sizing for reduced-diameter transitions
• Solvent weld socket ends for a permanent, leak-resistant joint
• Compatible with standard SDR-35 PVC pipe and fittings of matching size

Compatibility

Designed as an OEM-style replacement and new-installation fitting for SDR-35 PVC gravity sewer and drain piping systems using 8-inch main and 6-inch branch pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local plumbing code. Power down any pump systems and ensure the line is depressurized and drained before cutting into an existing sewer line. Use a PVC primer and solvent cement rated for SDR-35 pipe when making solvent weld joints, and allow full cure time before backfilling. Proper bedding and compaction around the fitting is required to prevent joint stress during backfill.

Technical Specifications

• Material: PVC
• Standard: SDR-35
• Connection Type: Solvent Weld
• Configuration: 45 Degree Wye
• Main Line Size: 8 inches
• Branch Outlet Size: 6 inches
• Weight: 7.41 pounds
• UPC: 052063012834

Standard Information

• Brand: NDS
• Manufacturer Part Number: 86P08
