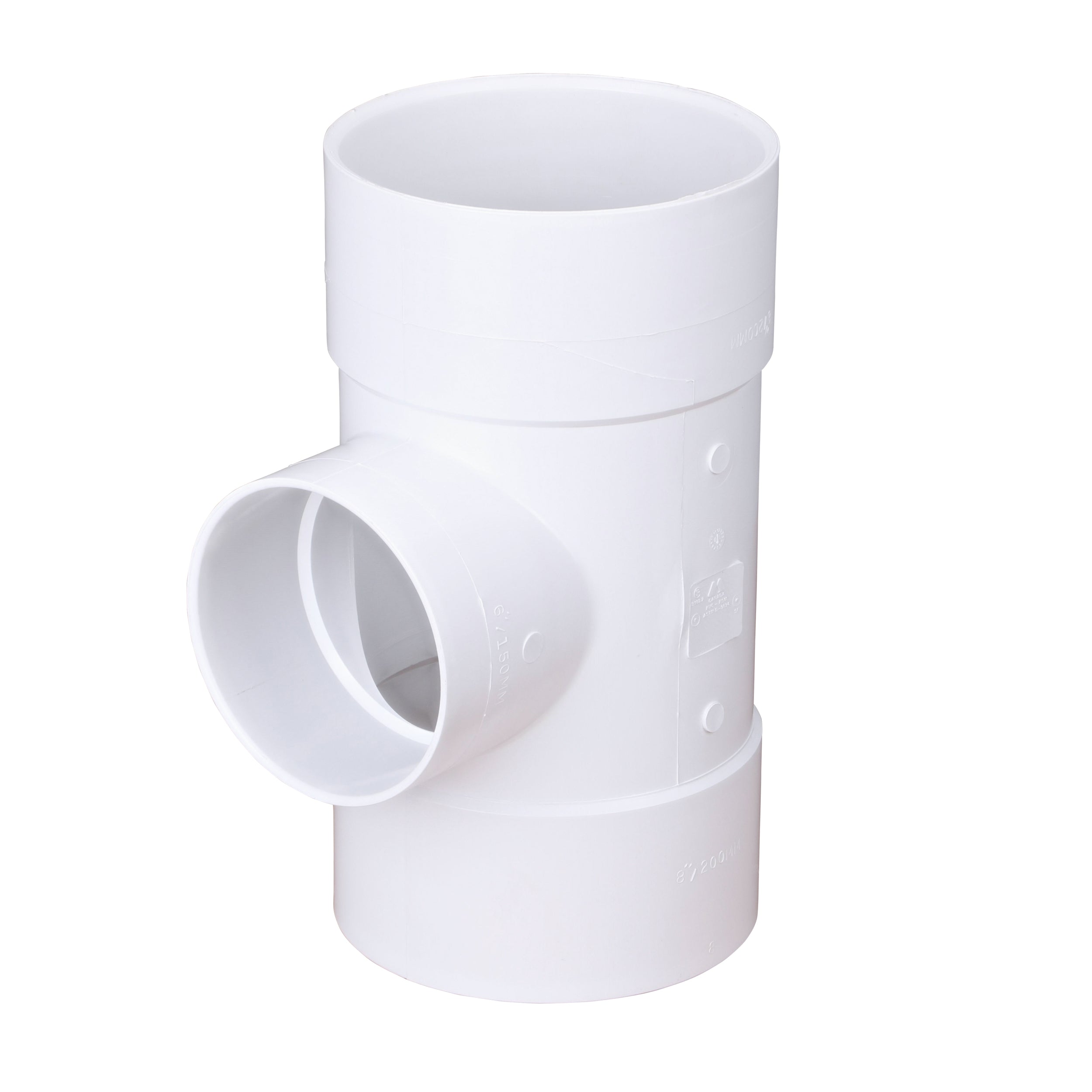

Nds 86P01 Pvc Straight Tee SDR-35 8x6 Inches

Product Description

The NDS 86P01 is an 8 x 6 inch SDR-35 PVC straight tee fitting joined by solvent weld. It is used to connect a 6-inch branch line into an 8-inch mainline run in gravity-flow drainage systems. The SDR-35 wall thickness rating makes it suitable for sewer and drain applications where controlled pipe stiffness is required. The fitting weighs 6.99 pounds and is manufactured from PVC. Licensed plumbers and drainage contractors install this fitting in underground and above-grade collection systems.

The NDS 86P01 is suited for residential and commercial gravity-flow sewer, storm drain, and subsurface drainage installations. It handles transitions from a main 8-inch trunk line to a 6-inch lateral branch without requiring an adapter. Typical applications include municipal-style site drainage, building sewer laterals, and detention or retention basin outlet piping where SDR-35 PVC is the specified material.

Key Features

• SDR-35 wall rating for gravity sewer and drain service
• Solvent weld socket ends for a permanent, leak-resistant joint
• 8-inch mainline with 6-inch branch outlet for reducing tee configuration
• PVC construction resists corrosion and root intrusion
• Order increment of 1 for single-unit purchasing

Compatibility

Designed as an OEM-style replacement and standard fitting for SDR-35 PVC gravity sewer and drain piping systems using 8-inch mainline and 6-inch branch pipe.

Installation Notes

Installation of SDR-35 PVC tee fittings is performed by licensed plumbers or drainage contractors in accordance with the International Plumbing Code and applicable local sewer authority standards. Shut off flow and dewater the line before cutting into an existing mainline. Clean and dry all socket surfaces, apply PVC primer, and follow the solvent cement manufacturer's open time and cure schedule before restoring flow. Do not use this fitting on pressurized supply lines.

Technical Specifications

• Material: PVC
• Pipe Standard: SDR-35
• Connection Type: Solvent Weld
• Mainline Size: 8 inches
• Branch Size: 6 inches
• Weight: 6.99 pounds
• UPC: 052063002668

Standard Information

• Brand: NDS
• Manufacturer Part Number: 86P01
