Nds 8512 Micro Channel Spigot Side Outlet 1-1/2 inches Sch40

Product Description

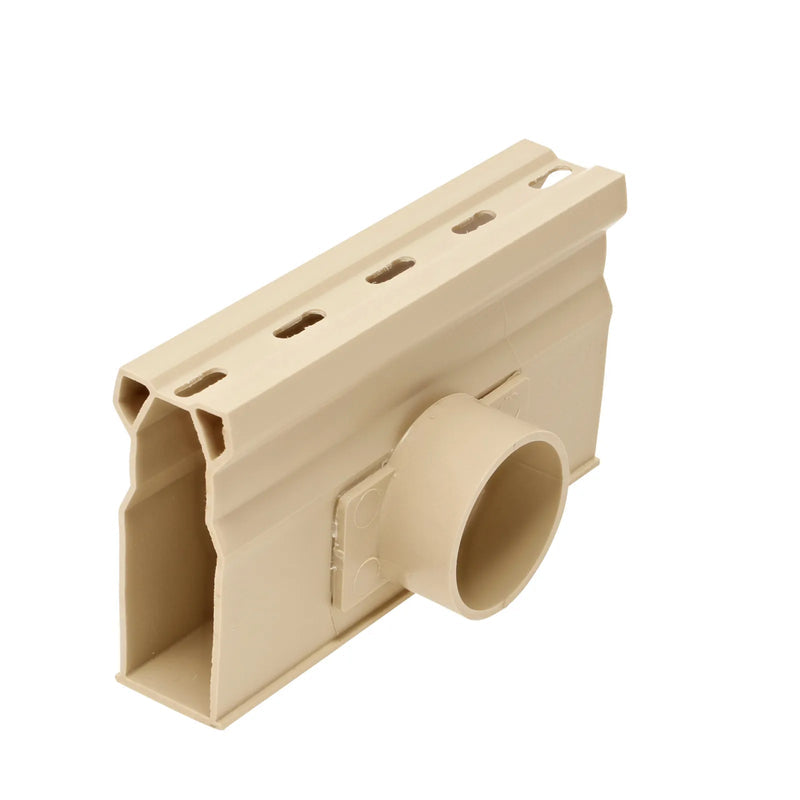

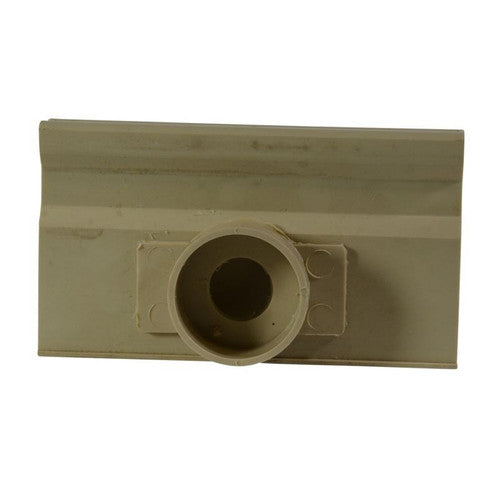

The NDS 8512 Side Outlet is constructed from durable PVC. It features a spigot on the side which connects to 1-1/2 in. Sch. 40 pipe and hub which connects to 1-1/4 in. Sch. 40 pipe. It is engineered to handle pressures from 1 to 60 psi. Use with Micro Channel drainage system to collect and direct water to drain pipes.

• Drain, grate, and side outlet with spigot/hub pipe connection is one integrated part
• Component connects Micro Channel Drain system to 1-1/4 in. & 1-1/2 in. Sch. 40 drain pipes and can be solvent-welded with PVC glue for a water-tight connection
• Durable PVC construction for long-lasting performance

Product Highlights

The NDS 8512 side outlet is a reliable component for your drainage system needs. Designed for use with NDS Micro Channel drains.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 8512

Technical Specifications

• Additional Information: 3/16 x 5/8 in Grate Opening, 1 sq-in/ft Open Surface Area
• Color: Sand
• Connection Type: Spigot
• Fitting Size: 1-1/2 in
• Material: PVC
• Overall Height: 3-1/4 in
• Overall Length: 6 in
• Overall Width: 1-1/4 in
• Pressure Rating: 1 to 60 psi
• Schedule Rating: SCH 40
• Suitable For Use With: Micro Channels
