Product Description

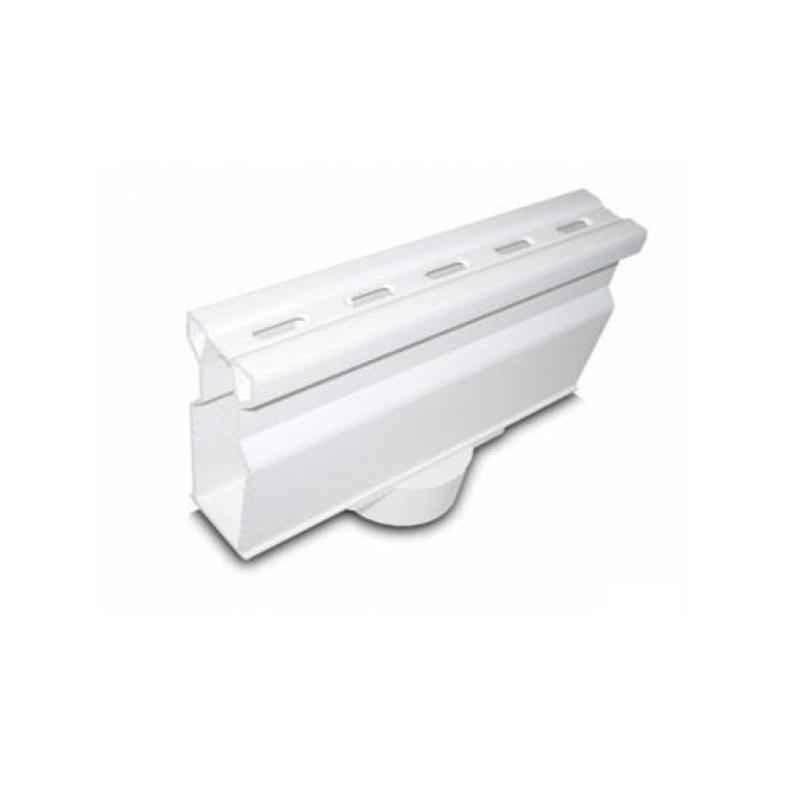

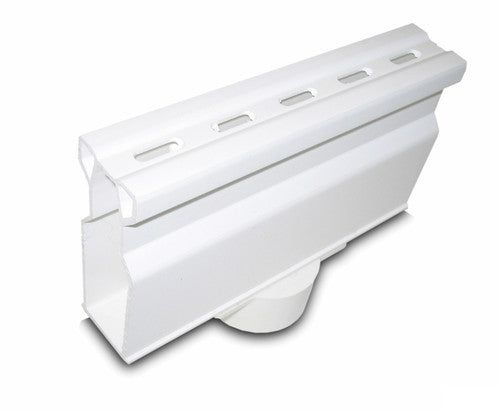

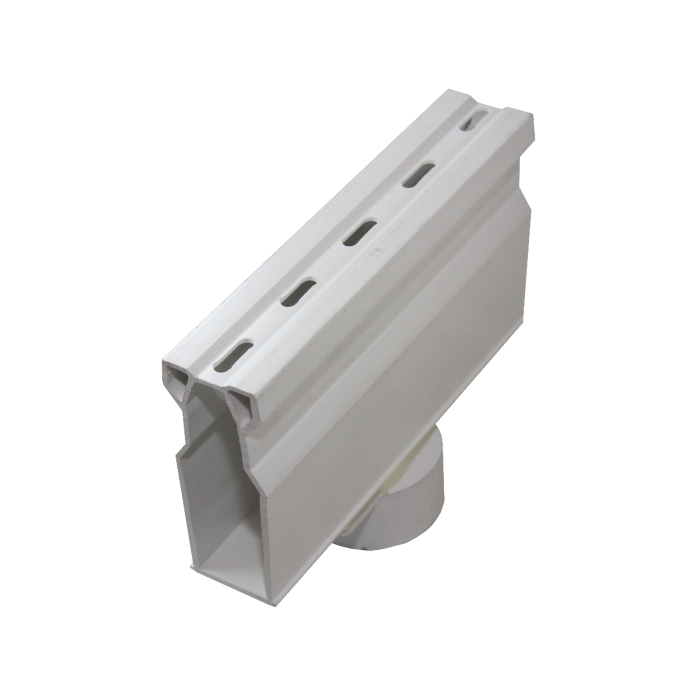

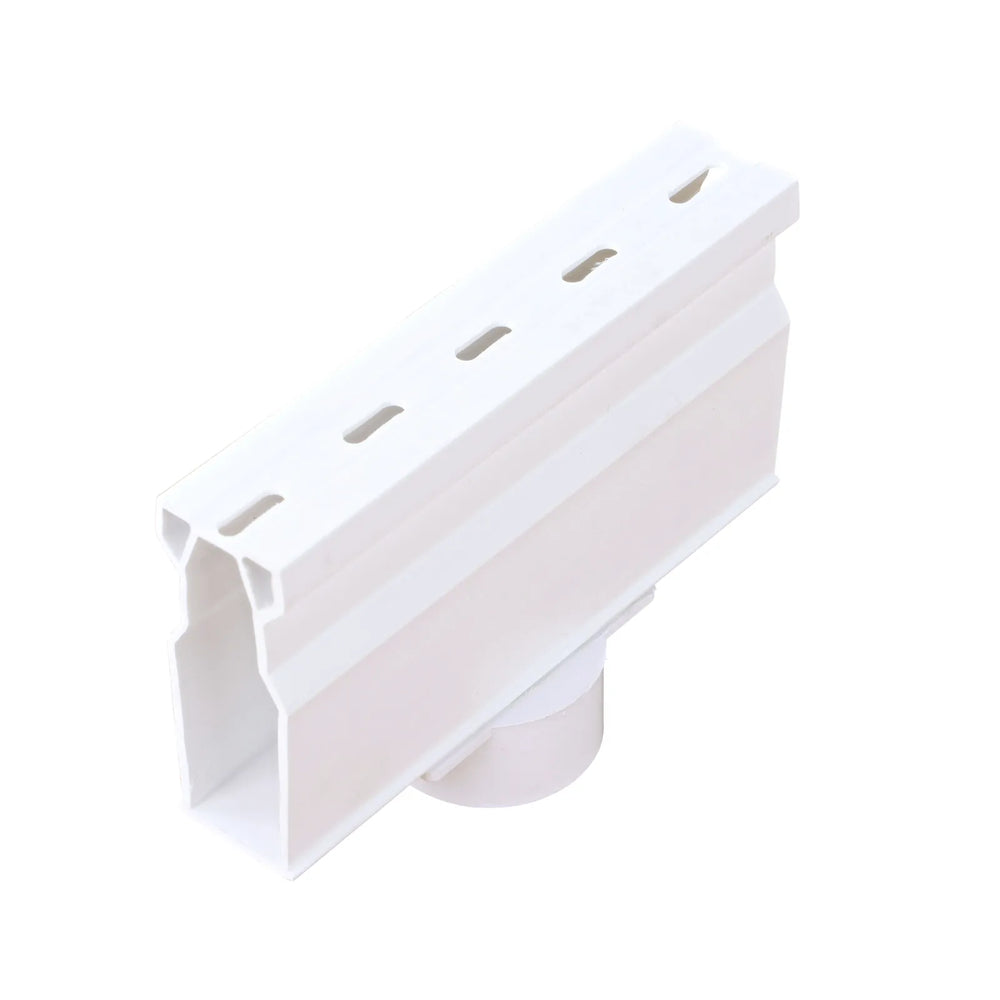

The NDS 8501 Micro Channel Drain with Bottom Outlet comes as one integrated piece which includes channel, drain grate, and bottom outlet. Features a spigot which connects to 1-1/2 in. Sch. 40 pipe and hub which connects to 1-1/4 in. Sch. 40 pipe. It is made of polyvinyl chloride (PVC) treated with UV inhibitors. Micro Channel Couplings must be used to connect to Micro Channel.
- Drain, grate, and bottom outlet with spigot/hub pipe connection is one integrated part
- Component connects Micro Channel Drain system to 1-1/4 in. & 1-1/2 in. Sch. 40 drain pipes and can be solvent-welded with PVC glue for a water-tight connection
- Optimize your Micro Channel drainage system with outlets along the run.
Product Highlights
Integrated drain, grate, and bottom outlet for Micro Channel drainage systems. Connects to 1-1/4 in. and 1-1/2 in. Sch. 40 drain pipes. Made of UV-inhibited PVC.
Product Information
Standard Information
-
Brand: NDS
-
Manufacturer Part Number: 8501
Technical Specifications
-
SKU: 8501
-
Channel Width: 1.25"
-
Traffic Rating: Class A pedestrian (foot/bike/wheelchair)
-
Material & Colors: UV-stabilized PVC in white, sand, or gray
-
Design: Channel + grate molded together (all-in-one)
-
Accessories: Elbows, tees, outlets, end caps
-
Typical Uses: Pool decks, spas, patios, walkways, entries, planter borders
-
Grate Opening: 3/16" x 5/8
-
Open Surface Area: 1 Sq. Inches per foot
-
GPM: 4.30
-
Outlet: 1-1/2" Sch. 40 Spigot End Outlet
-
Load Rated: Class A Load Rated (1-60 PSI)
