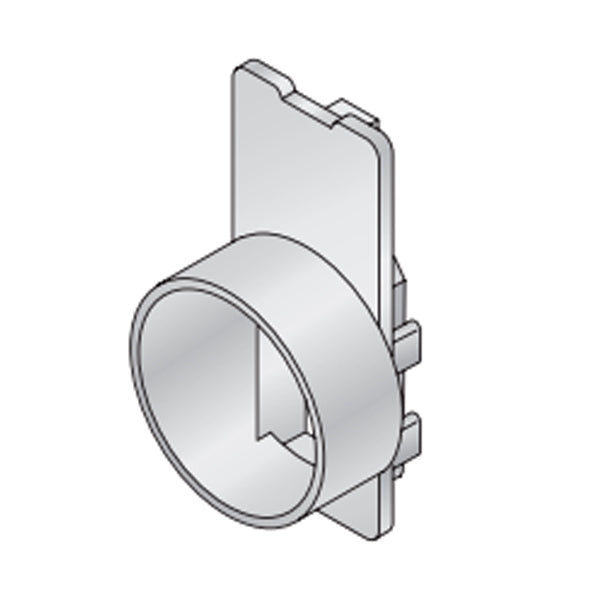

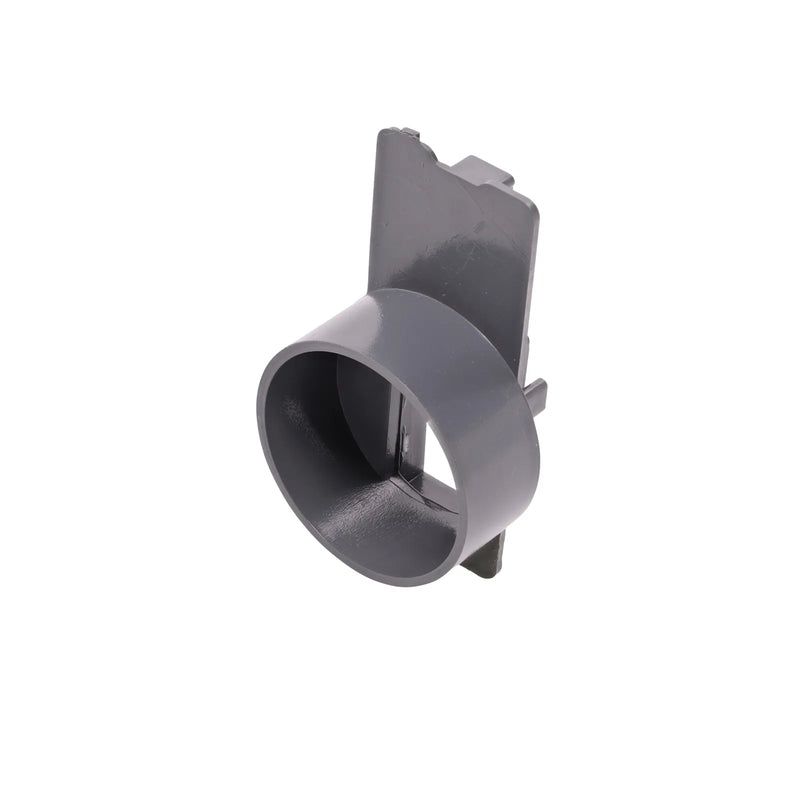

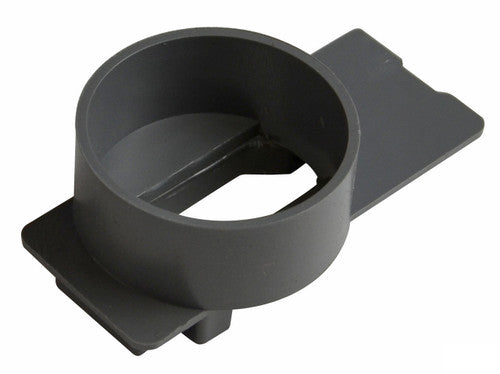

Nds 8463 Micro Channel End Outlet 1-1/2 in.

Product Description

The NDS 8463 Micro Channel End Outlet connects Micro Channel drains to 1-1/4" and 1-1/2" Schedule 40 drain pipes. Constructed from durable PVC, it is UV-stabilized for outdoor use and chemical resistant. Designed for low-profile drainage around pools, patios, and walkways, it provides a secure transition from channel to pipe.

• One end snaps into end of Micro Channel
• One end fits into 1-1/2" PVC Schedule 40 fittings
• Durable PVC construction ensures long-lasting stormwater management

Product Highlights

The NDS Micro Channel End Outlet is ideal for pedestrian, bicycle, and wheelchair traffic areas where low-profile drainage is required.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 8463

Technical Specifications

• Material: UV-stabilized PVC
• Compatibility: Fits Micro Channel drains and connects to 1-1/4" and 1-1/2" Sch. 40 spigot drain pipes.
• Installation: Attaches to either end of the channel; solvent-weld with PVC solvent cement for a watertight joint.
• Dimensions & Flow: Approximately 3-1/4" length with a 1-1/4" width; tested flow rate ~7.37 gpm.
• Color: Gray
• Includes: Micro Channel Drain End Outlet Featuring a Spigot & Hub
• Item: Side Outlet
• Type: Fitting
• Series: Micro Series
• Suitable For Use With: Channel Drain & Integrated Grate
• Connection Size: 1-1/2 in.
• Connection Type: Spigot
• Minimum Pipe Size: 1-1/4 in.
• Maximum Pipe Size: 1-1/2 in.
• Regulated: No
• Brand Name: NDS
