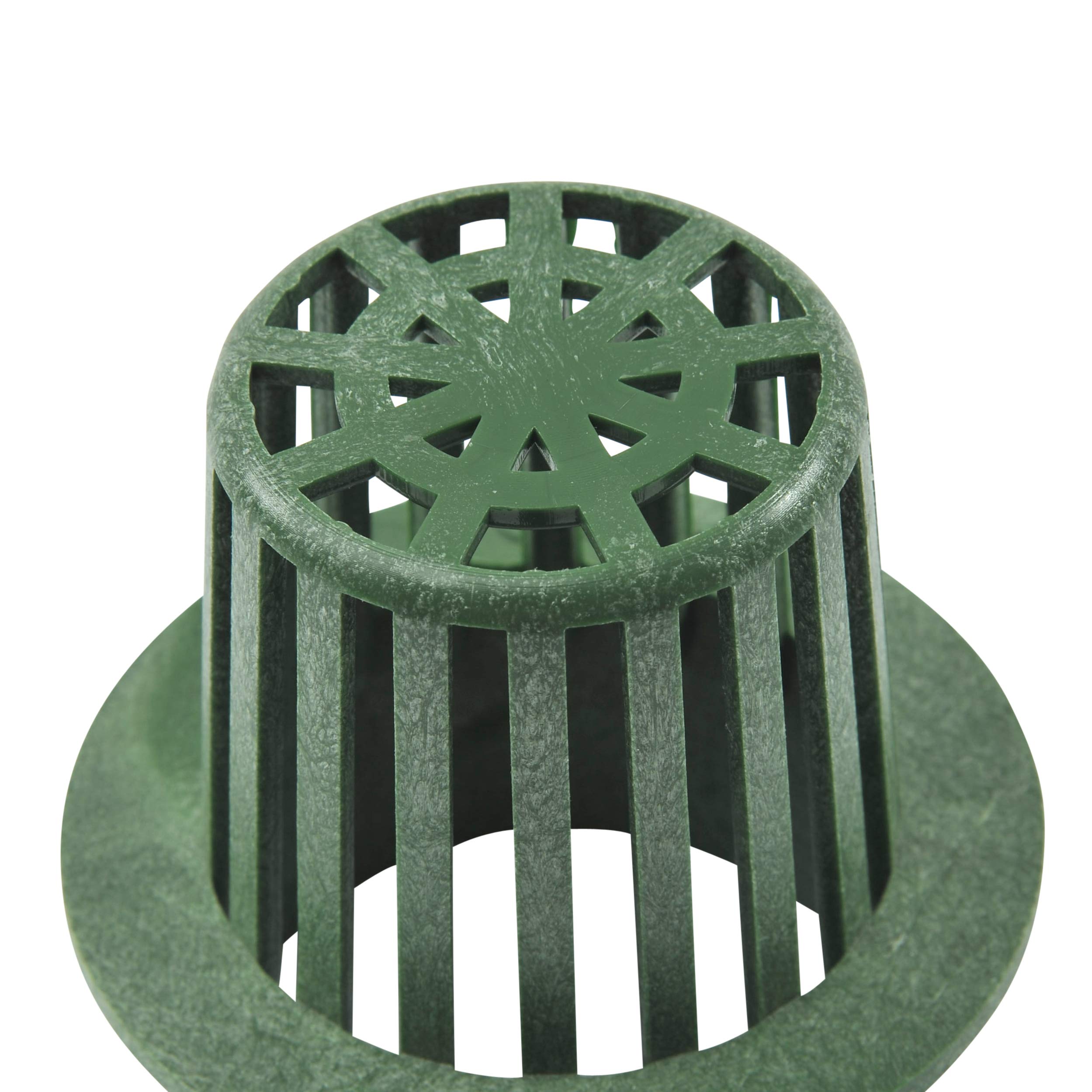

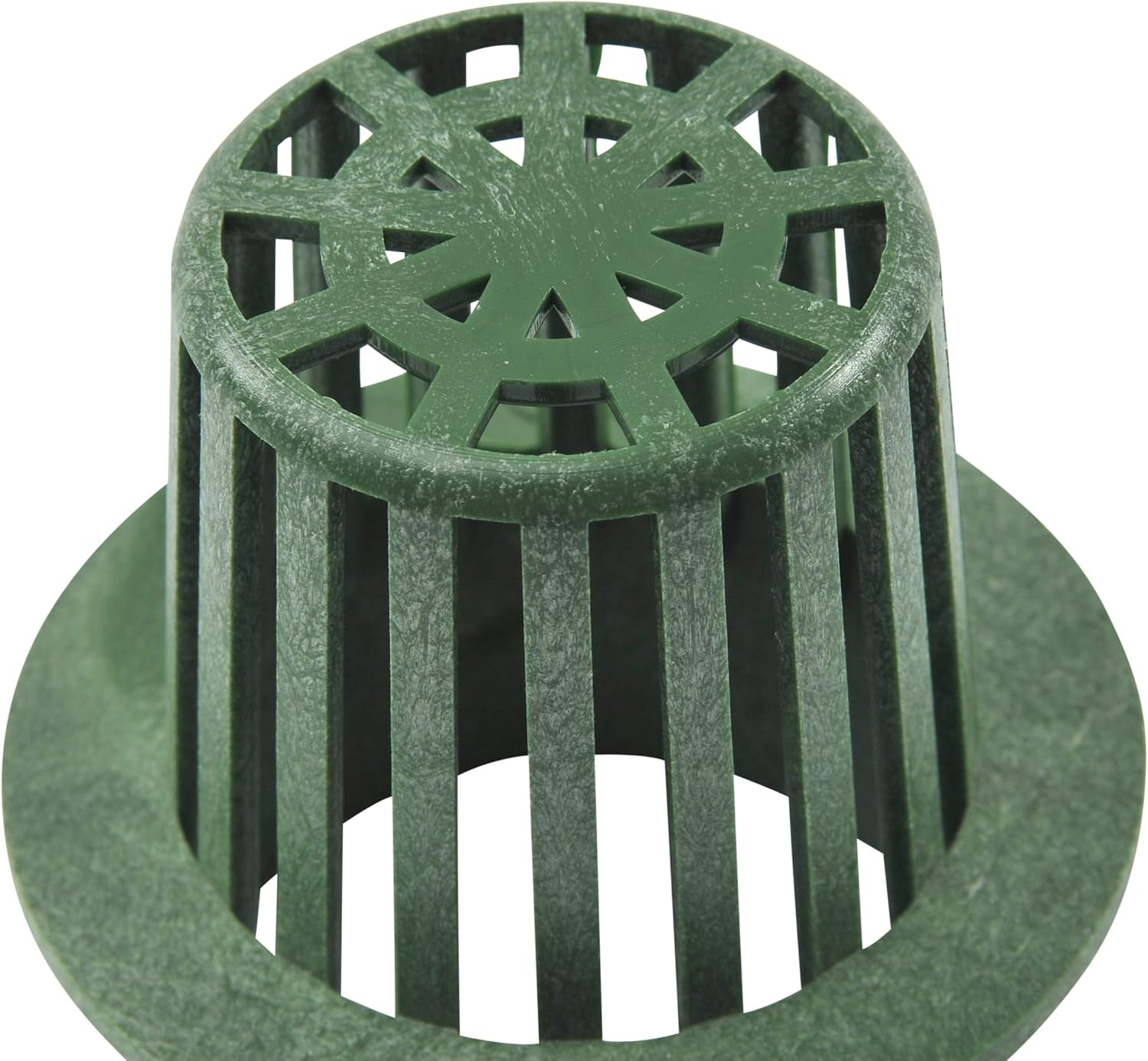

Nds 70 Atrium Grate, fits 3 in. drain pipes & fittings, 3 in.

Product Description

The NDS 70 Atrium Grate fits 3 in. drain pipes and fittings. It is designed to prevent unwanted debris from clogging your drainage system as you drain away light flows of stormwater. The domed design blocks leaves, mulch, and other debris while allowing stormwater to flow through the top.

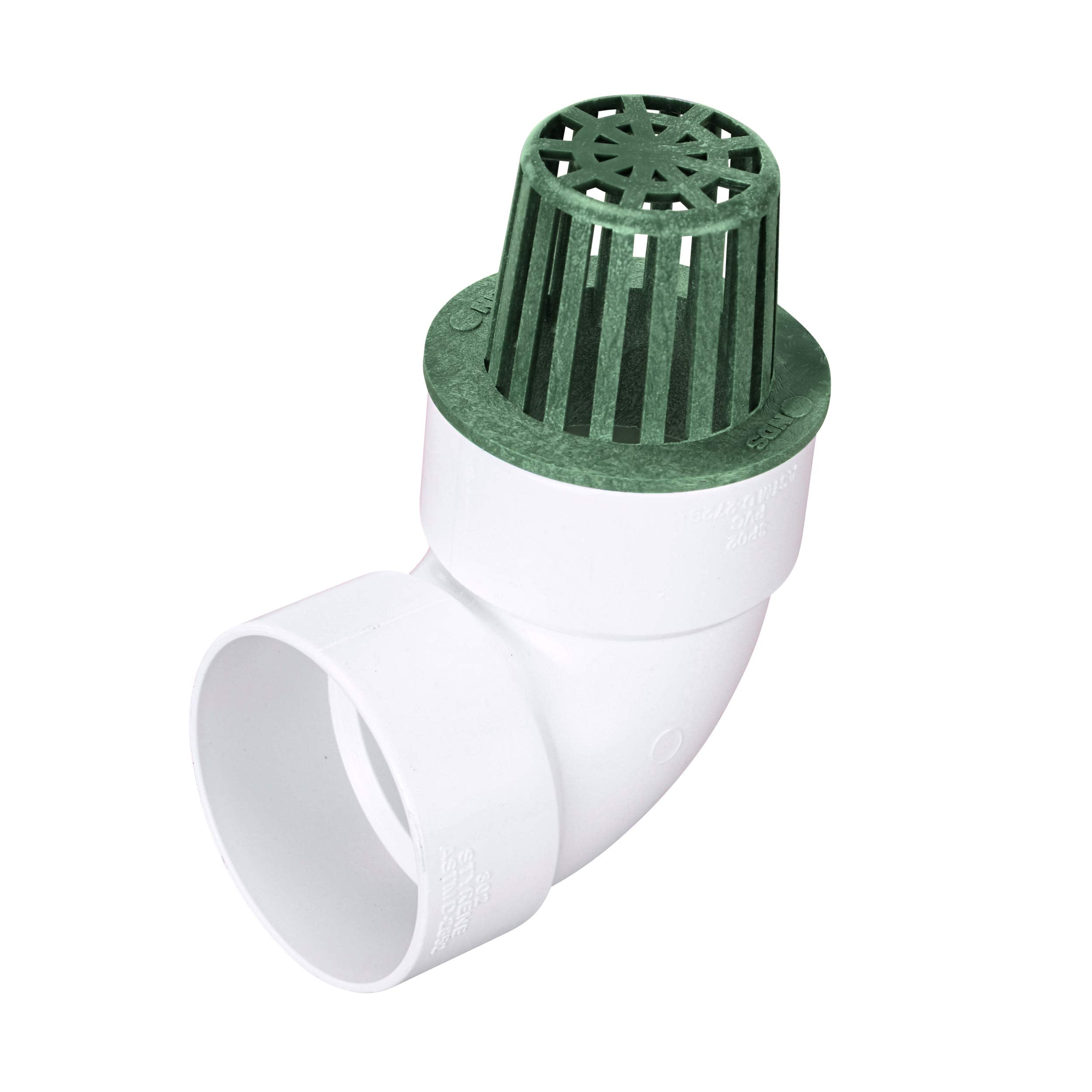

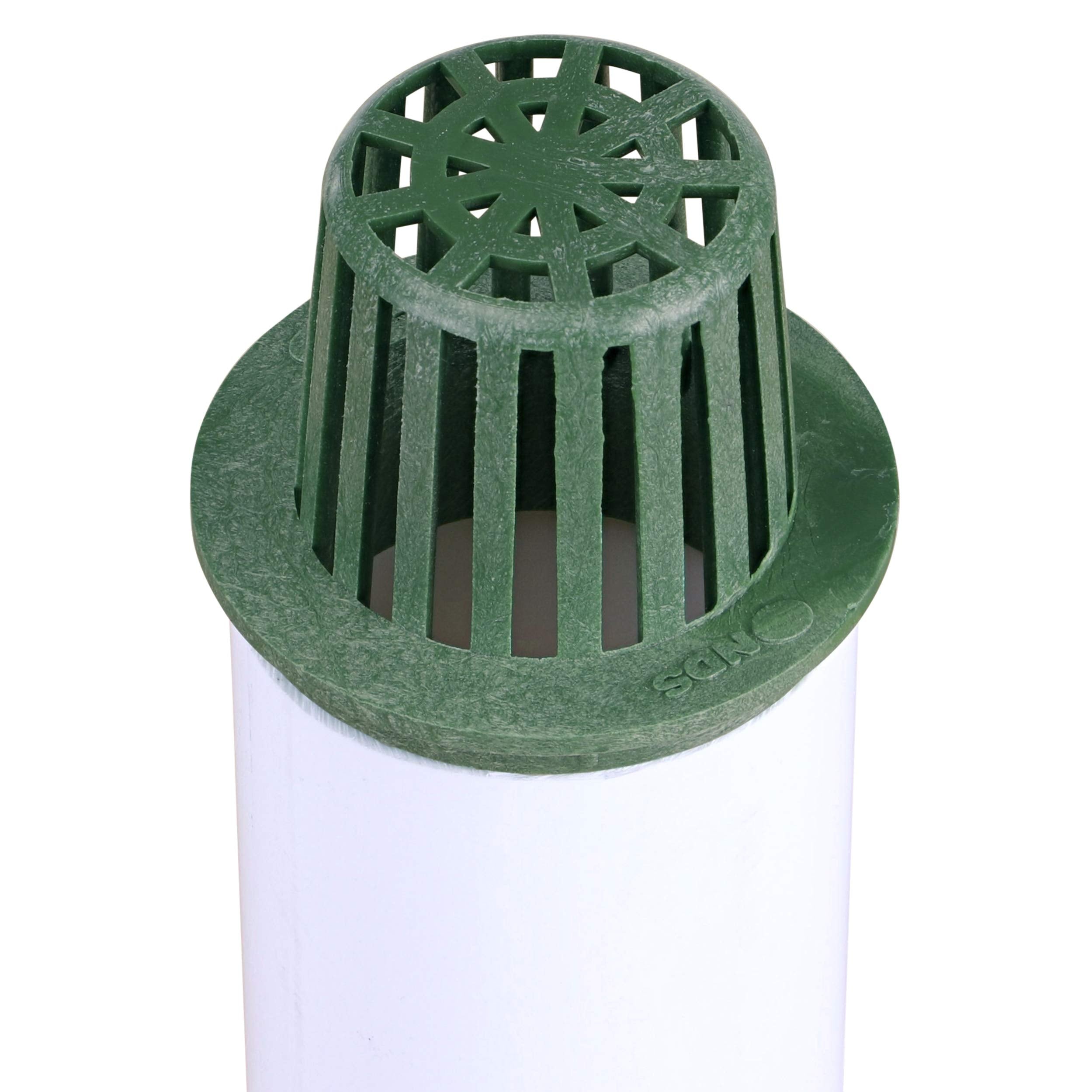

• Fits 3 in. drain pipes & fittings
• Drainage Hole
• BLOCKS LEAVES AND DEBRIS: Block debris from entering and potentially clogging the pipeline by using a grate on top of a drain pipe, while still letting excess surface water flow through

Product Highlights

The atrium grate is ideal for draining light water flows from mulched landscape beds, natural areas, and window wells.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 70
• Country of Origin: USA

Technical Specifications

• Color: Green
• Shape: Round
• Style: 3"
• Pattern: Solid
• Material: Structural Foam Polyethylene
• Mounting Type: Atrium
• Special Feature: Drainage Hole
• Number of Pieces: 1
• Assembly Required: No
• Open surface area: 9.4 sq. in.
• Flow rate: 29 GPM
• Grate height: 3.6875 in.
• Top diameter: 2.25 in.
• Grate opening width: 0.25 in.
• Diameter: 3 in
• Grate Opening Size: 1/4 in

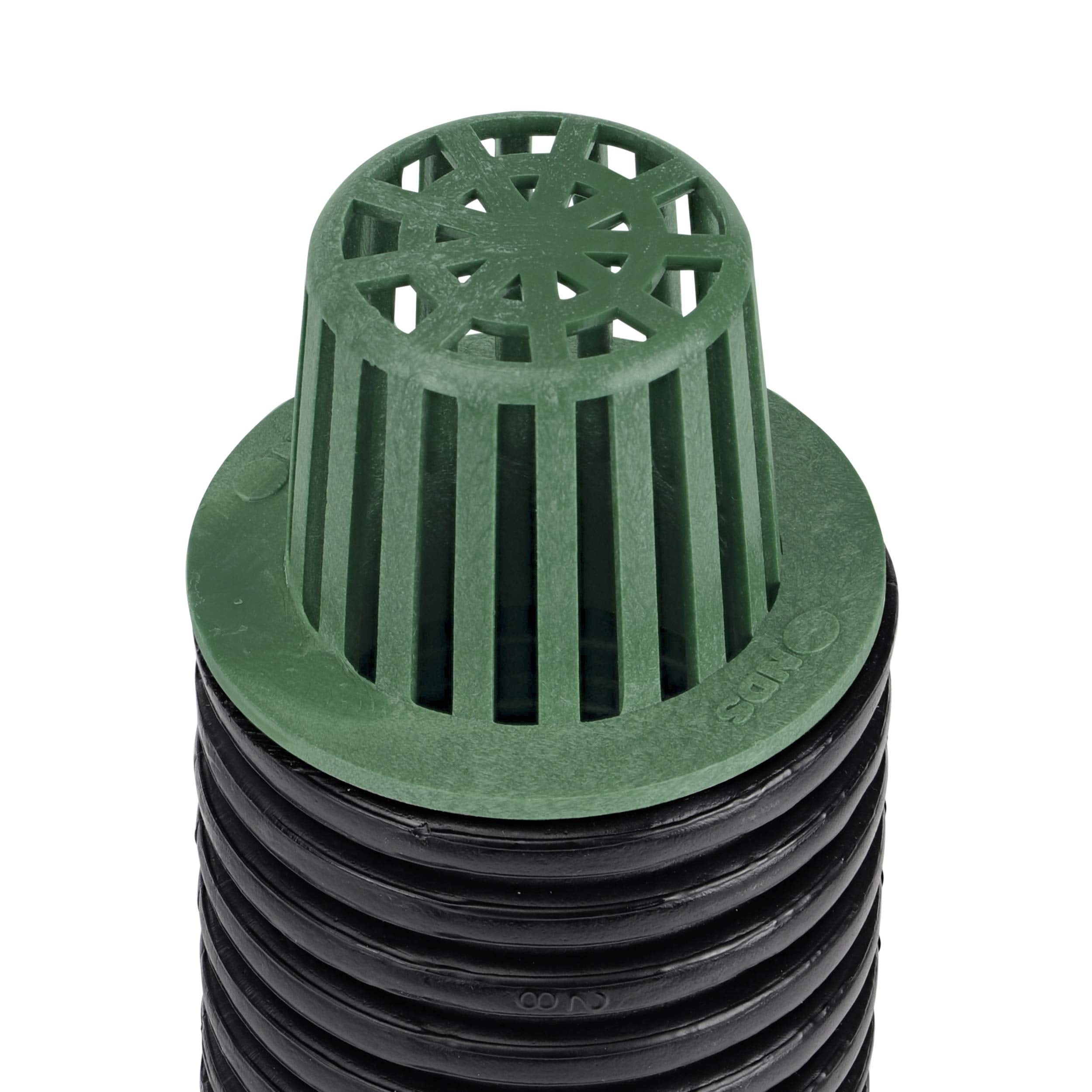

• Fits: 3" sewer & drain pipe, 3" corrugated pipe, and 3" triple-wall pipe
