Nds 546 Spigot End Outlet for 2 inches Sch40 Pipe for Mini Channel

Product Description

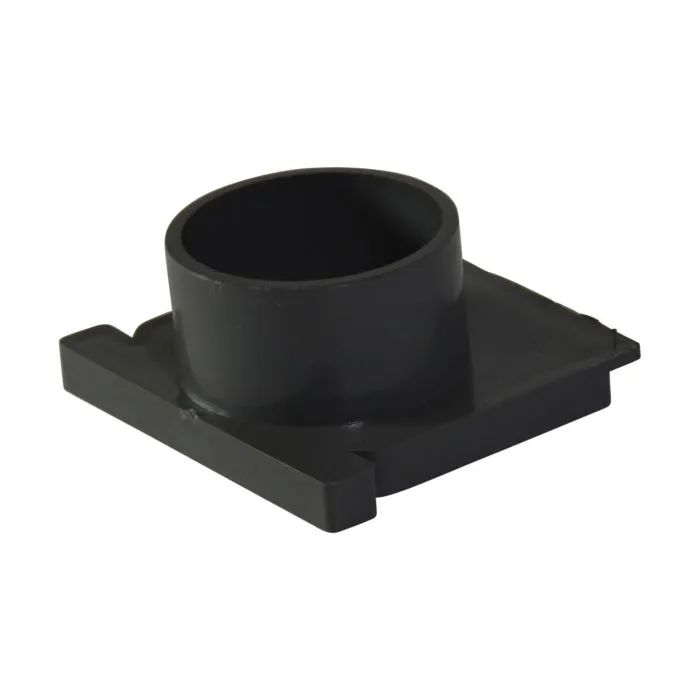

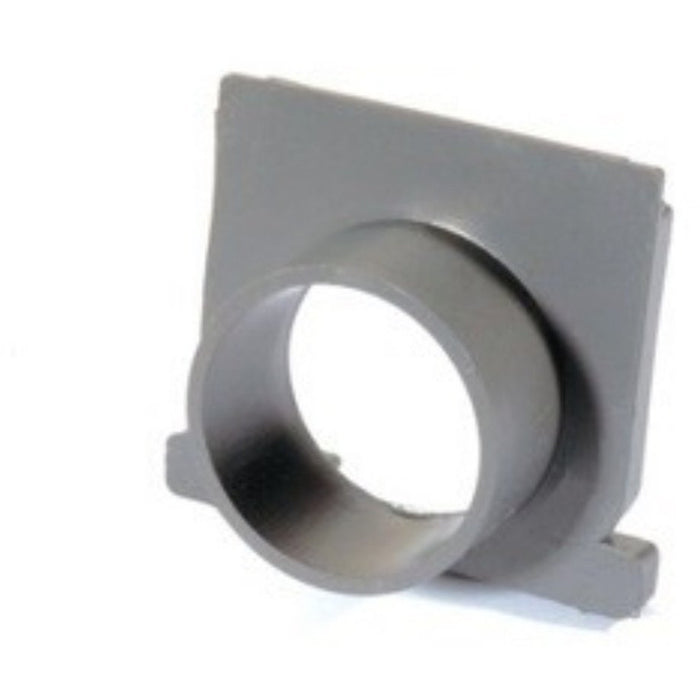

The NDS 546 spigot end outlet connects the Mini Channel Drain to 2" Schedule 40 pipe. Designed for light flows of water from areas such as pools, patios, and walkways, it directs water to drain pipes. It is UV-stabilized for outdoor use and installs with standard PVC solvent-weld techniques.

• Connects Mini Channel Drain to 2" Sch. 40 pipe fitting.
• Solvent-weldable design creates a secure, watertight joint with PVC cement.
• Made with UV inhibitors to protect against sun damage and fading.

Product Highlights

Ideal for residential and light-commercial drainage, the outlet provides a durable termination for Mini Channel systems.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 546

Technical Specifications

• Use With: NDS Mini Channel Drain (#500) and accessories
• Material: UV Protected High-Density Polyethylene (HDPE)
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• ADA Compliant: ADA Compliant
• Grate Width: 2.75" for NDS Mini Channel
• Grate Thickness: 0.38" and 0.38" with T-Top
• Manufacturer: NDS
• System: Mini Channel
• Grate Load Class: Class A and Class B
• Grate Pattern: ACANTHUS
• Grate Pattern Style: NATURE
• Channel Material: Plastic - (PP, HDPE, PE) - Gray
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Decorative, Residential, and Sports Complex - Recreational
