Product Description

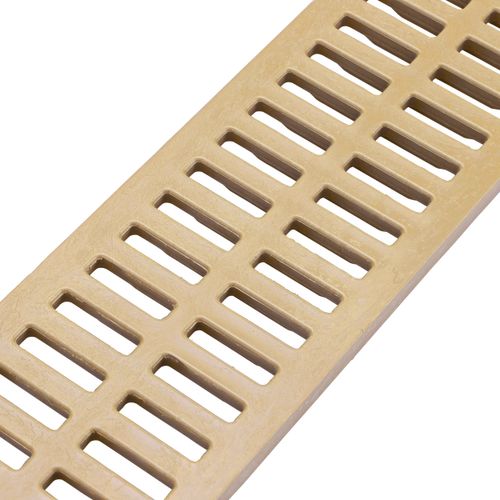

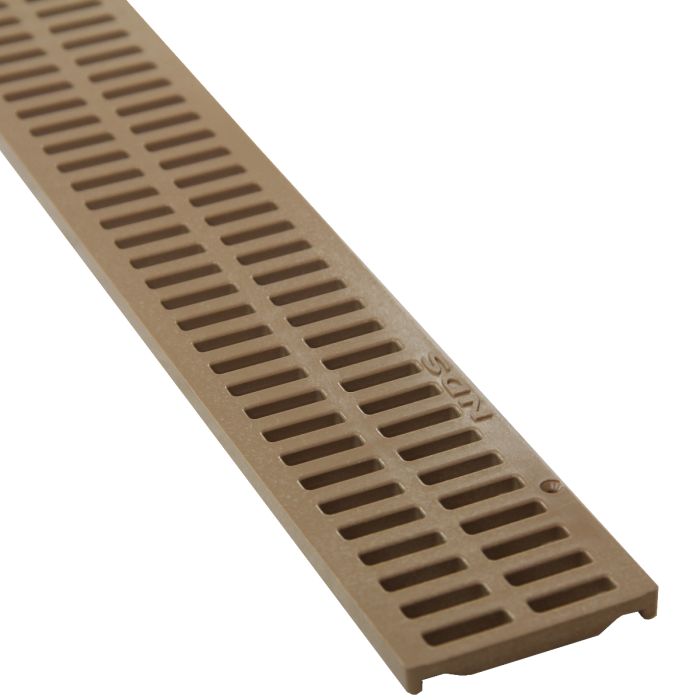

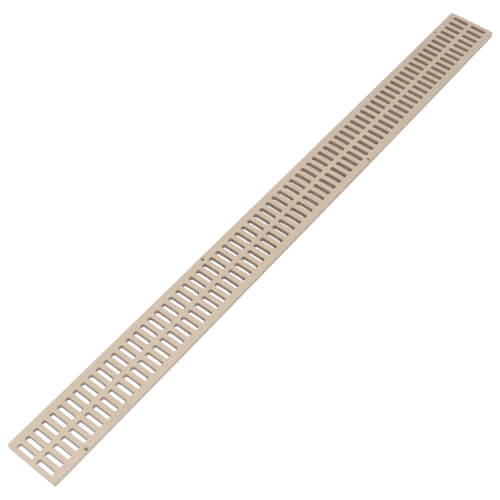

The NDS 544 3 ft. Channel Grate fits with NDS Mini Channel Drain. This grate helps collect and remove excess water from driveways, patios and other outdoor areas. Designed for maximum durability to handle light vehicular traffic. NDS grates are a proven alternative to traditional concrete drains.
- 3' Length
- Designed to match any hardscape
- Collects and removes excess water from outdoor areas
Product Highlights
UV inhibitors prevent fading and cracking. Chemical-resistant, rustproof and maintenance-free, lightweight and easy to install. NDS has a full line of drainage products, fittings and accessories available.
Product Information
Standard Information
-
Brand: NDS
-
Manufacturer Part Number: 544
Technical Specifications
-
Product type: Grates
-
Material: Polypropylene
-
Color: Sand
-
Length: 36"
-
Width: 2.75"
-
Height: 1/2"
-
Length (Feet): 3'
-
Product Type: Grate
-
Use With: NDS Mini Channel Drain (#500)
-
Color Choices: White (#540), Gray (#541), Green (#542), Black (#543), Sand (#544), and Brick Red (#551)
-
Grate Opening: 1/4" x 5/16"
-
Dimensions: 36" LENGTH x 2.75" WIDTH
-
Gallons Per Minute: Will accommodate 30.29 gallons per minute per foot with 1/2
of head
-
ADA Compliant: ADA Compliant
-
Channel Grates: Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8
screws (4 per grate, screws sold separately
-
Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
-
Flow Rate: 30.29 gpm
-
Opening Size: 1/4 x 5/16 in
-
Shape: Flat
-
Special Order Item: N
-
Surface Area: 9.9 sq-in/ft
