Nds 5380 mini channel 90 degree elbow

Product Description

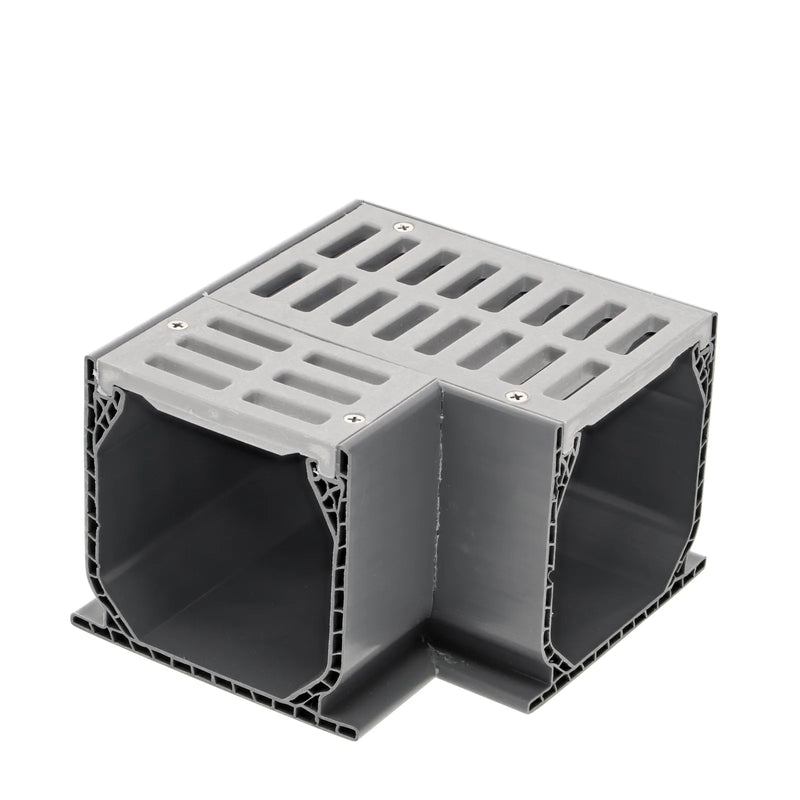

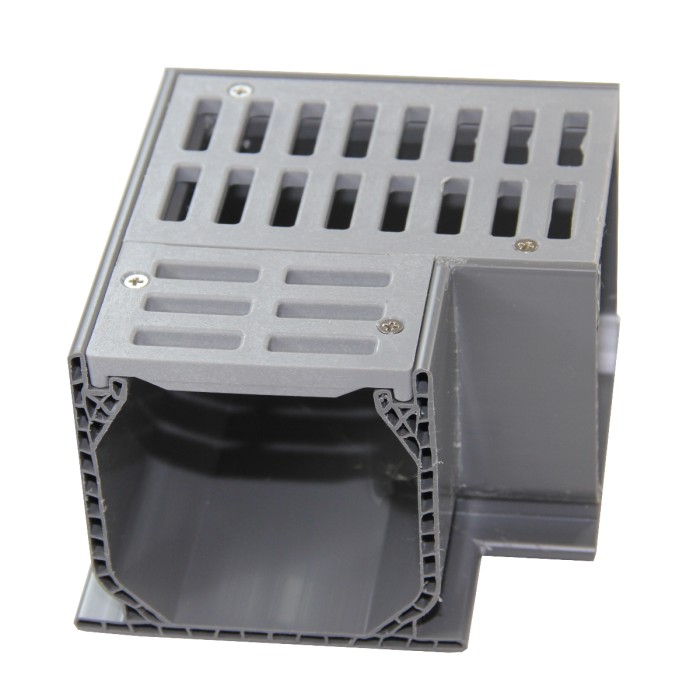

The NDS 5380 Mini Channel fabricated 90-degree elbow with grate is part of the NDS Mini Channel Series. NDS channel drains are a proven alternative to traditional concrete drains. This elbow connects Mini Channels at a 90-degree angle. It features UV inhibitors to prevent fading and cracking from the sun.

• UV Inhibitors
• High Density Polyethylene (HDPE)
• ADA Compliant

Product Highlights

This elbow simplifies layout design by eliminating on-site miter cutting. Its durable, low-maintenance construction resists corrosion and UV degradation.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 5380

Technical Specifications

• Brand: NDS
• Part Number: NDS 5380
• Width: 4-1/2"
• Length: 4-1/4"
• Grate Width: 2.75" for NDS Mini Channel
• Grate Thickness: 0.38" and 0.38" with T-Top
• Manufacturer: NDS
• System: Mini Channel
• Grate Load Class: Class A and Class B
• Grate Pattern: ACANTHUS
• Grate Pattern Style: NATURE
• Channel Material: Plastic - (PP, HDPE, PE) - Gray
• Channel Frame / Edging: None
• Application: Decorative, Residential, and Sports Complex - Recreational
• Model: 5380 Fabricated 90 ° elbow with slotted grate
• Materials: PVC channel body and UV-treated polypropylene slotted grate for improved weather resistance

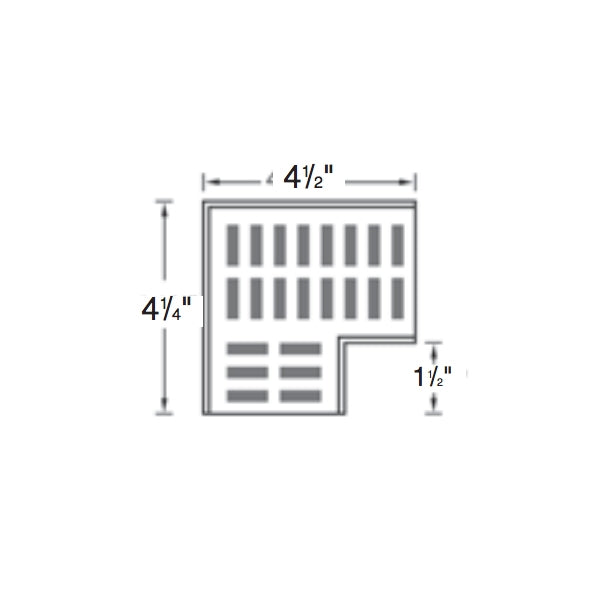

• Dimensions: 4-1/2" x 4-1/4" overall; engineered for the NDS Mini Channel profile
• Includes: One preassembled elbow with slotted grate; Mini Channel couplings are required to attach to straight sections
• Applications: Ideal for light-duty surface drainage around pools, patios, spas, walkways, driveways and tennis courts
