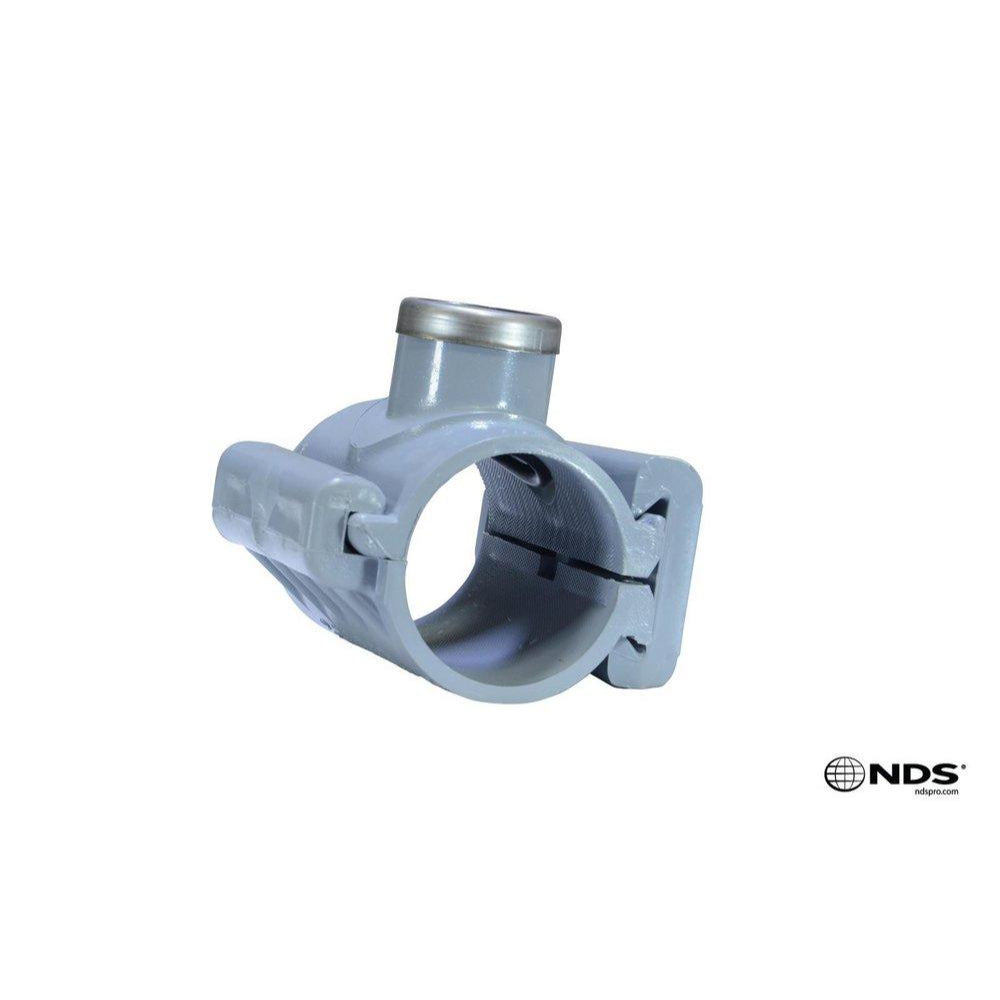

Nds 422010 Pvc Saddle Clamp-on Fipt 2x1 Inch

Product Description

The NDS 422010 is a PVC saddle fitting designed for tapping into an existing 2-inch pipe run and adding a 1-inch female iron pipe thread (FIPT) outlet. The saddle clamps directly onto the main pipe, eliminating the need to cut and replace a full tee section. Constructed from PVC, it resists corrosion and chemical degradation common in irrigation, drainage, and water distribution systems. Licensed plumbers and irrigation contractors install this type of fitting when adding branch connections to live or inactive lines without full pipe replacement.

This saddle fitting is suited for residential and light commercial irrigation systems, mainline distribution runs, and drainage applications where a branch outlet is needed on a 2-inch main. The clamp-on design allows installation without solvent welding the main pipe body, making it practical for retrofit and repair work in the field. The FIPT outlet accepts a standard threaded male adapter or threaded riser, giving the installer flexibility in branch configuration.

Key Features

• Clamp-on installation onto 2-inch pipe — no full pipe cut-out required
• 1-inch FIPT outlet accepts standard threaded fittings and risers
• PVC construction resists corrosion, UV degradation, and common irrigation chemicals
• Compatible with standard 1-inch male threaded adapters and schedule pipe risers
• Order increment of 1 — sold individually

Compatibility

Designed as an OEM-style saddle fitting for use on 2-inch PVC mainline pipe in residential and commercial irrigation and drainage systems requiring a 1-inch FIPT branch outlet.

Installation Notes

Installation is typically performed by a licensed plumber or certified irrigation technician. Shut off and depressurize the main line before securing the saddle clamp to prevent fitting displacement or leaks. Ensure the pipe surface is clean and free of debris before tightening the clamp hardware evenly on both sides. Thread connections should be made with appropriate thread sealant tape per IPC guidelines to ensure a leak-free joint at the FIPT outlet.

Technical Specifications

• Main Pipe Size: 2 inches
• Outlet Size: 1 inch
• Connection Type: Clamp-On x FIPT
• Material: PVC
• Weight: 0.9 pounds

Standard Information

• Brand: NDS
• Manufacturer Part Number: 422010
