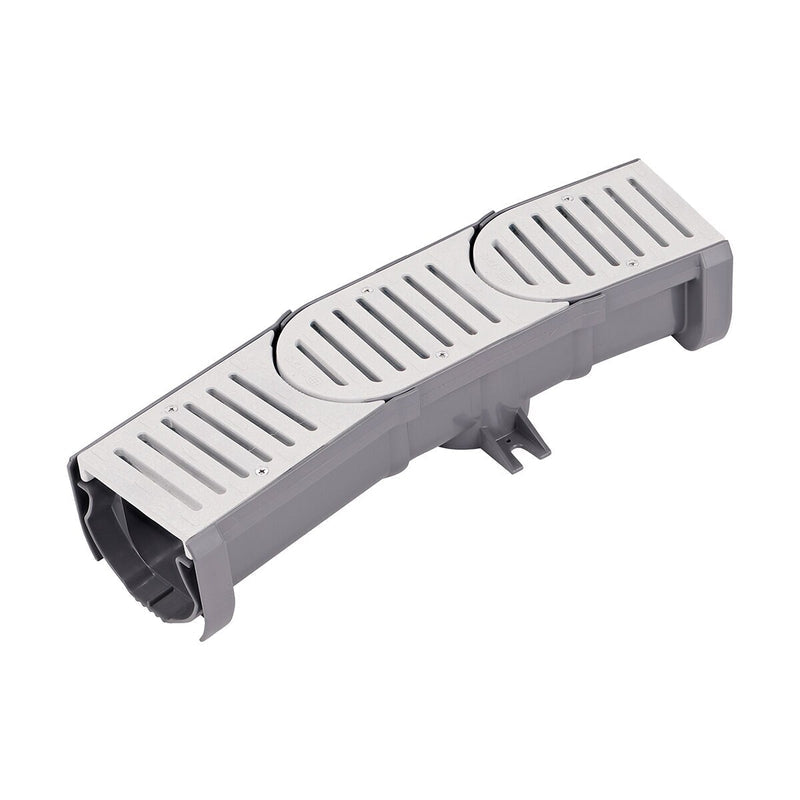

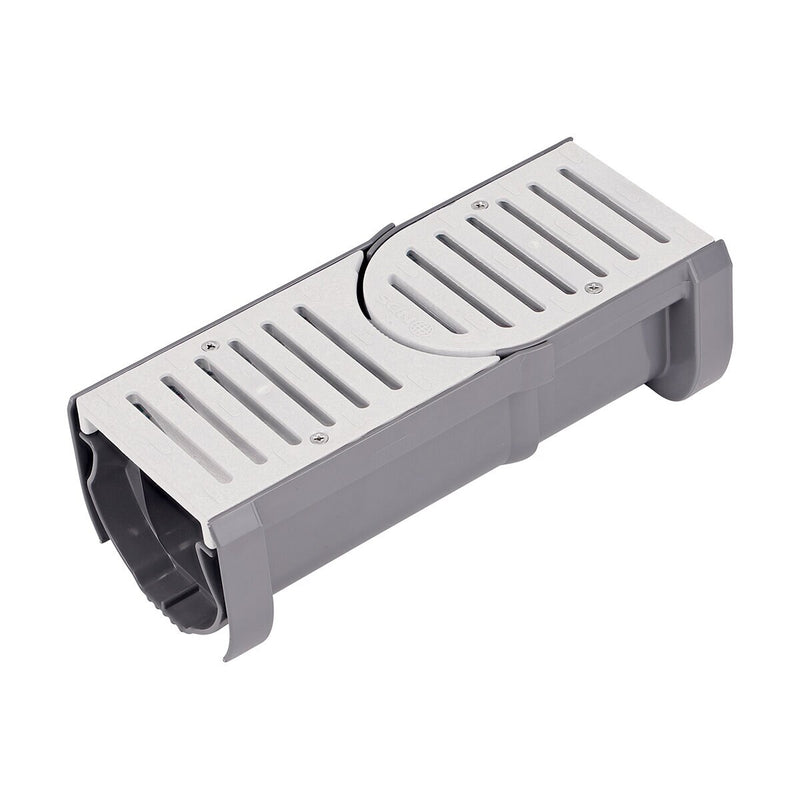

Nds 400-ACSE-WH Spee-D Contour Channel Drain Start and End Section Kit

Product Description

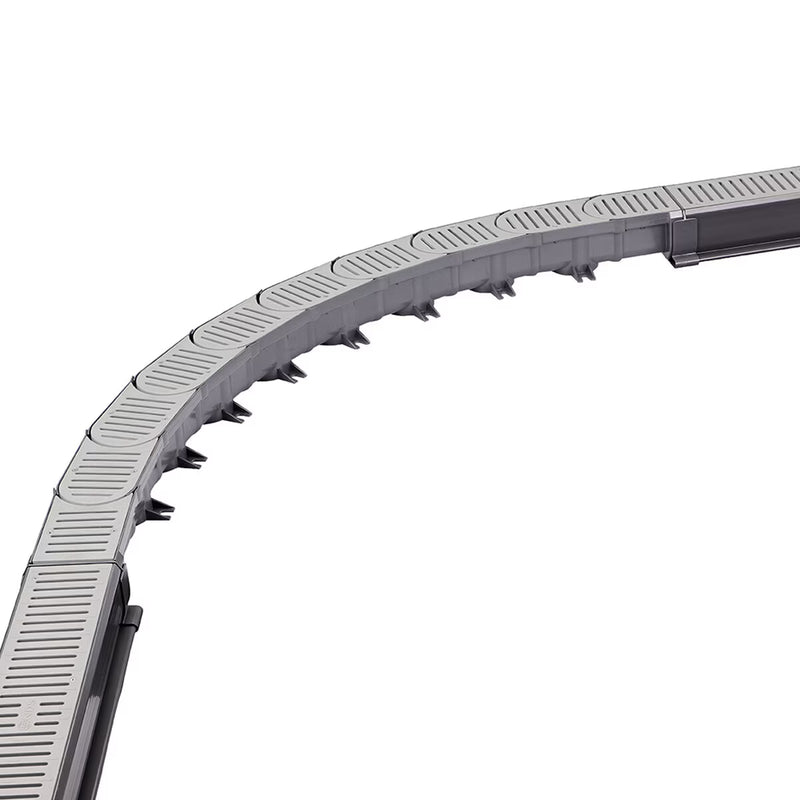

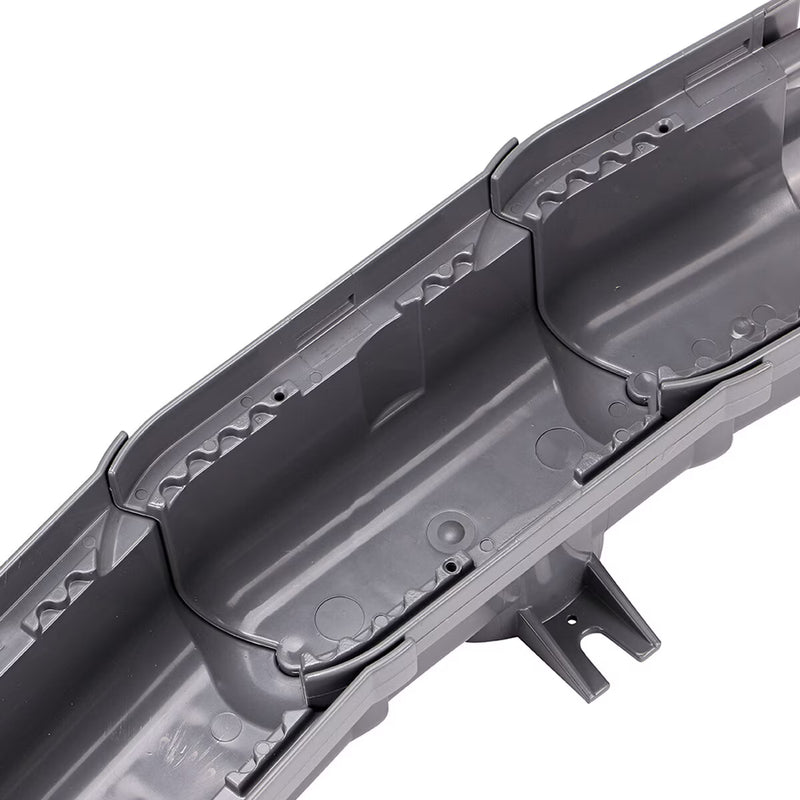

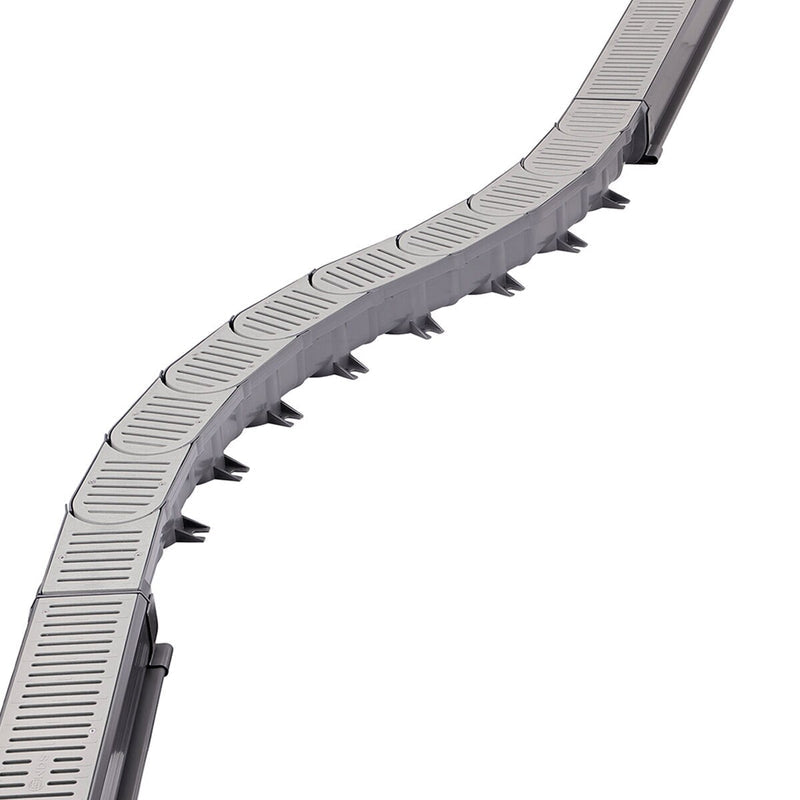

The NDS Spee-D Contour Channel Drain Start and End Section Kit, MPN 400-ACSE-WH, takes drainage design beyond straight lines, giving the freedom to shape smooth curves and custom layouts. The patented 0–9° deflection per section makes creating flowing lines effortless. The snap-together system locks securely in place without couplings.

• Takes drainage design beyond straight lines
• Gives you the freedom to shape smooth curves and custom layouts
• Patented 0–9° deflection per section

Product Highlights

The NDS Spee-D Contour Channel Drain combines durability with performance, moving up to 51 gallons per minute and carrying a Class B load rating for light vehicular traffic.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 400-ACSE-WH

Technical Specifications

• Part of: NDS Spee-D Series
• ADA Compliant: Yes
• Flow rate: 51 GPM
• Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
• Deflection: 0-9 Degree of deflection
• Couplings Required: No couplings required
• Open Surface Area: 16.92 Sq. Inch per Ft.
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Item: Drain
• Type: Channel
• Series: Spee-D Series
• Grate Shape: Rectangle
• Regulated: No
