Product Description

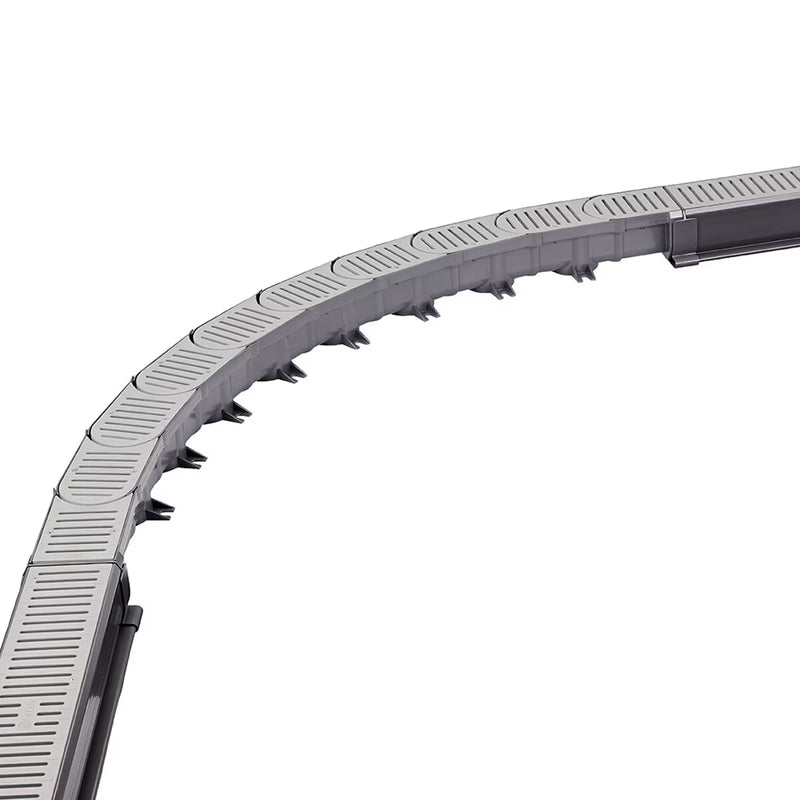

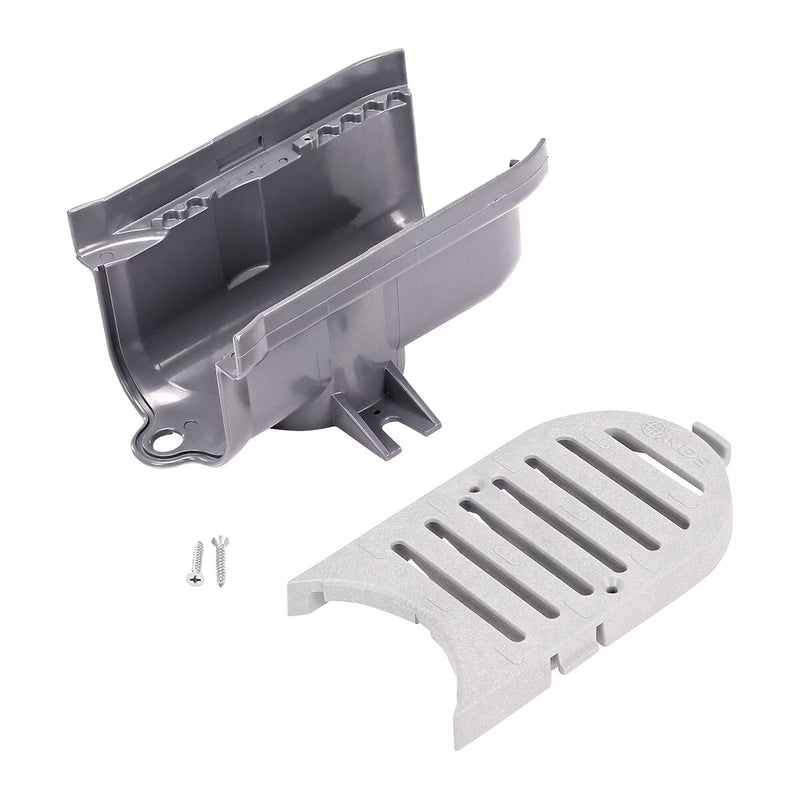

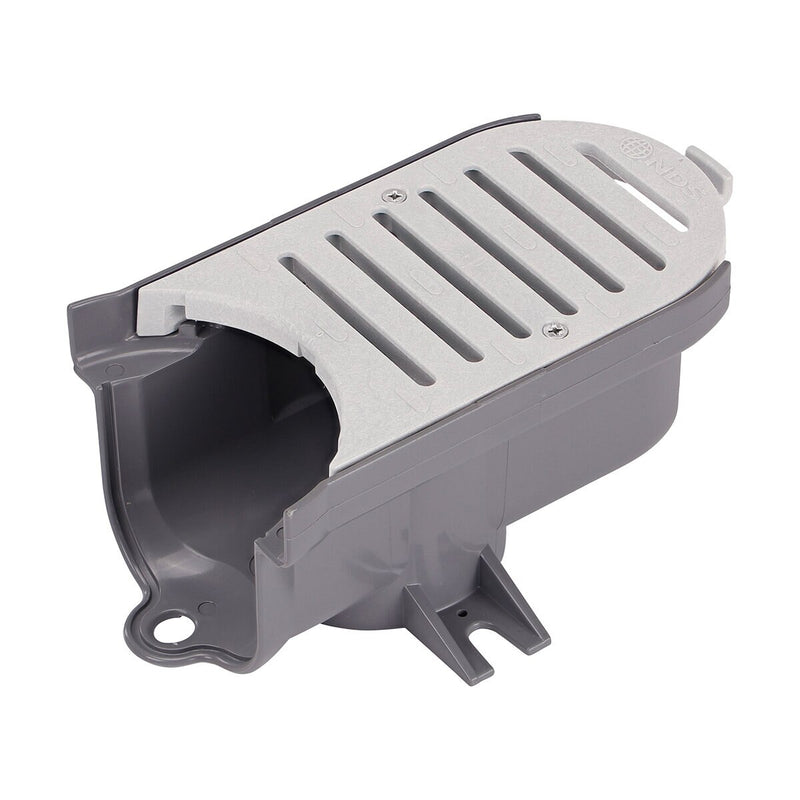

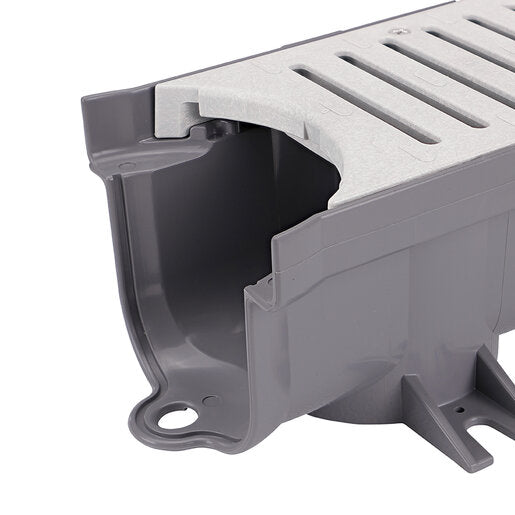

The NDS Spee-D Contour Channel Drain Middle Section with Gray Grate allows you to easily create smooth, natural curves in your channel drain system. Its modular design connects seamlessly to extend length and customize curved layouts, making it ideal for free-form pool decks, curved patios, fountains, splash pads, fire pits, and other curved hardscape areas.
- Durable construction ensures long-lasting performance and reliability
- Sleek gray grate complements any outdoor aesthetic
- Efficient drainage design prevents flooding and standing water
Product Highlights
This product combines functionality and adaptability for expert-level hardscape drainage installation.
Product Information
Standard Information
-
Brand: NDS
-
Manufacturer Part Number: 400-ACM-WH
Technical Specifications
-
Type: 4in. PVC channel drain
-

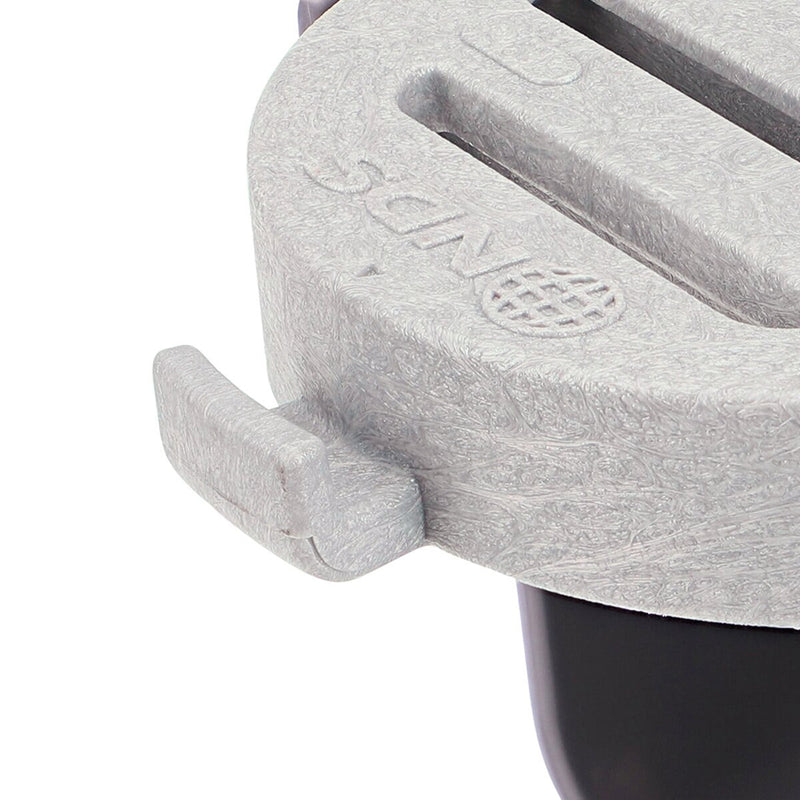

Grate: Gray slotted grates ship pre-installed
-
Compatibility: Matches slotted gray #241 grates
-
Flexibility: Sections pivot up to 9 for smooth curves
-
Maintenance: Grates are easily removable for maintenance
-
Connections: Flexible connections without couplings
-
Outlet: Middle sections accommodate the #2350 adapter for a 3in. bottom outlet
-
Installation: Integrated rebar clips and a flat bottom allow flexible installation over various subgrades
-
Rebar Compatibility: Compatible with 3/8" rebar (#3) or 3/8" spikes
-
UV Resistance: UV-inhibited materials resist fading and cracking
-
Load Rating: NDS Class B (up to 175 PSI) when properly installed
-
Traffic Suitability: Medium-duty pneumatic tire traffic, Passenger vehicles and light trucks, Low-speed areas (under 20 MPH)
-
ADA Compliance: ADA compliant / heel-proof - Slot width: 0.25in.
-
Flow Rate: 51 GPM
-
Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
-
Deflection: 0-9 Degree of deflection
-
Couplings Required: No couplings required
-
Open Surface Area: 16.92 Sq. Inch per Ft.
-
Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
-
Material: UV Protected High-Density Polyethylene (HDPE)
-
Item: Drain
-
Series: Spee-D Series
-
Color: Gray
-
Grate Shape: Rectangle
-
Regulated: No
-
Brand Name: NDS
