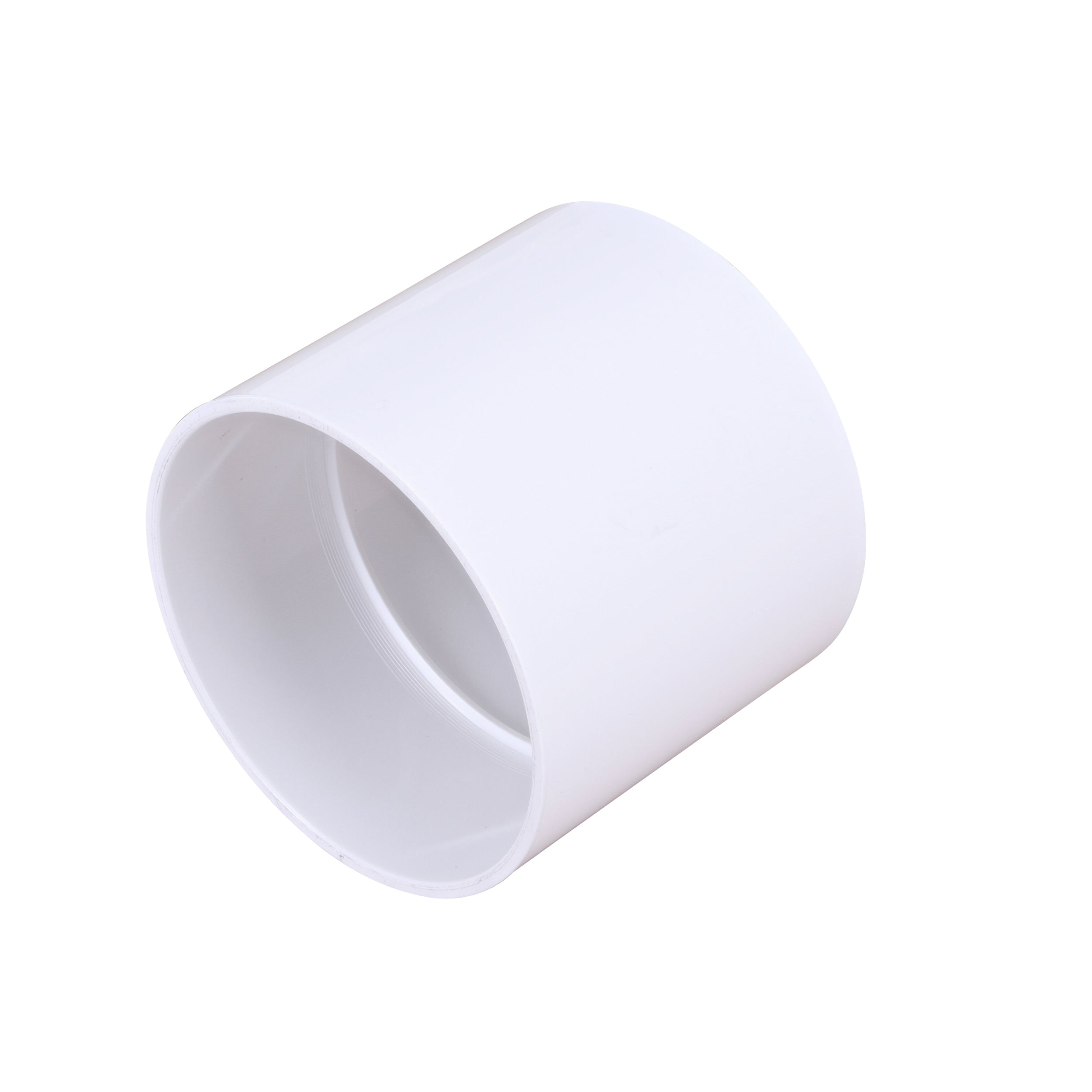

Nds 3P05R 3 Inch SDR-35 Pvc No-stop Repair Coupling

Product Description

The NDS 3P05R is a 3-inch no-stop repair coupling designed for solvent-weld installation on SDR-35 PVC pipe. Unlike standard couplings, this fitting has no internal stop, allowing it to slide freely along the pipe so technicians can center it over a damaged section without cutting out additional pipe length. It is built for gravity-flow drain, waste, and sewer applications and is typically installed by licensed plumbers performing in-field pipe repairs on residential and light commercial systems. The coupling weighs 0.25 pounds, making it easy to handle in tight excavations or confined crawlspace repairs.

This coupling is suited for underground and above-grade SDR-35 PVC drain and sewer lines where a damaged or cracked section needs a fast, solvent-bonded repair. The no-stop design is especially useful in situations where pipe movement is restricted and a centered placement over the repair zone cannot be achieved with a standard stop coupling. It is a common stock item for plumbing crews handling lateral sewer repairs and drain-line service calls.

Key Features

• No internal stop allows free sliding for precise centering over repair area
• 3-inch diameter fits standard SDR-35 PVC pipe
• Solvent-weld socket ends create a permanent, pressure-resistant joint
• Lightweight at 0.25 pounds for easy handling in confined or excavated spaces
• SDR-35 wall rating suitable for gravity-flow drain and sewer service

Compatibility

Designed as an OEM-style repair fitting for 3-inch SDR-35 PVC gravity-flow drain, waste, and sewer pipe systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off flow and allow the pipe to drain fully before beginning the repair. Clean and dry both pipe ends, apply approved PVC primer and solvent cement per the cement manufacturer's instructions, and allow full cure time before restoring flow. Do not use this fitting on pressure-rated supply lines.

Technical Specifications

• Pipe Size: 3 inches
• Pipe Standard: SDR-35
• Material: PVC
• Connection Type: Solvent Weld
• Coupling Style: No-Stop Repair
• Weight: 0.25 pounds
• UPC: 052063331058

Standard Information

• Brand: NDS
• Manufacturer Part Number: 3P05R
