Nds 322bcb Rectangular Valve Box Cover 13x24 in Green

Product Description

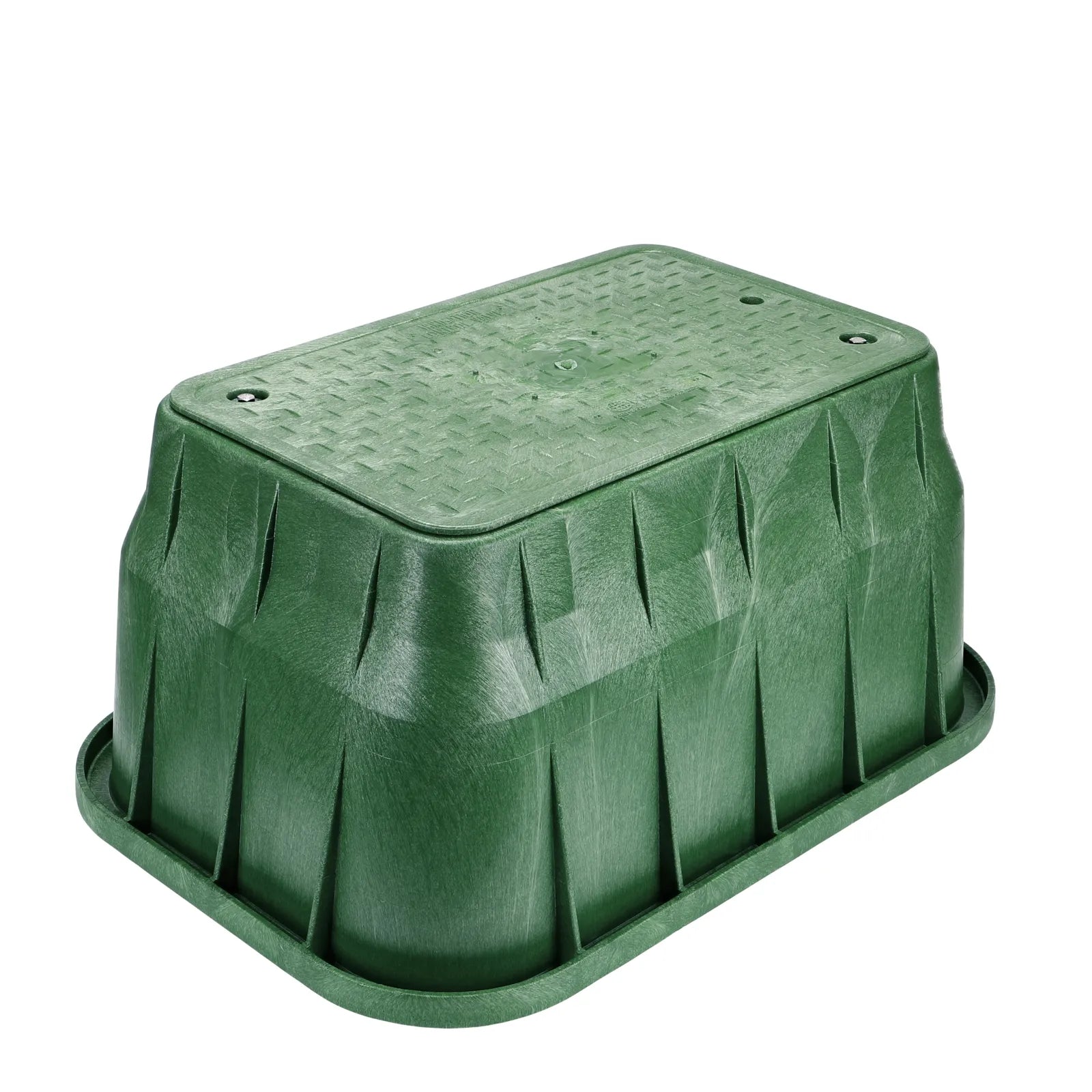

The NDS 322bcb is a rectangular valve box and cover designed to protect underground irrigation control valves, sewer cleanouts, and wire splices. Measuring 13 inches wide by 24 inches long with a 15 inch height, it provides ample access to subsurface components in residential and commercial landscape installations. The box is constructed from high-density polyethylene (HDPE) with corrugated sidewalls that add structural strength while keeping weight low. Both the box and the overlapping cover are green and treated with UV inhibitors to resist sun degradation over time. The cover is secured with included 3 inch by 3/8 inch bolts, and the box ships with two nuts preinstalled.

This valve box is suited for irrigation system installations where underground valve assemblies, wire connections, or cleanouts require protection and periodic service access. The overlapping lid design keeps soil and debris from entering the box interior, protecting components between service visits. The cover is molded with the label IRRIGATION CONTROL VALVE and includes a lift indicator, helping technicians and inspectors locate and access the correct box in multi-zone systems. It is used in both residential lawn irrigation and commercial landscape projects.

Key Features

• Corrugated sidewalls provide structural rigidity while reducing material weight
• Overlapping cover design blocks debris and soil intrusion
• Cover labeled IRRIGATION CONTROL VALVE with molded lift indicator for field identification
• Includes 3 inch by 3/8 inch bolts and two preinstalled nuts for secure lid attachment
• High-density polyethylene (HDPE) construction with UV inhibitors for outdoor durability
• Green box and green cover for standard irrigation color identification

Compatibility

Designed as a commercial-grade enclosure for underground irrigation control valves, sewer cleanouts, and wire splice protection in landscape and turf irrigation applications.

Installation Notes

Installation is typically performed by licensed irrigation contractors or landscape professionals. Excavate to the required depth before setting the box to ensure the cover sits flush with or slightly above finish grade. Secure the cover with the included bolts after routing valve wiring and making all connections. Verify local codes for burial depth and box placement requirements before backfilling.

Technical Specifications

• Length: 24 inches
• Width: 13 inches
• Height: 15 inches
• Material: High-Density Polyethylene (HDPE)
• Color: Green box, green cover
• UV Treatment: UV inhibitors included
• Hardware Included: 3 inch by 3/8 inch bolts, two preinstalled nuts

Standard Information

• Brand: NDS
• Manufacturer Part Number: 322bcb
