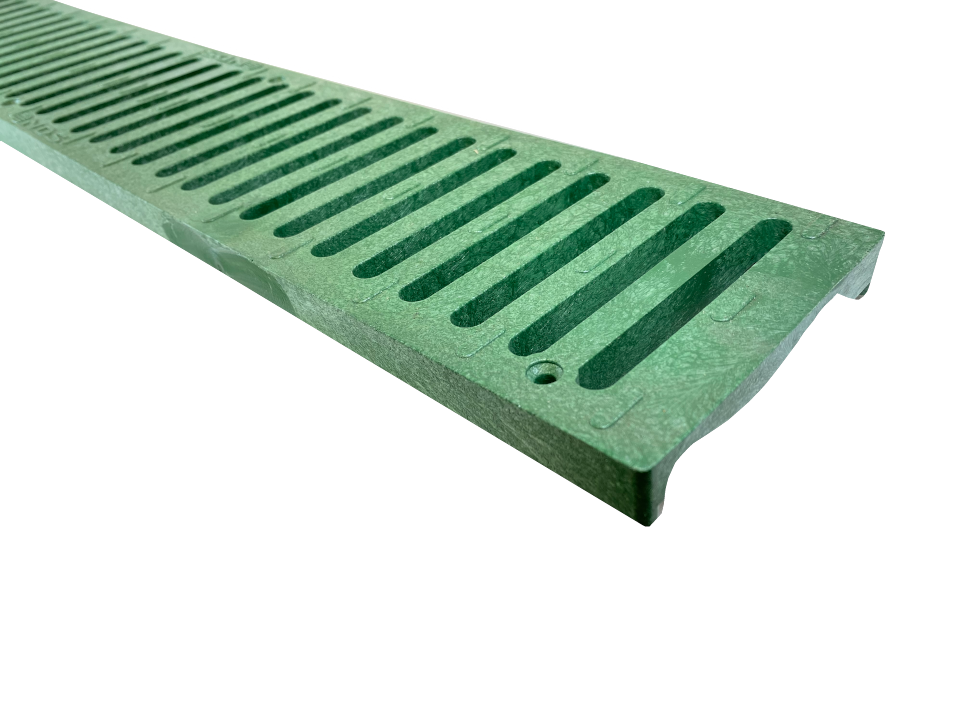

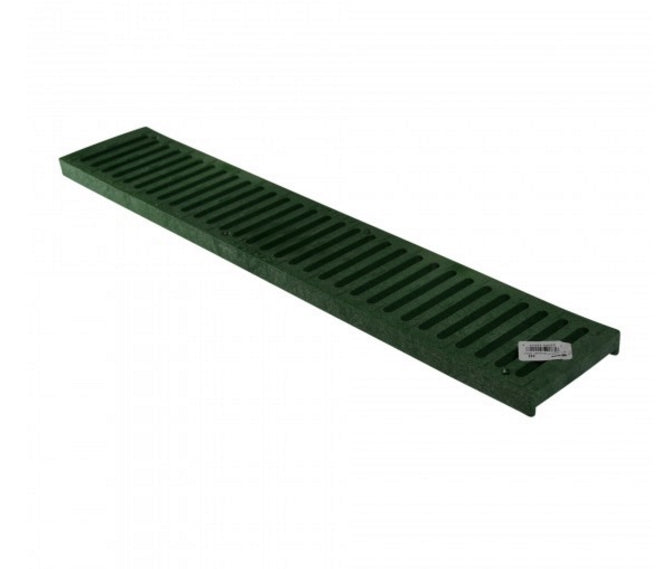

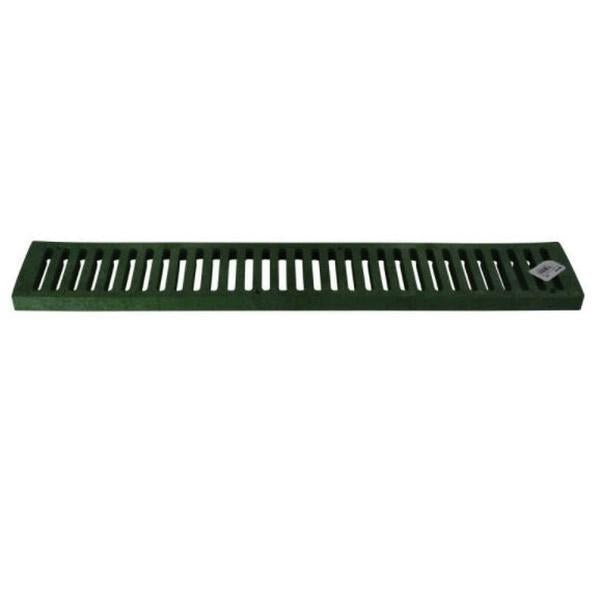

Nds 242 Spee-D 2 feet Green Channel Grate, 24in HDPE

Product Description

The NDS 242 Spee-D 2' Green Channel Grate is a durable, lightweight drainage grate engineered for the NDS Spee-D channel system. Molded from UV-stabilized HDPE, this 24-inch grate resists rust and most chemicals while providing an open surface area for efficient runoff. Its patented flying-buttress profile delivers support for patios, pool decks, and driveways.

• Durable and lightweight
• Rust and chemical resistant
• ADA compliant design suitable for pedestrians and light vehicle traffic

Product Highlights

Easy to handle and install, the NDS 242 grate makes maintenance simple: remove, clean debris, and snap back into place. Order multiples for continuous channel runs.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 242

Technical Specifications

• Material: UV stabilized HDPE

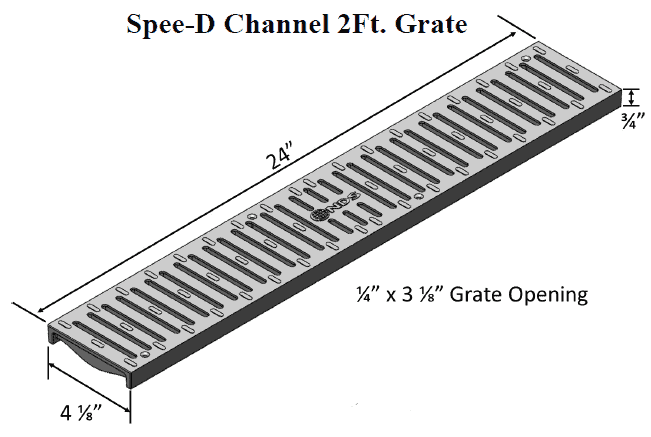

• Length: 24 in
• Width: approximately 4-1/8 in
• Grate openings: Slotted opening pattern approximately 3/8 in 3-1/4 in
• Compatibility: NDS Spee-D channel drains (fits channel body models such as #400 and #400-10)
• Load Class: B
• Grate Material: HDPE
• Grate Opening: Slotted
• Additional Information: Flying Buttress Design
• Color: Green
• Flow Rate: 51.27 gpm
• Height: 3/4 in
• Opening Size: 3/8 x 3-1/4 in
• Shape: Flat
• Suitable For Use With: Spee-D 400 and 400-10 Channel Drains
• Surface Area: 16.92 sq-in/ft
• Grate Width: 4.13" for NDS Spee-D
• Grate Thickness: 0.75"
• Grate Material / Color / Finish: Plastic/HDPE - Green
• Manufacturer: NDS
• System: Spee-D
• Grate Pattern: OBLIO
• Grate Pattern Style: GEOMETRIC
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential
• Designed to fit: NDS Spee-D Channel
