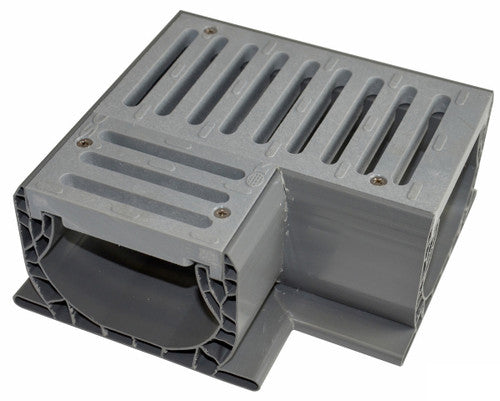

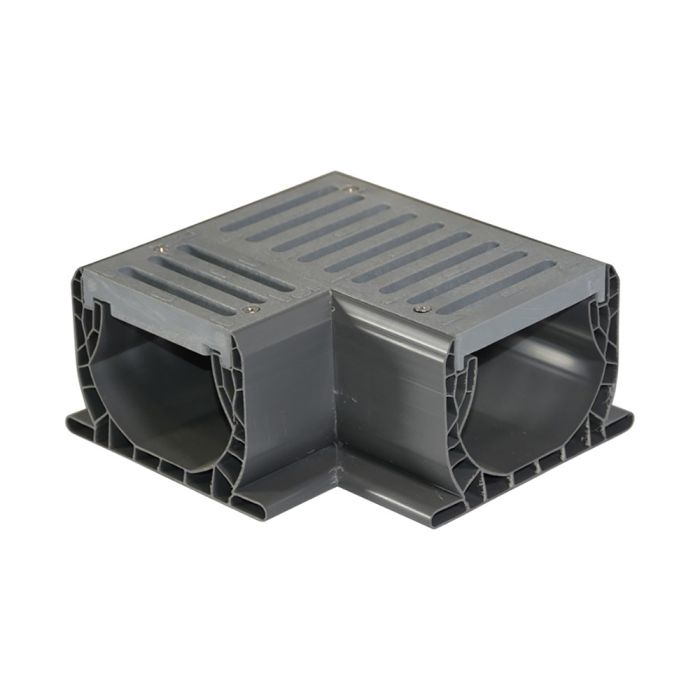

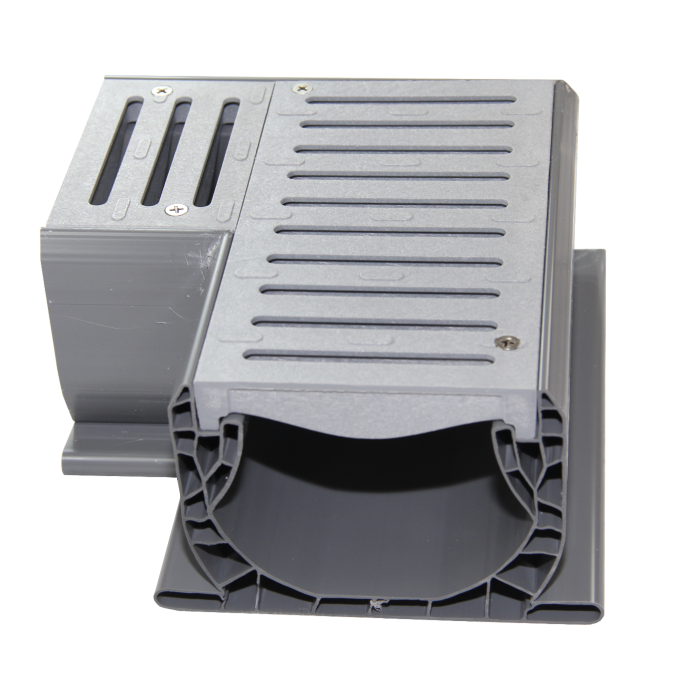

Nds 2381 Spee-D Channel Drain 90 Degree Elbow and Grate

Product Description

The NDS 2381 Spee-D Channel Drain 90 Degree Elbow and Grate makes a 90° turn in your Spee-D Channel Drainage system layout. It efficiently drains moderate flows from driveways, patios, pool areas, and courtyards. Create a watertight connection using solvent-weld PVC glue.

• Makes a 90° turn in your Spee-D Channel Drainage system layout
• Drains moderate flows from driveways, patios, pool areas, and courtyards
• Creates a water-tight connection with solvent-weld PVC glue

Product Highlights

This Spee-D Channel Drain is a lightweight alternative to traditional concrete channel drains. It features UV inhibitors to prevent fading and cracking, is chemical-resistant, rustproof, and maintenance-free.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 2381
• Country of Origin: USA

Technical Specifications

• Brand: NDS
• Product Type: SPEE-D Channel Drains & Grates
• Connection Type: Spee-D Channel Drain
• Material: Plastic
• Shape: Channel
• Pattern: Grid
• UV Inhibitors: Yes
• Open Surface Area: 16.8 sq. in. per linear ft. open surface area. 51 GPM per ft. flow rate
• Use with: NDS Spee-D Channel drain series
• Application: Used to create a 90° turn left or right in your Spee-D channel drainage system layout
• Compatibility: Spee-D Channel Couplings (NDS #248) are required to connect to NDS Spee-D Channel
• Load Rating: Class B (61-175 PSI)
• ADA Compliant: Yes
• Part Number: 2381
• Channel Dimensions: 4-3/4 in. wide, 3-3/4 in. high, and 4 ft. long
