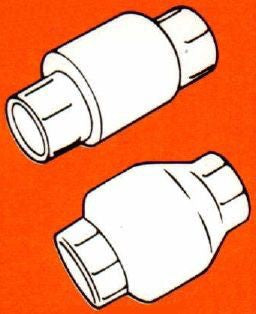

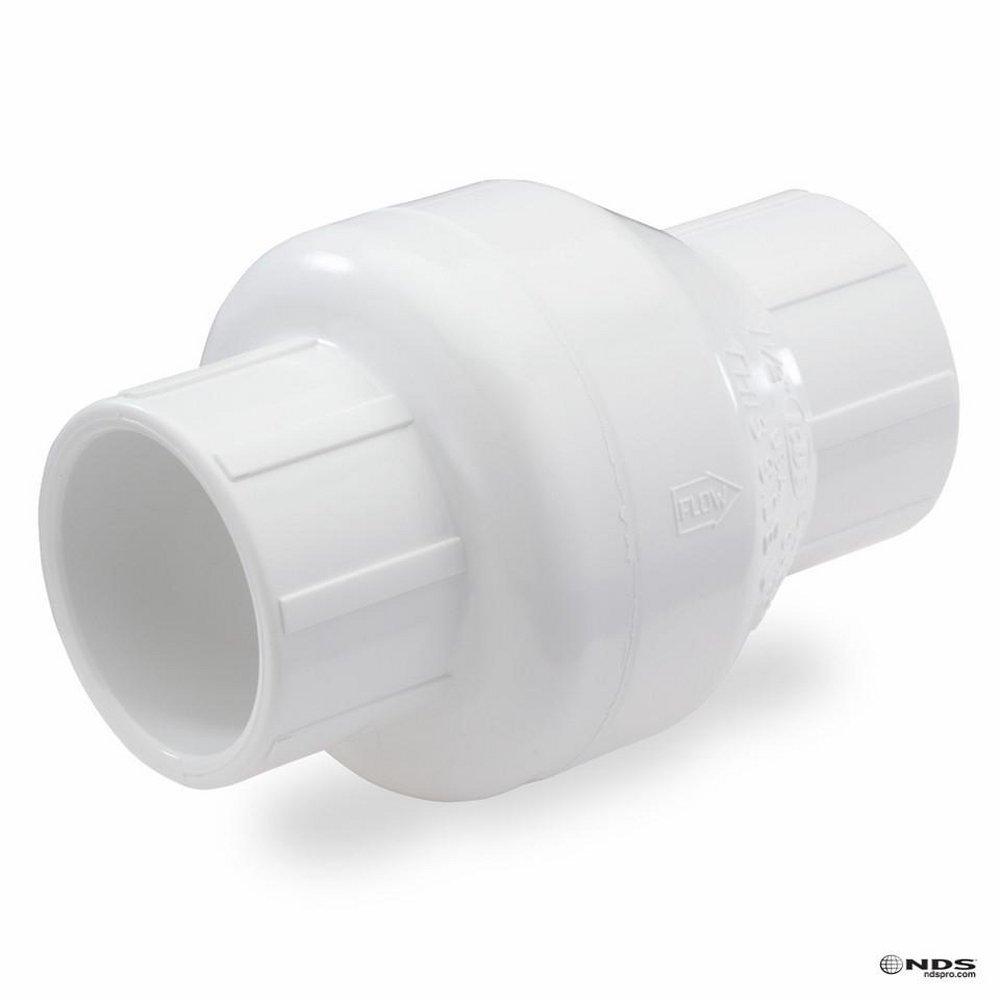

NDS 1520-10 Series 1500 1 in. Plastic Slip Swing Check Valve

Product Description

NDS presents the Series 1500 1 in. Plastic Slip Swing Check Valve, MPN 1520-10. This valve is designed to ensure one-way water flow and prevent backflow, making it suitable for various plumbing applications.

• Rated at 125 PSI static pressure at seventy-two degrees Fahrenheit
• NSF/ANSI 61 + 372 listed for safe drinking water
• Fits IPS/Schedule 40 pipe for compatibility with standard plumbing systems

Product Highlights

The NDS Series 1500 check valve is molded in the USA and made from durable PVC Type 1 material. It is ideal for situations where backflow prevention is necessary.

Product Information

Standard Information

• Brand: NDS
• MPN: 1520-10

Technical Specifications

• Max Pressure: 125 PSI at seventy-two degrees Fahrenheit
• Flow Rate: 20.2 GPM
• Connection Type: Socket x Socket
• Material: PVC
• Seal Material: EPDM
• Min Temp: 14 degrees Fahrenheit
• Max Temp: 140 degrees Fahrenheit
• Overall Length: Four and nineteen thirty-seconds inches
• Overall Height: Two and twenty-nine thirty-seconds inches
