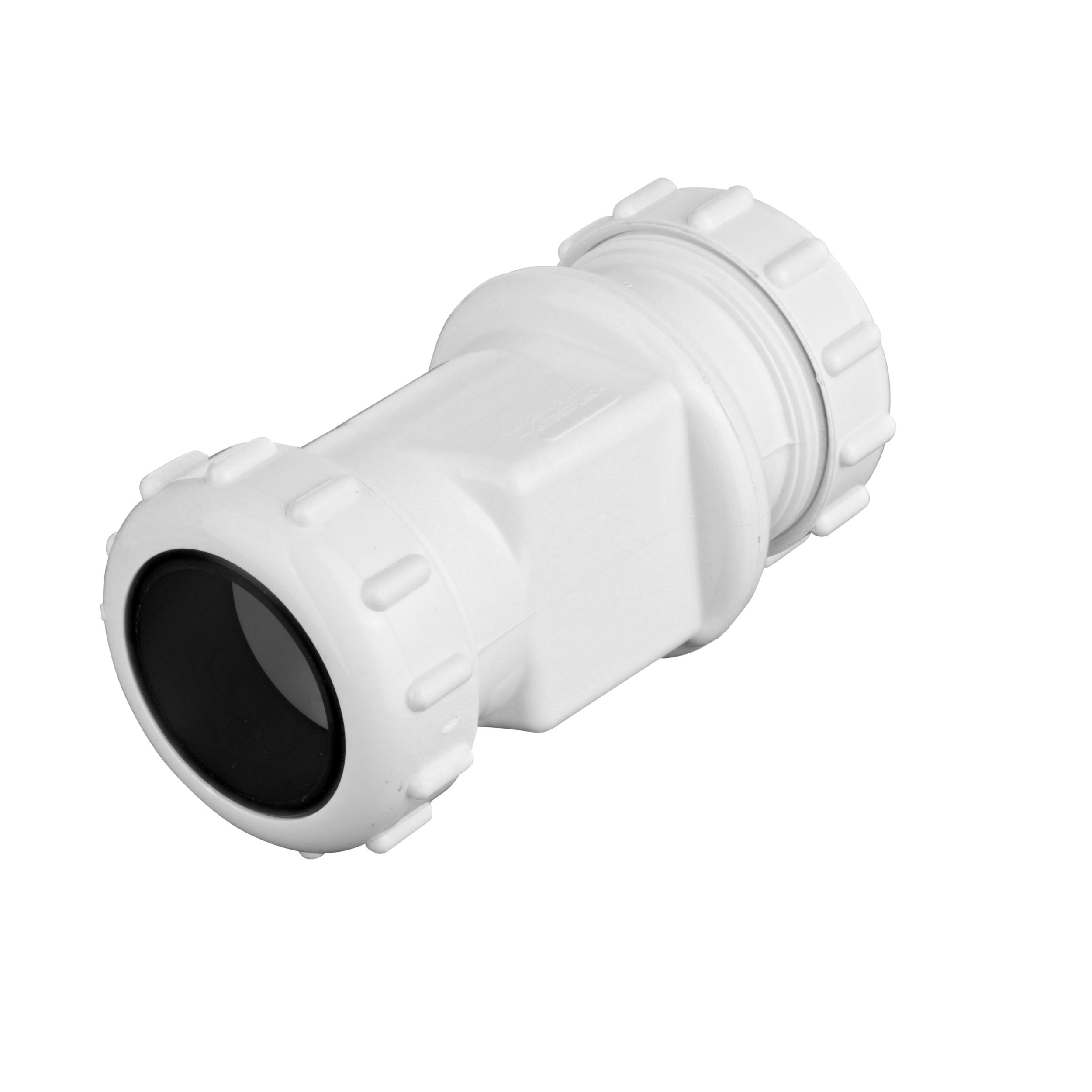

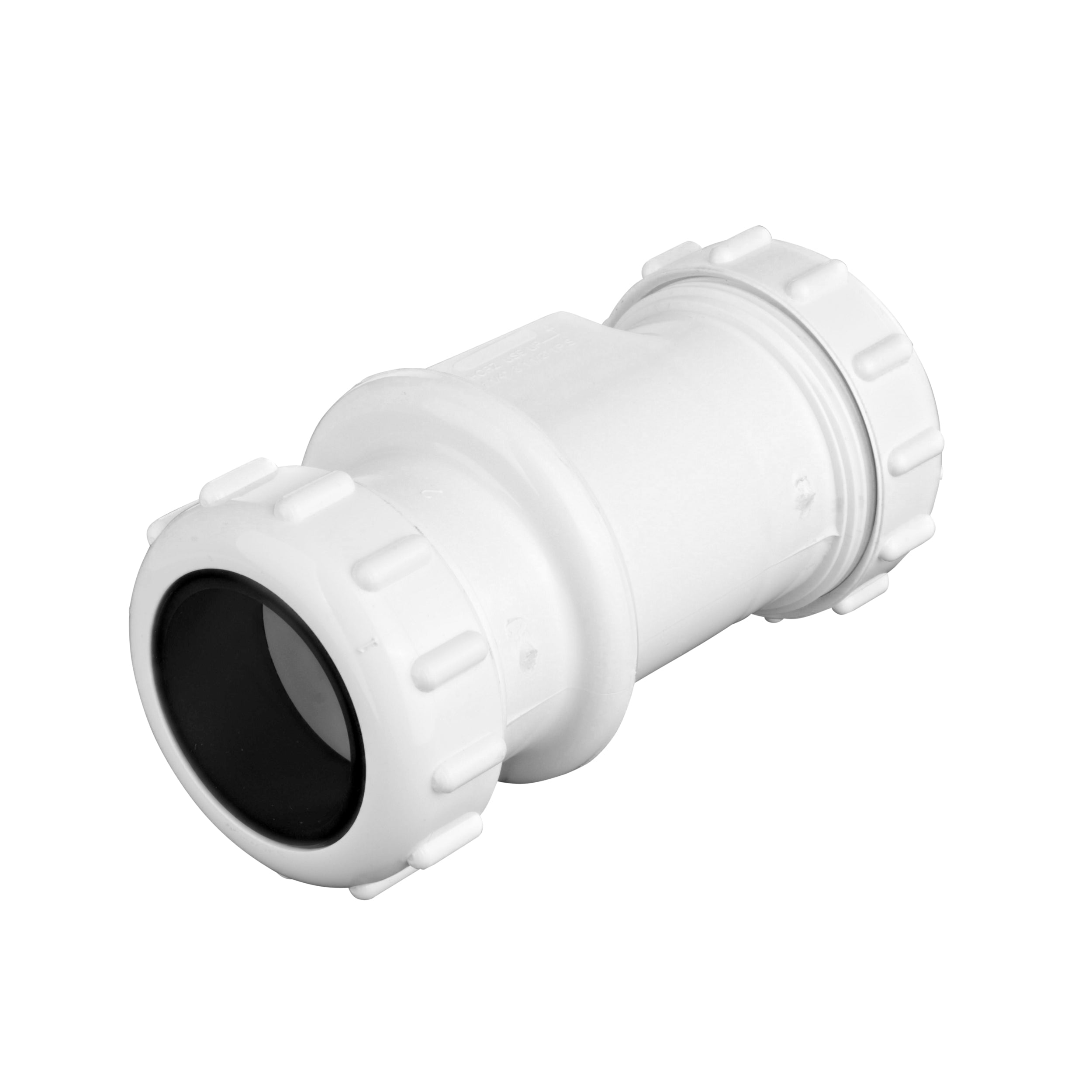

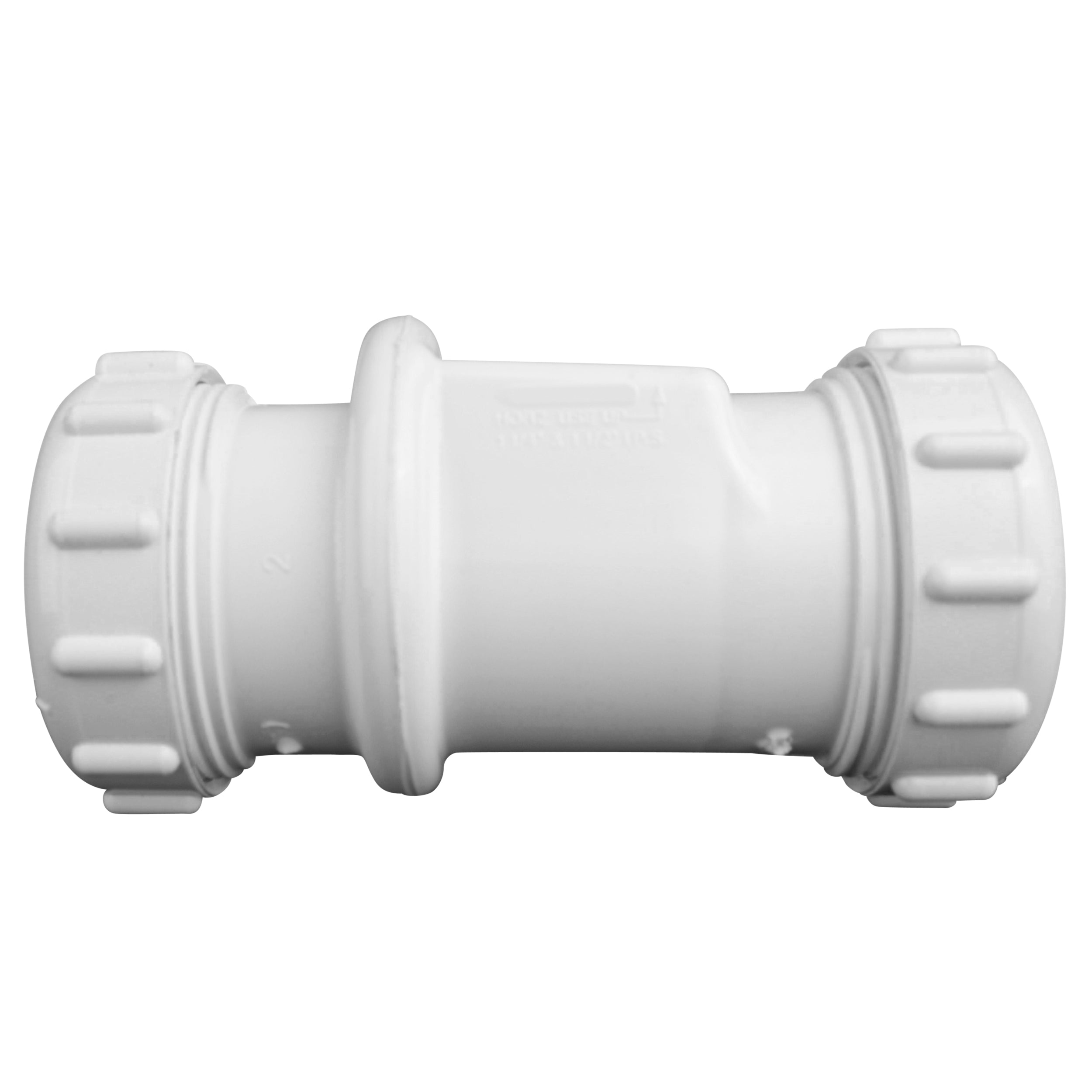

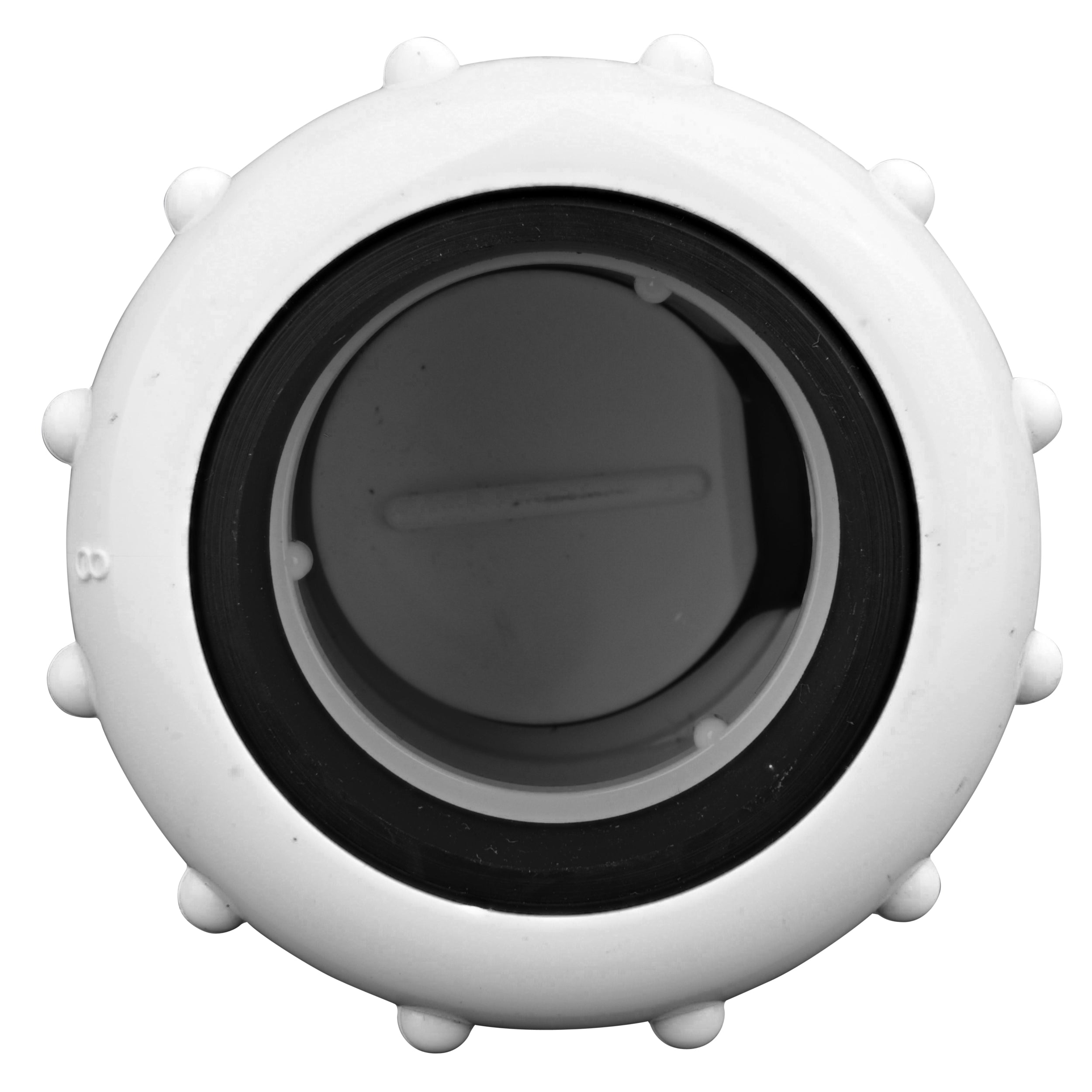

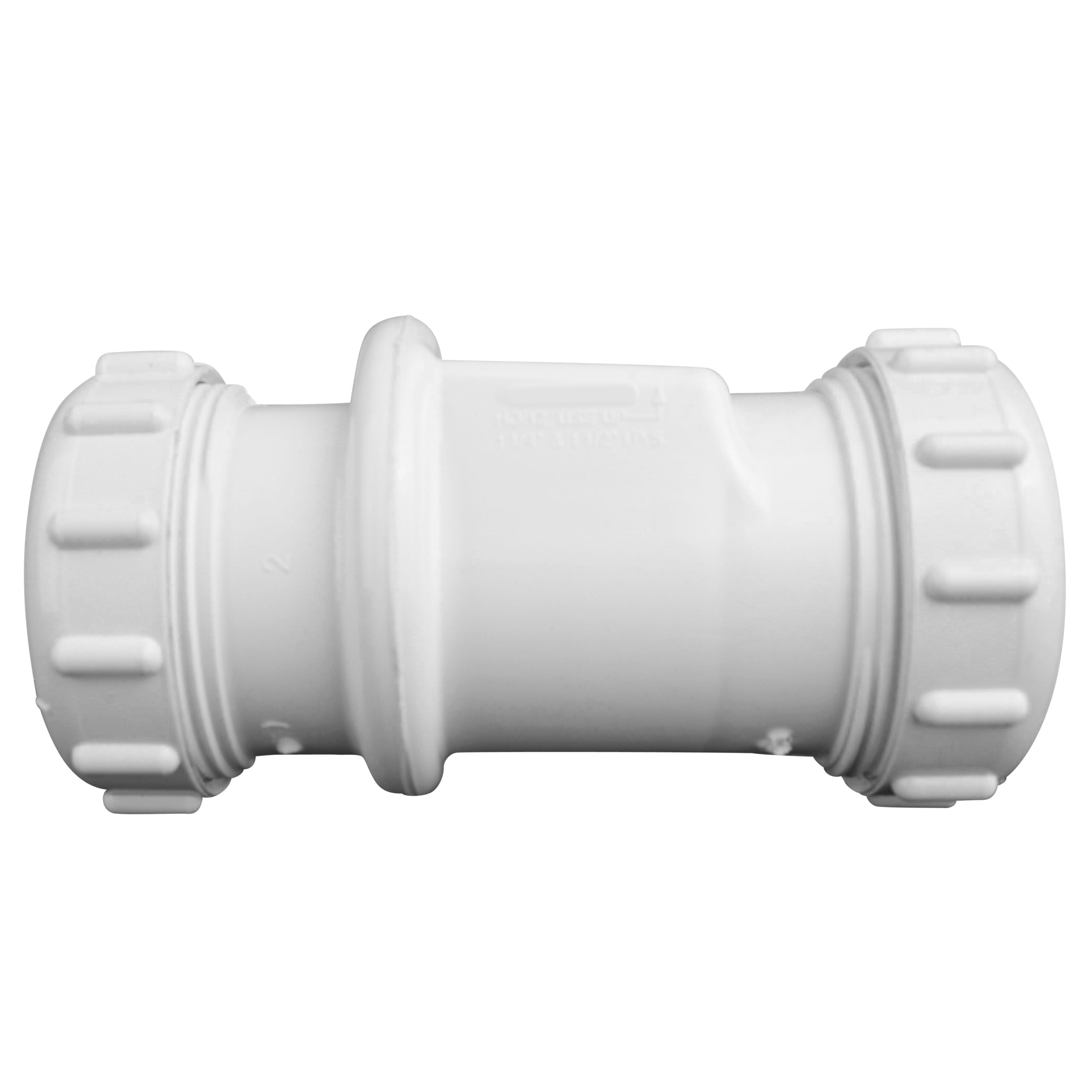

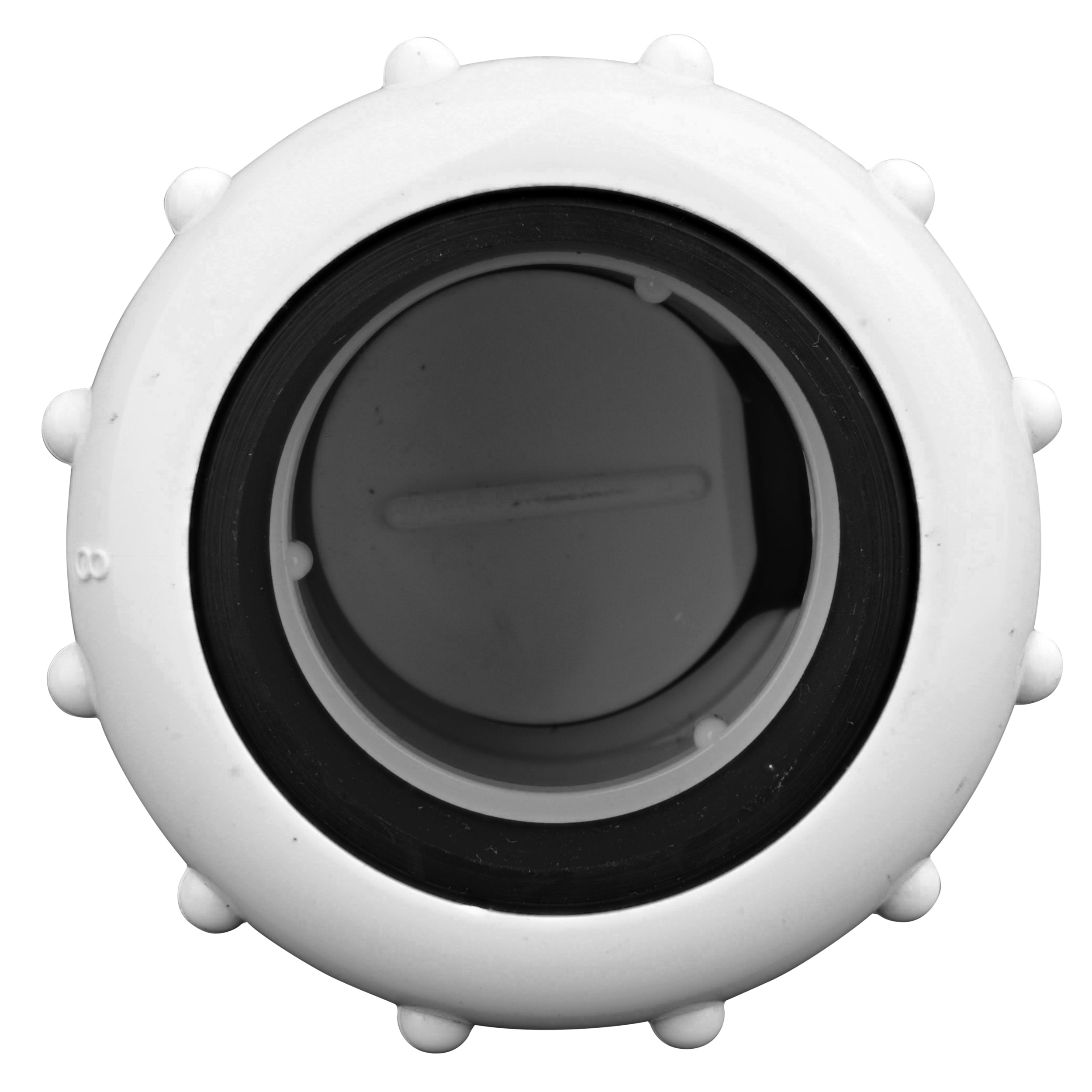

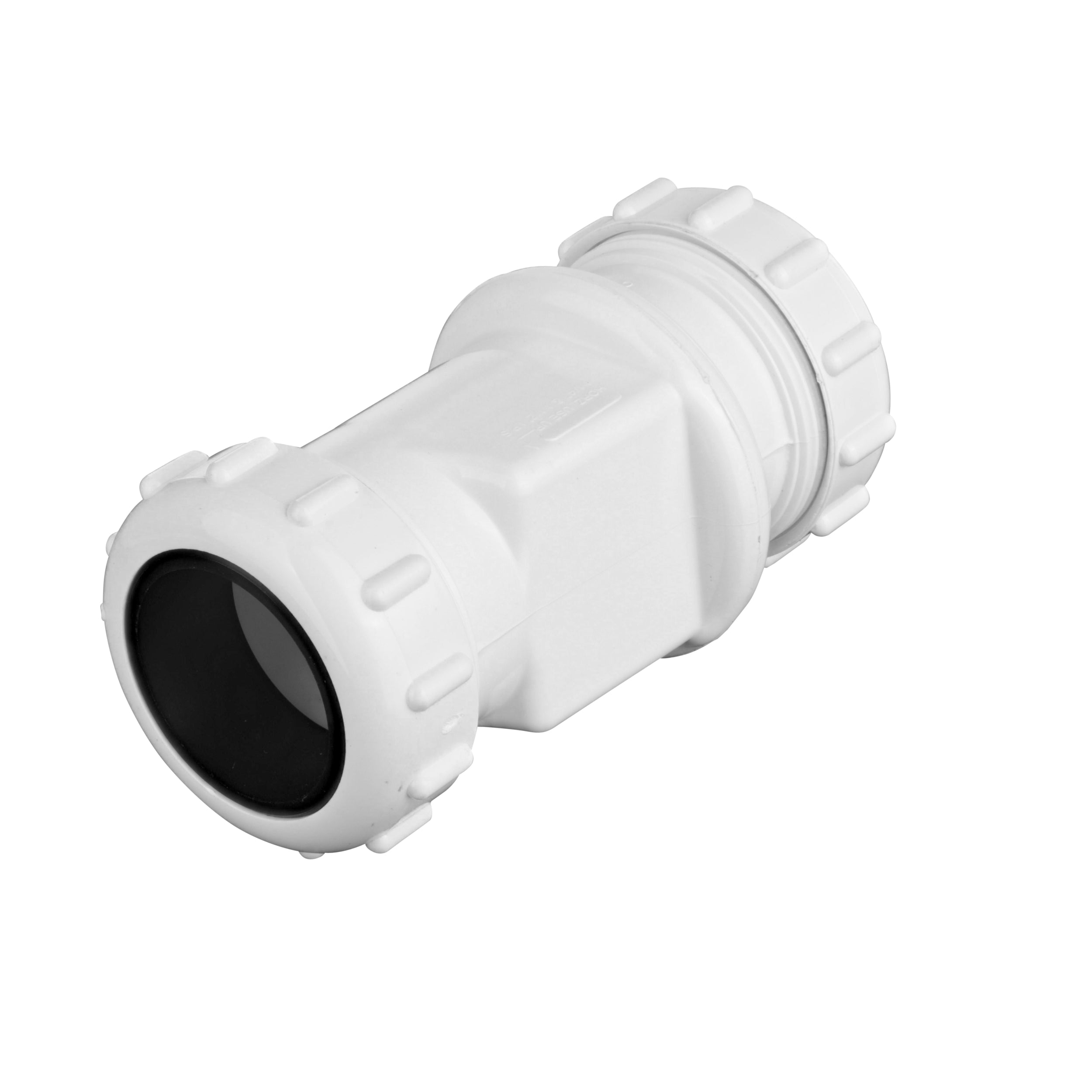

Nds 1400-15 Pvc Compression Swing Check Valve Sump Pump

Product Description

The NDS 1400-15 is a PVC compression swing check valve designed for sump pump discharge lines. It accepts both 1-1/4 inch and 1-1/2 inch pipe connections using a compression-style fitting, eliminating the need for solvent cement on the joint. The swing check mechanism allows flow in one direction and closes automatically when flow stops or reverses, preventing backflow from re-entering the sump basin. This valve is installed by plumbers and sump pump service technicians as part of a complete discharge assembly.

This valve is suited for residential sump pump applications where a reliable, easy-to-install check valve is required on the discharge riser. The dual-size compression design accommodates the two most common sump pump discharge pipe sizes, making it a practical fit for new installations and retrofit work alike. It is appropriate for interior drainage systems where backflow prevention on the pump outlet is required by local plumbing codes.

Key Features

• Accepts 1-1/4 inch and 1-1/2 inch pipe via compression fitting — no solvent cement required at the connection
• Swing check mechanism provides automatic backflow prevention when pump stops
• PVC construction resists corrosion in wet sump pit environments
• Compression-style connection simplifies installation and future serviceability
• Order increment of 1 — available as a single unit

Compatibility

Designed as an OEM-style replacement or new-installation check valve for residential sump pump discharge lines using 1-1/4 inch or 1-1/2 inch PVC pipe.

Installation Notes

Installation is typically performed by a licensed plumber or qualified sump pump technician. Disconnect power to the sump pump before beginning any work on the discharge line. Ensure the valve is oriented correctly with the flow arrow pointing away from the pump to allow proper check valve operation. Verify local plumbing code requirements for check valve placement and pipe support on the discharge riser.

Technical Specifications

• Material: PVC
• Connection Type: Compression
• Pipe Size Compatibility: 1-1/4 inches and 1-1/2 inches
• Valve Type: Swing Check
• UPC: 670686400151
• Order Increment: 1

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1400-15
