Nds 13S 4inch Sand Rnd Poly Grate

Product Description

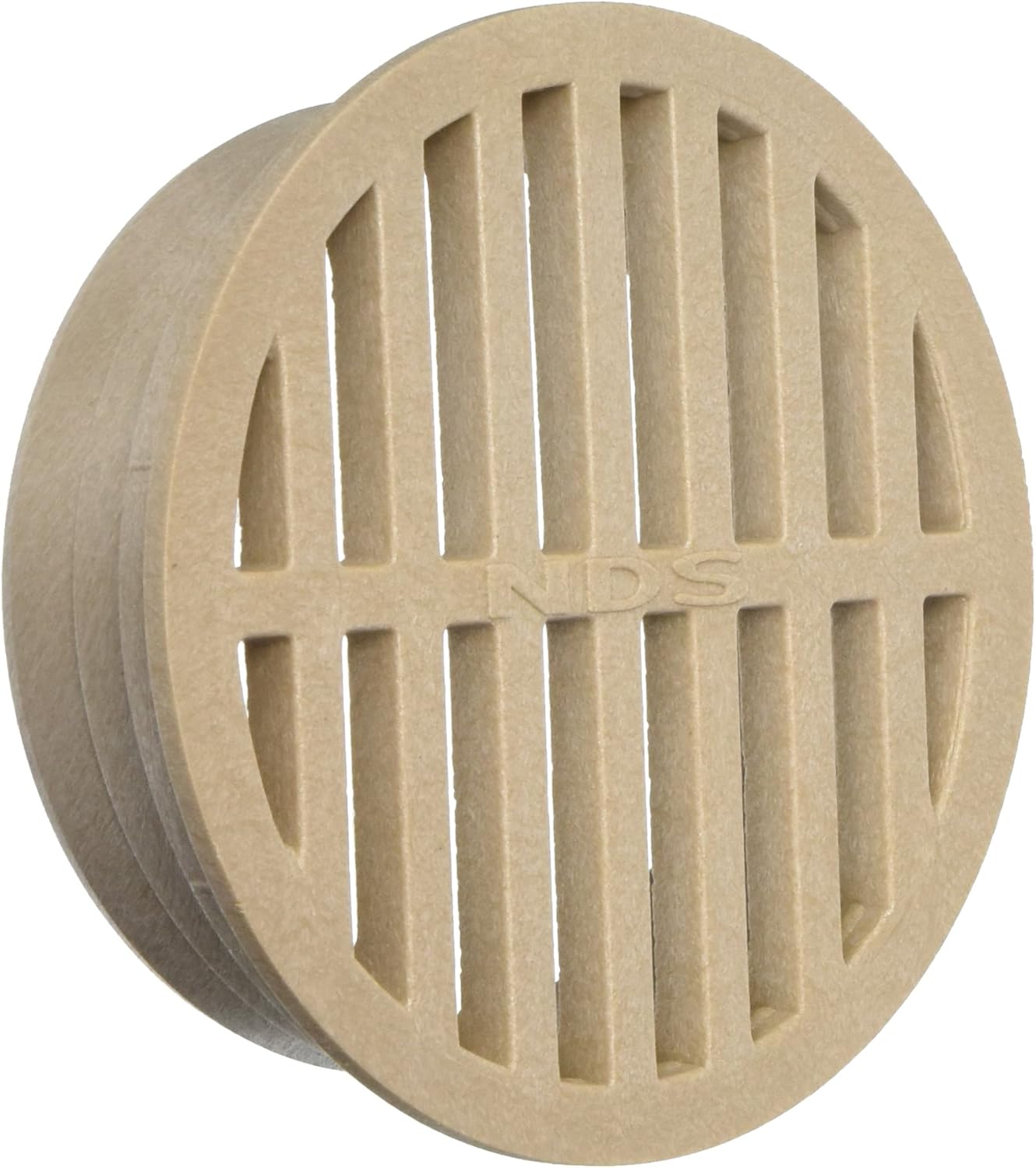

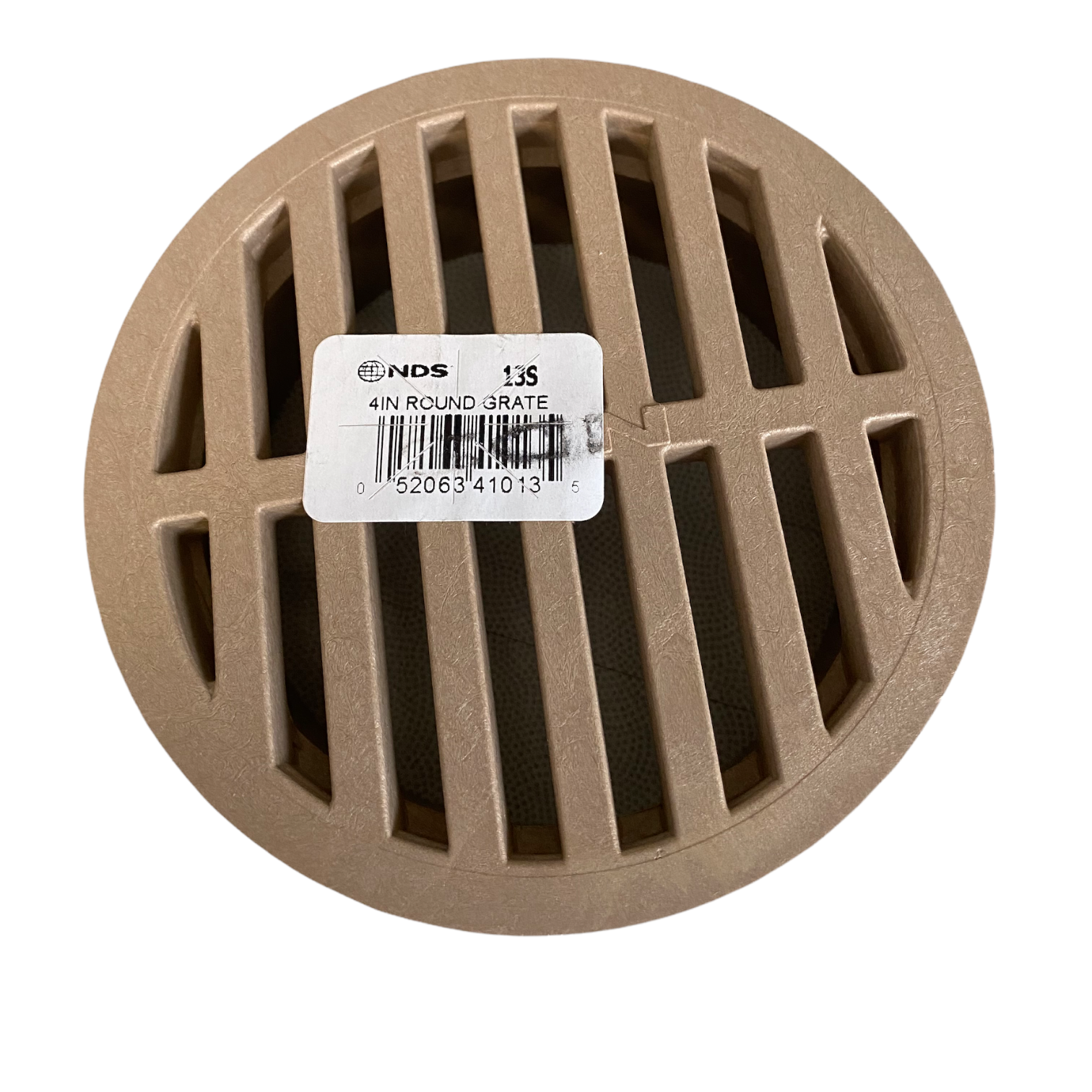

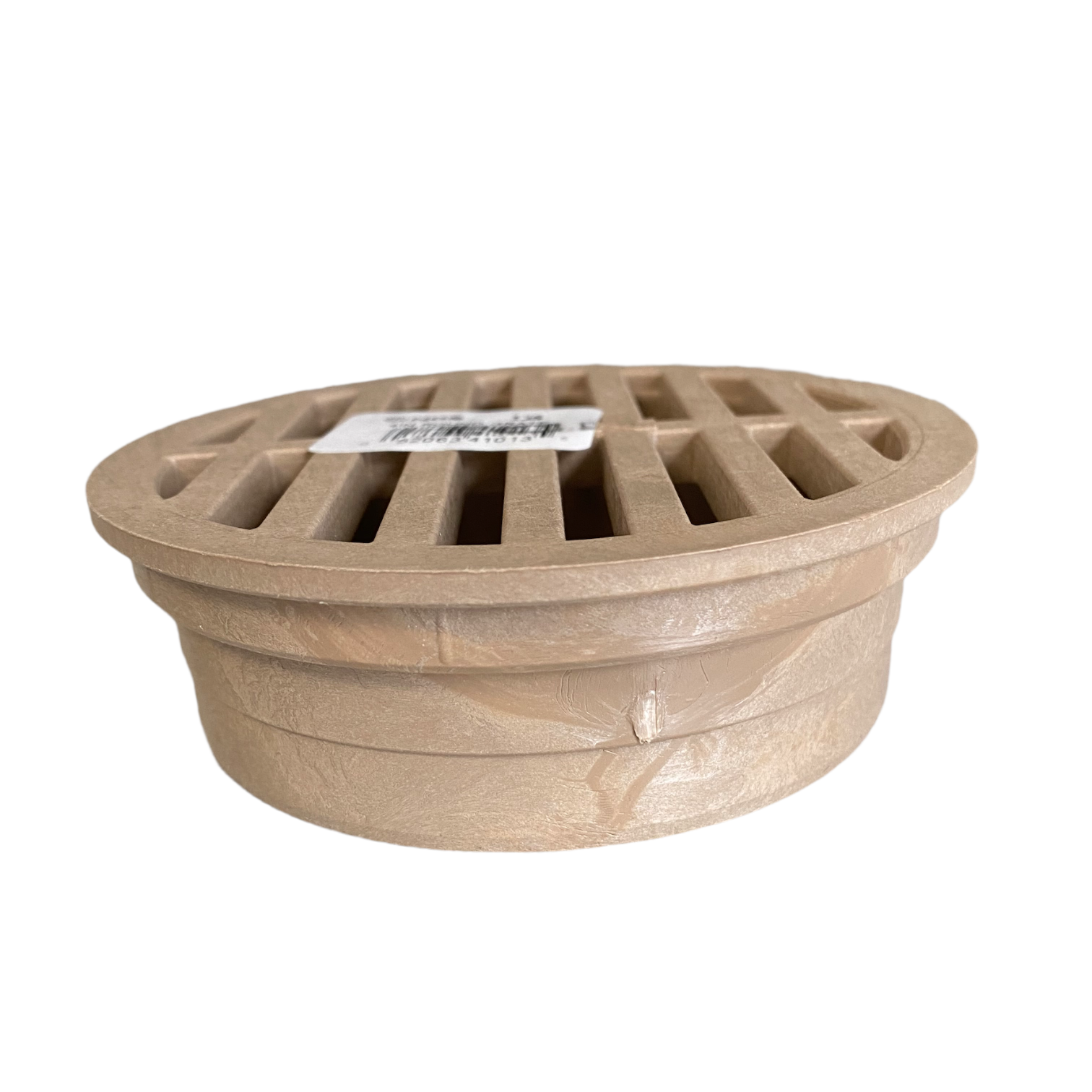

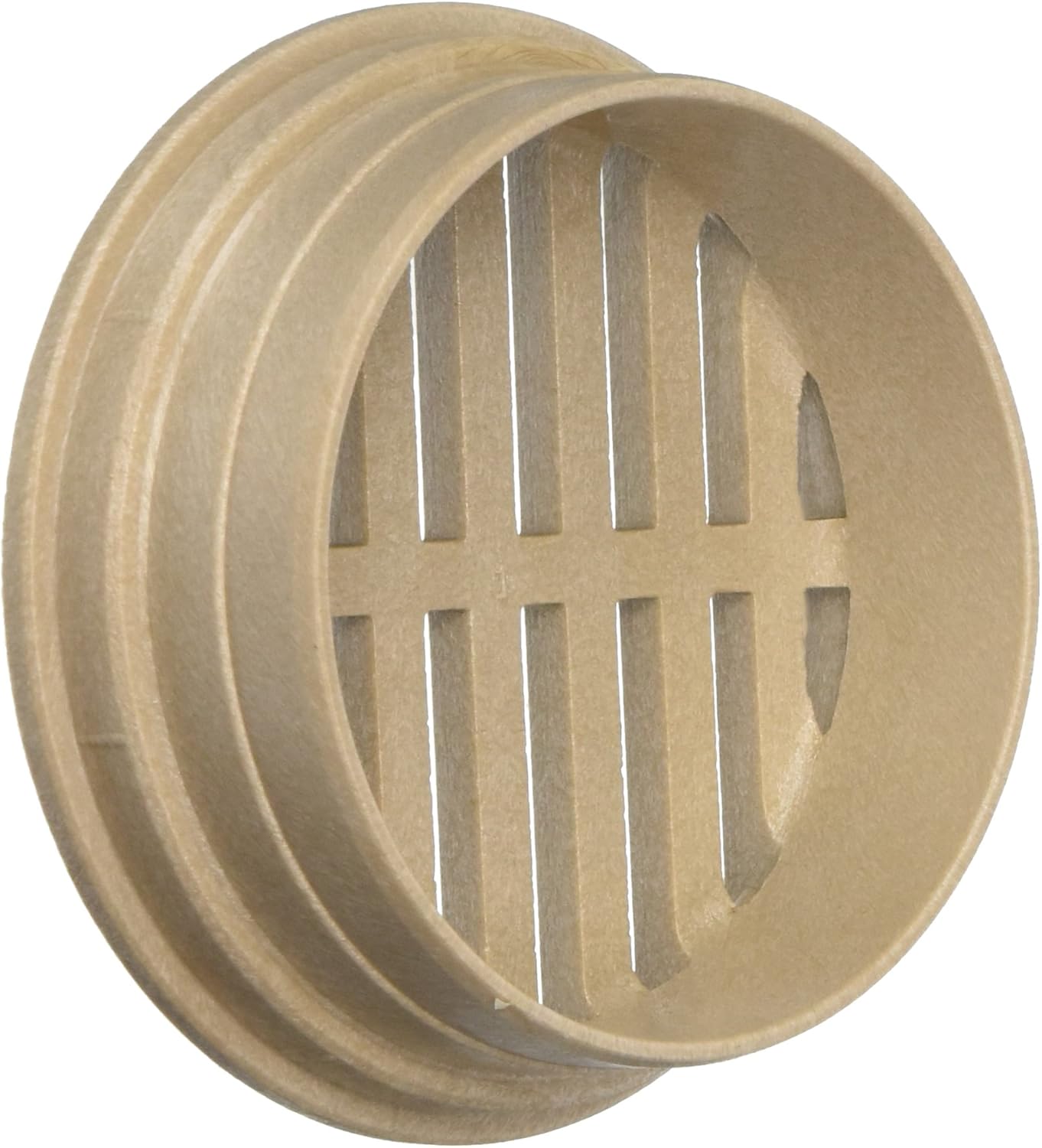

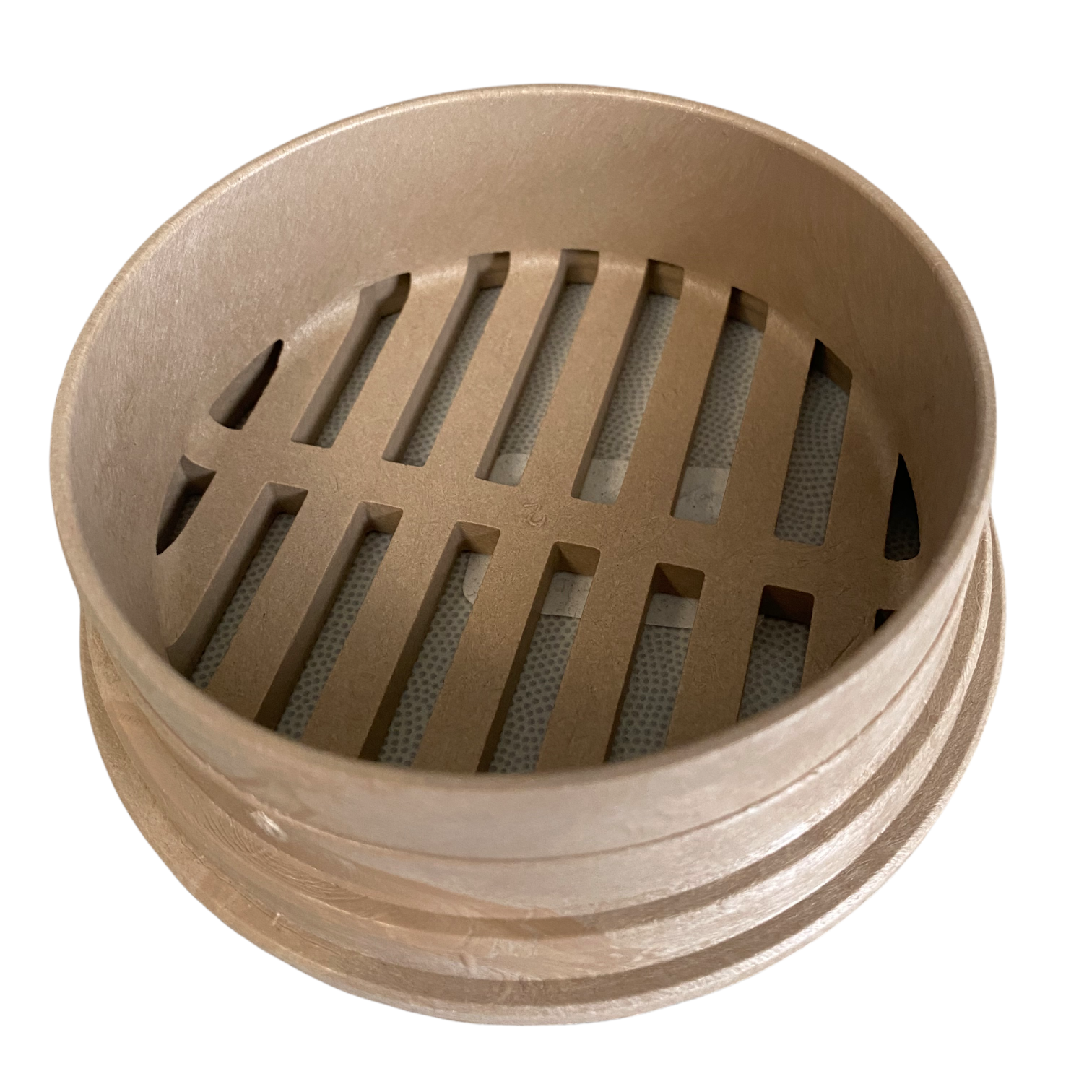

The NDS 13S 4inch Sand Rnd Poly Grate is designed for outdoor use, providing reliable surface drainage for patios, walkways, lawns, and other light-traffic outdoor areas. Molded from structural foam polyolefin, this heel-proof grate resists rust, chemicals, and sun exposure while fitting standard 4" drainage systems.

• Durable
• Lightweight
• UV-stabilized
• Heel-proof design
• Rust-resistant
• Chemical-resistant
• Maintenance-free

Product Highlights

Ideal for driveways, landscaped areas, patios, atriums and any location that requires shallow surface drainage.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 13S
• Country of Origin: Mexico

Technical Specifications

• Item Model Number: 13S
• Product Dimensions: 4.63 x 4.63 x 1.5 inches
• Assembly required: No
• Batteries required: No
• Brand: NDS
• SKU: 13S
• Compatibility: Designed to connect to 4" sewer and drain pipe and fittings, 4" corrugated pipe, and 4" triple-wall pipe for a soil-tight fit.
• Material & Finish: Structural foam polyolefin (polypropylene family) in sand color with UV inhibitors to reduce fading and cracking.
• Dimensions: Approximately 4-5/8" diameter and 1-1/2" height; open surface area ~3.85 sq in for efficient flow.
• Performance: Heel-proof design suitable for pedestrians, bicycles and wheelchair traffic; flow capacity suitable for light stormwater runoff.
• Durability: Chemical-resistant, rustproof and maintenance-free; lightweight for easy handling and installation.
• Use Cases: Ideal for driveways, landscaped areas, patios, atriums and any location that requires shallow surface drainage.
