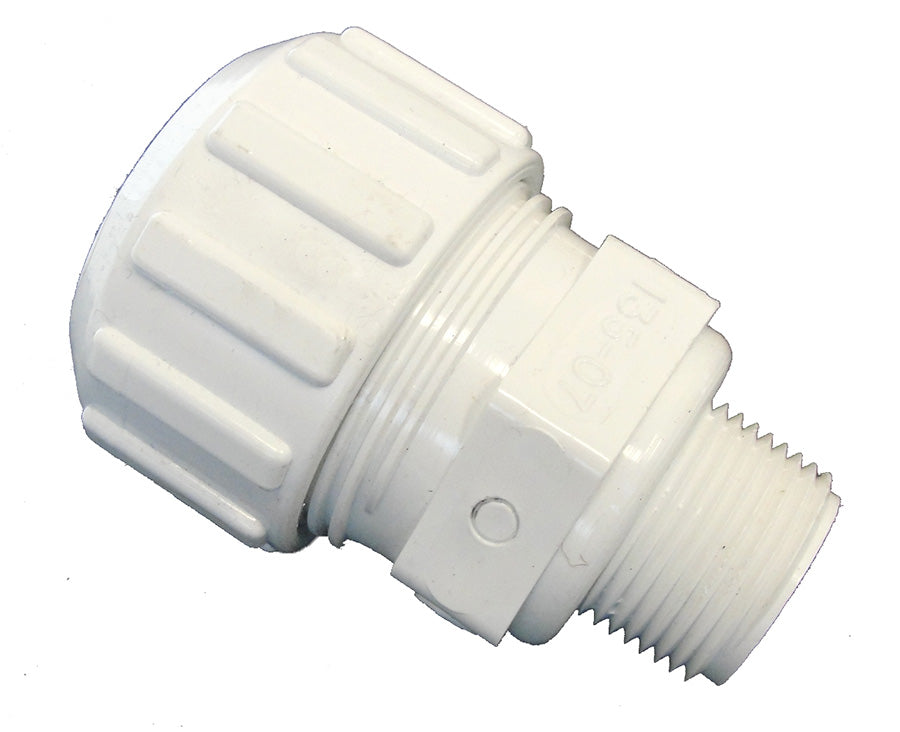

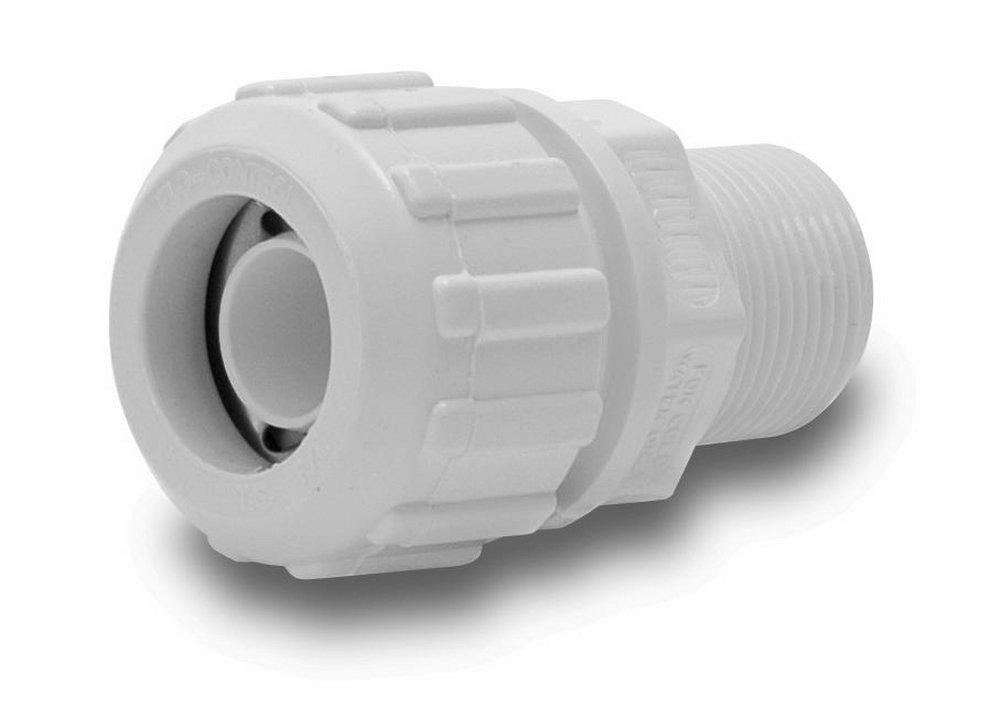

Nds 135-07 Flo-Lock 100 Series 3/4 in. IPS MIP Straight PVC Compression Adapter with Steel Gripper

Product Description

The NDS 135-07 FLO-LOCK 100 Series pipe adapter is designed for reliable connections. Constructed from durable PVC, this adapter ensures lasting performance for irrigation and drainage applications. It connects a 3/4 inch MPT fitting to a 3/4 inch IPS MPT fitting and is rated for a maximum pressure of 160 psi at 72 degrees Fahrenheit.

• Durable PVC construction for lasting reliability
• Connects 3/4 inch MPT to 3/4 inch IPS MPT pipes
• Rated for a maximum pressure of 160 psi

Product Highlights

Ideal for irrigation and drainage systems, the NDS Flo-Lock adapter provides a secure, leak-resistant connection for various plumbing needs.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 135-07
• Country of Origin: USA

Technical Specifications

• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM D-1785
• Clean Bagged: No
• Collection: Flo-Lock 100 Series
• End Connection 1: Compression
• End Connection 2: MPT
• End Connections: Compression x MIPT
• Fitting Size 1: 3/4
• Fitting Size 2: 3/4
• Fitting Sizes: 3/4 in
• Fitting Type: Compression Adapter
• Material: PVC
• Material Type: PVC
• Maximum Temperature: 72
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 160 psi
• Type: N13507
• UPC: 670686135077
• Color: White
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: MPT
• Connection Type 2: IPS MPT
• Connection Type: MPT|MPT
• Material Construction: PVC
• Pressure Rating: 160 psi
• Series: 100 Series
• Special Order Item: N
• Temperature Rating: 72 deg F
• UPC Code: 670686135077
• Certification: CERTIFIED NSF/ANSI 372
