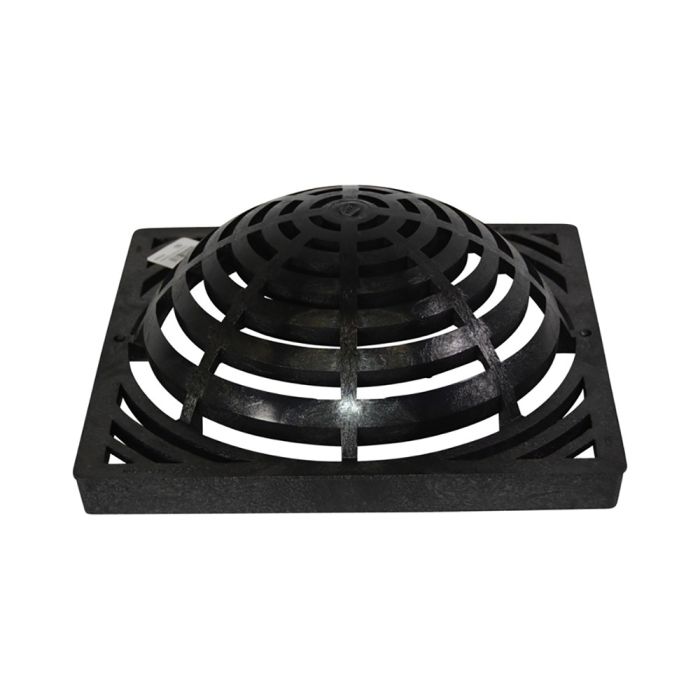

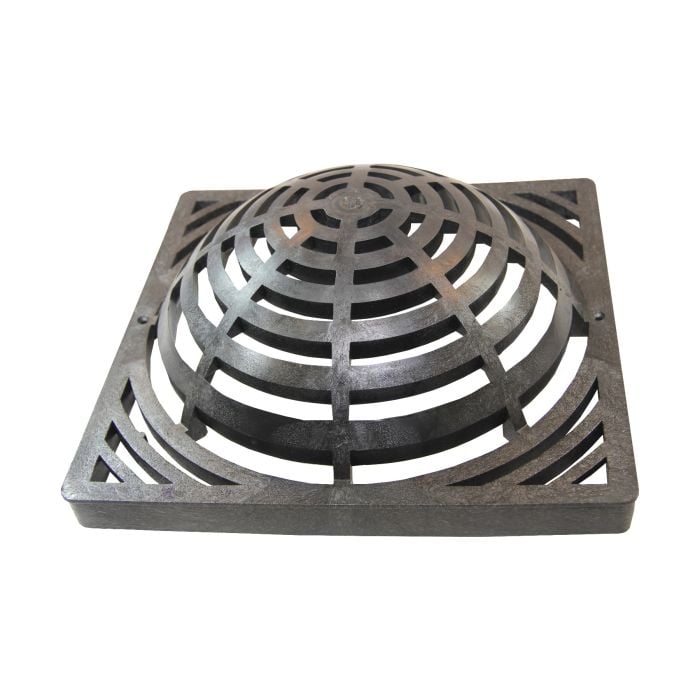

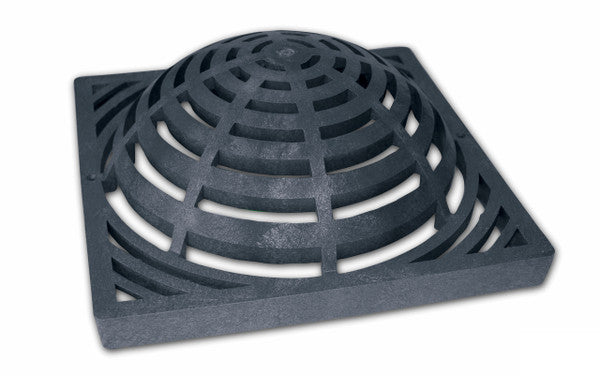

Nds 1290 Atrium Grate 12 inches Replacement SSS-1290

Product Description

The NDS 1290 12" Atrium Grate is ideal for planter beds, mulch areas, window wells, and areas prone to debris collection. This grate collects and removes excess water from driveways and patios. Designed for durability to handle light foot traffic, it's a proven alternative to traditional concrete drains.

• Ideal for planter beds, mulch areas, window wells, and areas prone to debris collection
• Helps to collect and remove excess water from driveways, patios and any other outdoor areas
• Designed for maximum durability to handle light foot traffic

Product Highlights

This NDS grate features UV inhibitors to prevent fading and cracking, is chemical-resistant, rustproof, maintenance-free, and easy to install.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1290

Technical Specifications

• Brand: NDS
• Manufacturer: NDS
• Part Number: SSS-1290
• Measurement System: inch
• Material: Plastic
• Use With: NDS 12" Catch Basin Series
• UV Inhibitors: Yes
• GPM Capacity: 154.79 GPM
• ADA Compliant: Yes
• Product Class: 10ND
• Grate Opening: 3/8"
• Color: Black
• Length: 11-3/4"
• Width: 11-3/4"
• Height: 6"
• Gallons Per Minute: 154.79 GPM
• Grate Width: 12.0" x 12.0" for NDS 1200 Series
• Grate Height: 1.125"
• Grate Material / Color / Finish: Plastic/HDPE - Black
• System: 1200 Series
• Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
• Product Type: Drain Grates
• Connection Size: 12 in.
• Connection Type: Catch Basin
• Flow Rate: 154 GPM
• Style: Atrium
• Shape: Square
• Size: 12 in.
• Pattern: Grid
• Actual dimension: 11 3/4" x 11 3/4" x 1 1/8" (6" Domed)
• Open surface area: 50.60 square inches
