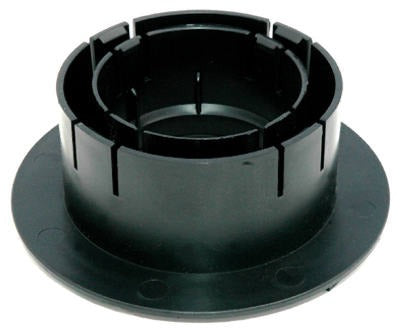

Nds 1244 Universal Locking Outlet 3 4 Inch Catch Basin

Product Description

The NDS 1244 is a universal locking outlet designed to create a secure, leak-resistant connection between a catch basin and drainage pipe. It accepts multiple pipe types and sizes, making it a versatile component for site drainage installations. The outlet locks into place to prevent displacement under load or backpressure. Licensed plumbers, drainage contractors, and site utility crews install this fitting as part of storm drainage and surface water management systems. Compatible pipe types include corrugated pipe, sewer drain pipe, Schedule 40 pipe, and triple wall pipe, all in 3-inch and 4-inch diameters.

This outlet is intended for use with NDS catch basin series in 9-inch, 12-inch, 18-inch, and 24-inch sizes, including the 930, 1230, 1830, and 2410 series basins. It is suited for residential and light commercial drainage applications where a reliable, removable pipe connection at the basin wall is required. The locking design allows for easier servicing and pipe removal compared to a friction-fit or glued outlet.

Key Features

• Universal fit accepts 3-inch and 4-inch corrugated pipe, sewer drain pipe, Schedule 40 pipe, and triple wall pipe
• Locking mechanism secures pipe connection and resists pullout and backpressure displacement
• Compatible with 9-inch, 12-inch, 18-inch, and 24-inch NDS catch basin series
• Sold individually; package quantity of 20 units per case
• Lightweight at 1.2 pounds for easy handling on site

Compatibility

Designed for use with NDS 930, 1230, 1830, and 2410 catch basin series in 9-inch, 12-inch, 18-inch, and 24-inch configurations. Accepts 3-inch and 4-inch corrugated pipe, 3-inch and 4-inch sewer drain pipe, 4-inch Schedule 40 pipe, and 3-inch and 4-inch triple wall pipe.

Installation Notes

Installation is typically performed by plumbers or drainage contractors during site grading or storm drainage rough-in. Confirm basin wall knockout size matches the outlet before installation. Ensure the basin is stable and the pipe run is properly graded before locking the outlet in place. Follow local plumbing and site drainage codes for pipe bedding, backfill compaction, and inspection requirements.

Technical Specifications

• Compatible Pipe Sizes: 3 inches, 4 inches
• Compatible Pipe Types: Corrugated pipe, sewer drain pipe, Schedule 40 pipe, triple wall pipe
• Compatible Catch Basin Series: 930, 1230, 1830, 2410 (9-inch, 12-inch, 18-inch, 24-inch)
• Weight: 1.2 pounds
• Unit of Measure: Each
• Package Quantity: 20 per case

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1244
