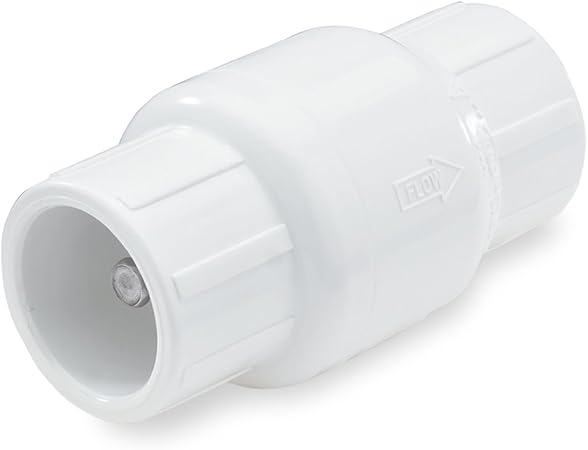

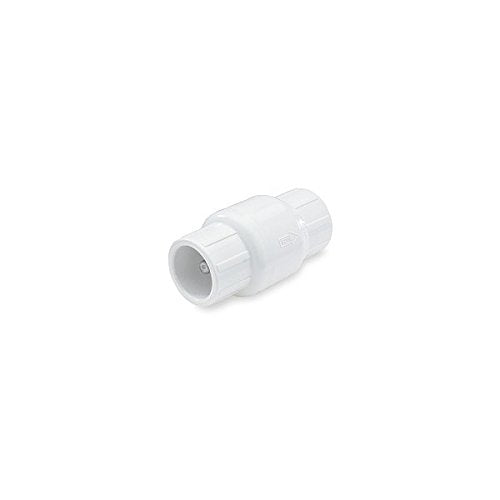

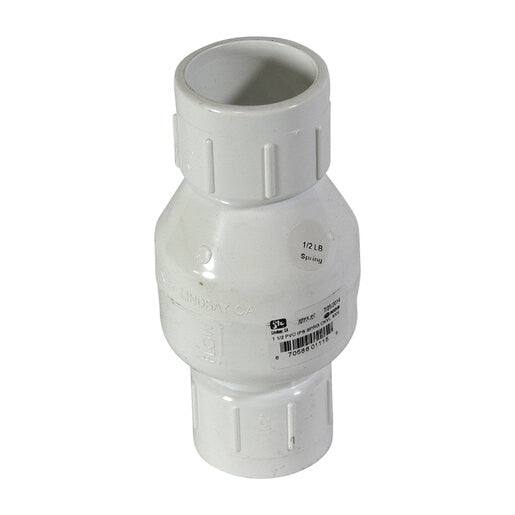

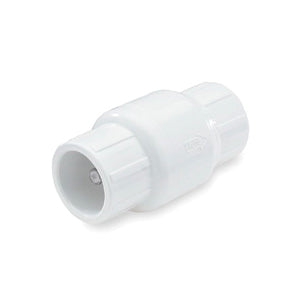

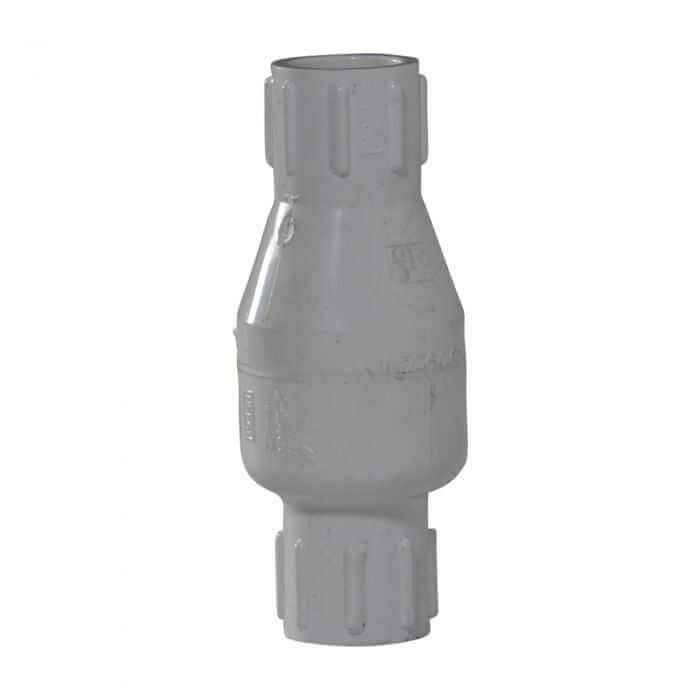

Nds 1011-15 1-1/2 in. Slip X 1-1/2 in. Slip PVC Spring Loaded Check Valve

Product Description

The NDS 1011-15 spring check valve is engineered for flow management in irrigation and drainage systems, preventing backflow. Its durable PVC body and EPDM softgoods ensure long-lasting performance. Designed for a 1-1/2 inch socket connection, this valve is rated for up to 200 psi. Molded in the USA.

• Effectively prevents backflow to protect irrigation and drainage systems
• Durable PVC body construction for long service life
• High-quality EPDM softgoods for a reliable seal

Product Highlights

The NDS 1011-15 check valve is a reliable choice for preventing backflow in irrigation and drainage systems.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1011-15
• Country of Origin: USA

Technical Specifications

• Size [Features]: 1-1/2" x 1-1/2"
• Material [Features]: PVC
• Approvals [Features]: NSF61, NSF372
• Connection Type [Features]: Socket x Socket
• Pressure Rating [Features]: 200 psi
• Connection Method [Features]: Socket
• Open Pressure (PSI) [Features]: 0.66
• Material: Polyvinyl Chloride
• Brand: NDS
• Exterior Finish: Pvc
• Inlet Connection Type: Slip
• Number of Ports: 2
• Outlet Connection Size: 1.5 Inches
• Specification Met: ansi
• Connector Type: Slip
• Thread Size: 1-1/2 inch
• Thread Type: Slip
• Valve Type: Check Valve
• Model Number: 1011-15
• UPC: 670686011159
• Included Components: CHECK VALVE PVC 1-1/2 SLIP
• Unit Count: 1.0 Count
• Nominal Size: 1-1/2 in
• Trim Material: Stainless Steel
• Body Material: PVC
• Softgoods Material: EPDM Rubber
• Pressure Rating: 200 PSI
• Temperature Rating: 72
• Connection Type: Slip x Slip
• Connection Size: 1-1/2 in. x 1-1/2 in.
• Item: Valve
• Type: Spring Check
• Series: 1011 Series
• Regulated: No
• Brand Name: NDS
