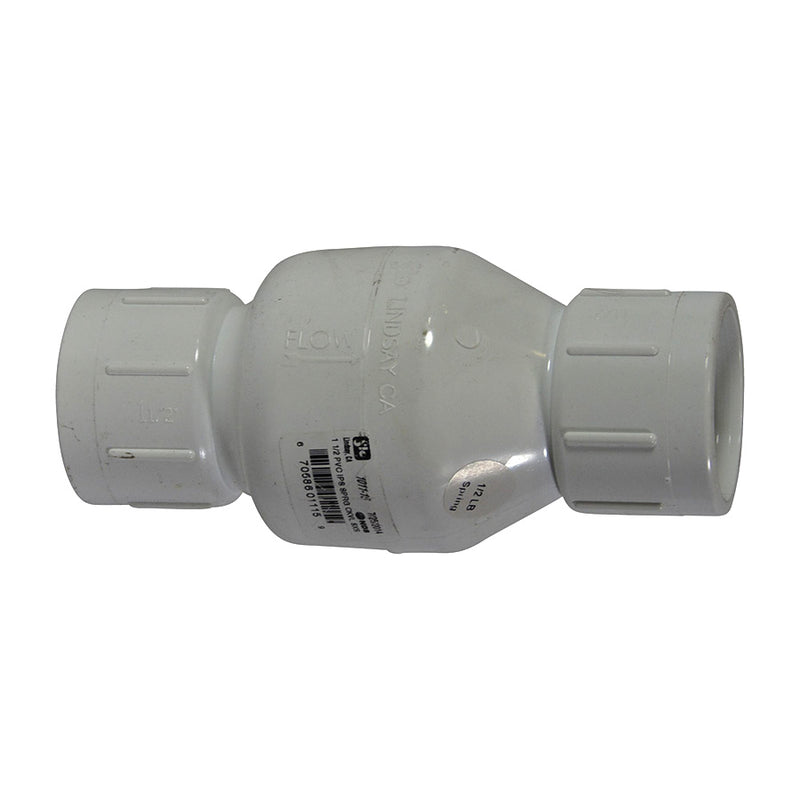

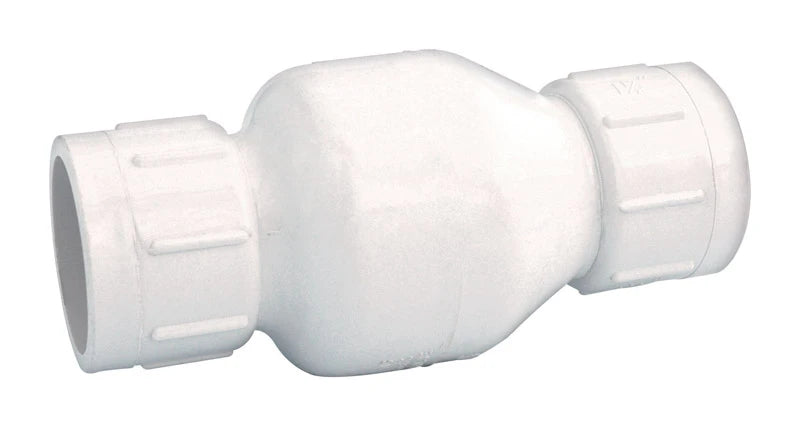

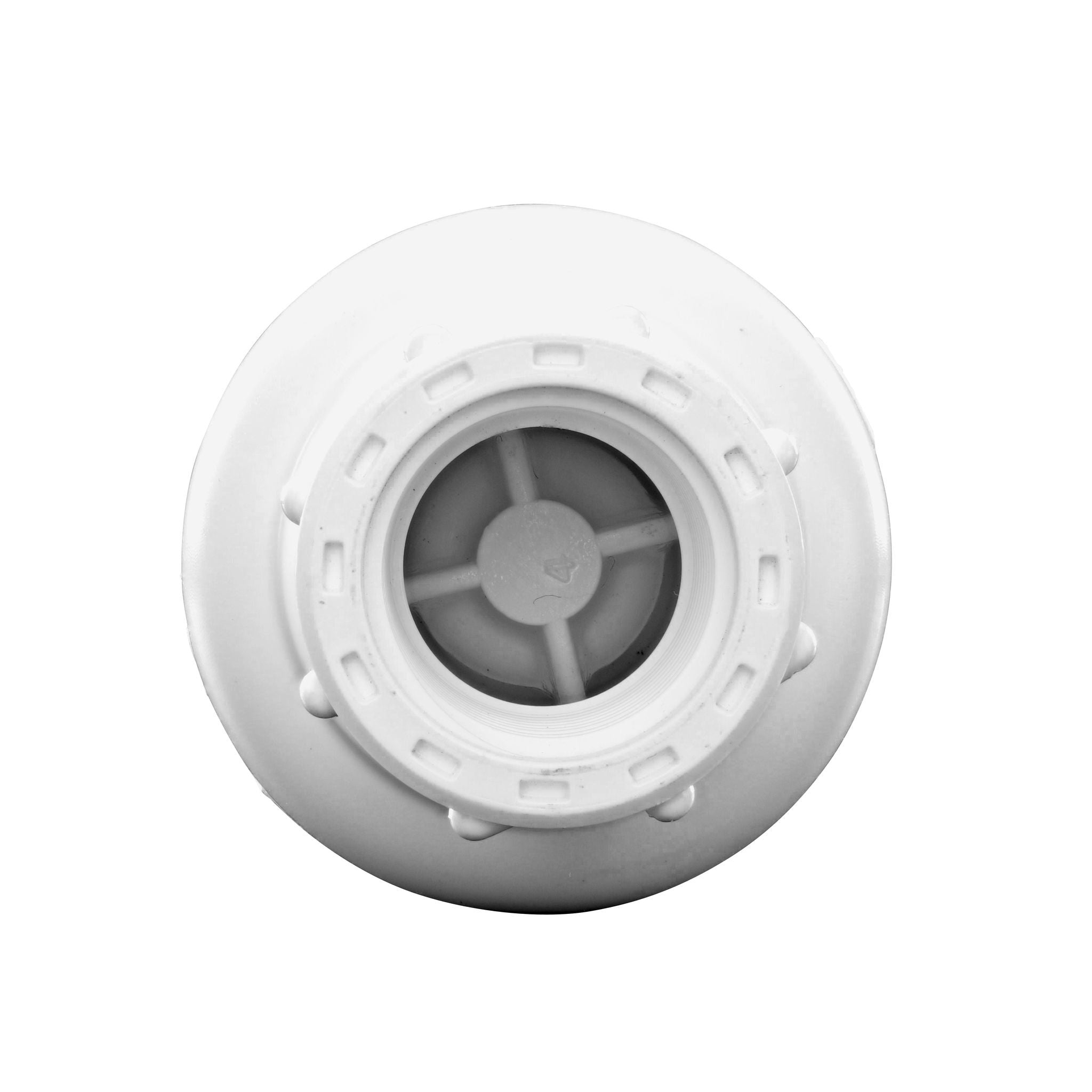

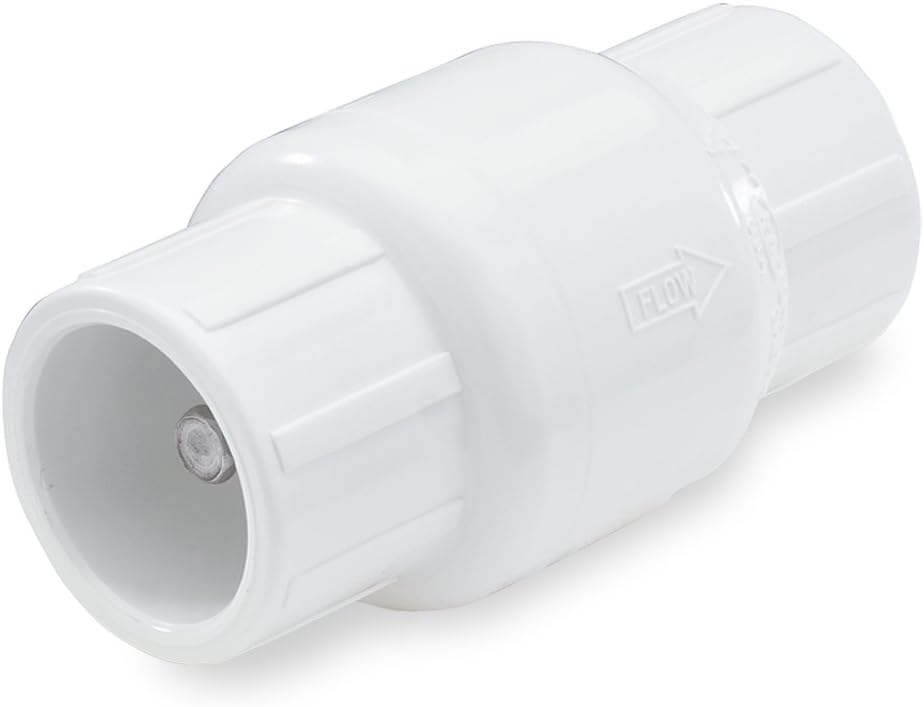

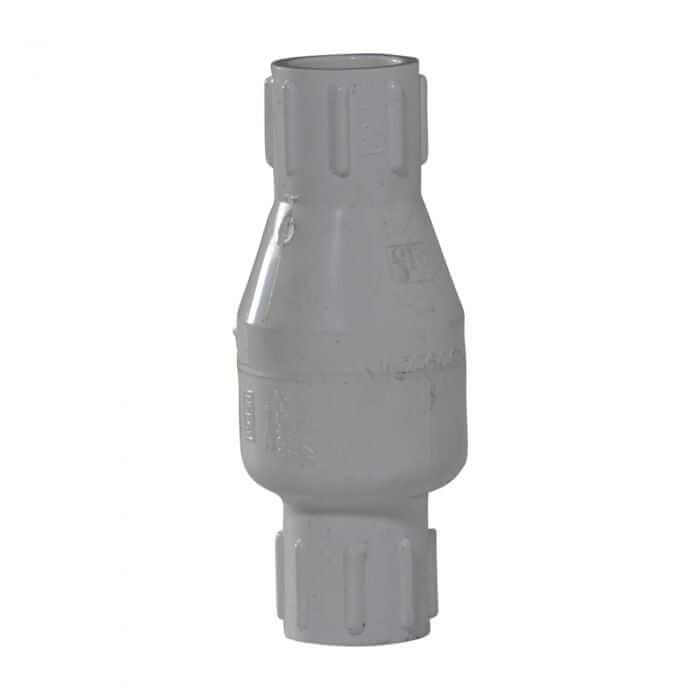

Nds 1011-07 3/4 inches PVC Ips Spring Check Valve S by S 4-1/8 inches Length

Product Description

The NDS 1011-07 3/4" PVC Ips Spring Check Valve S by S 4-1/8" Length prevents backflow in irrigation systems. It allows water to flow one-way when the water pressure is greater than the weight of the 1/2 lb spring. Made of high-impact PVC Type II material, it complies with all applicable ASTM and ANSI standards.

• Constructed from high-impact PVC Type II material for enhanced durability
• Equipped with a 1/2 pound spring that provides a positive seal with no back pressure
• Complies with all applicable ASTM and ANSI standards

Product Highlights

This NDS check valve is ideal for use in spas, swimming pools, industrial applications, and irrigation systems.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1011-07
• Country of Origin: USA

Technical Specifications

• Material: PVC
• Certification: Ansi
• Exterior Finish: Pvc
• Specification Met: ansi
• Batteries Required?: No
• Included Components: Check Valve
• Manufacturer: NDS Raindrip
• Model / MPN: 1011-07
• Product Type: VALVE
• Size [Features]: 3/4"
• Approvals [Features]: NSF61, NSF372
• Connection Type [Features]: Socket x Socket
• Pressure Rating [Features]: 200 psi
• Connection Method [Features]: Socket
• Open Pressure (PSI) [Features]: 2.24
• Inlet Connection Type: Slip
• Maximum Operating Pressure: 150 Pound per Square Inch
• Number of Ports: 2
• Outlet Connection Size: 0.75 Inches
• Softgoods Material: EPDM Rubber
• Temperature Rating: 72 deg F
• Trim Material: Stainless Steel
• Nominal Size: 3/4 in
• Connection Type: Slip Joint
• Body Material: PVC
• Maximum Working Pressure: 150 PSI
• Maximum Temperature Rating: 140 degrees Fahrenheit
• Standards Compliance: ASTM and ANSI
• Suitable for: Horizontal and vertical mounting
