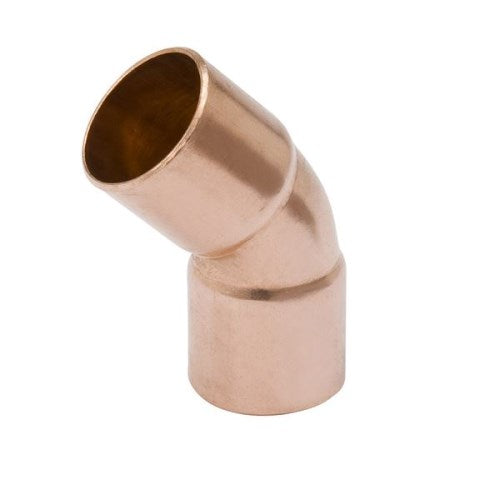

Ndl Industries W3063 45 Degree Copper Elbow 2-5/8 in Cxc

Product Description

The NDL INDUSTRIES W3063 is a 45-degree copper elbow designed for copper-to-copper sweat connections in refrigeration and HVAC piping systems. With a 2-5/8 inch connection size and a C x C (copper by copper) joint configuration, this fitting allows a controlled directional change in refrigerant or fluid lines without requiring threaded adapters or transitions. It is installed by HVAC technicians and refrigeration mechanics working on larger-diameter copper line sets where precise routing is required. The soldered joint provides a leak-resistant, durable connection suited for high-pressure system applications.

This elbow is used in commercial and industrial refrigeration piping, large-tonnage HVAC systems, and chiller line installations where 2-5/8 inch OD copper tubing is specified. The 45-degree angle suits applications where a gradual directional offset is preferable to a sharp 90-degree turn, helping to reduce flow restriction and mechanical stress on the line. Installers working on rooftop units, condensing unit suction lines, or commercial refrigeration racks commonly use this fitting size.

Key Features

• 45-degree elbow geometry for gradual directional changes in copper piping runs
• 2-5/8 inch connection size suits large-diameter commercial and industrial line sets
• C x C sweat connection compatible with standard copper tubing and solder or brazing alloys
• Copper construction provides corrosion resistance and reliable long-term performance in refrigerant and fluid service
• Sold in box quantities of 4, reducing per-unit cost on multi-fitting jobs

Compatibility

Designed as an OEM-style sweat fitting for use with 2-5/8 inch OD copper tubing in refrigeration and large-capacity HVAC piping applications.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician following applicable mechanical and refrigeration codes. Recover and isolate refrigerant from the system before cutting or fitting any copper lines. Ensure tubing ends are cut square, deburred, and cleaned before applying flux and brazing alloy for a sound joint. Use appropriate personal protective equipment when brazing, and allow joints to cool fully before restoring system pressure.

Technical Specifications

• Fitting Type: 45 Degree Elbow
• Connection Type: C x C (Copper by Copper Sweat)
• Connection Size: 2-5/8 inches
• Material: Copper
• Box Quantity: 4

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: W3063
