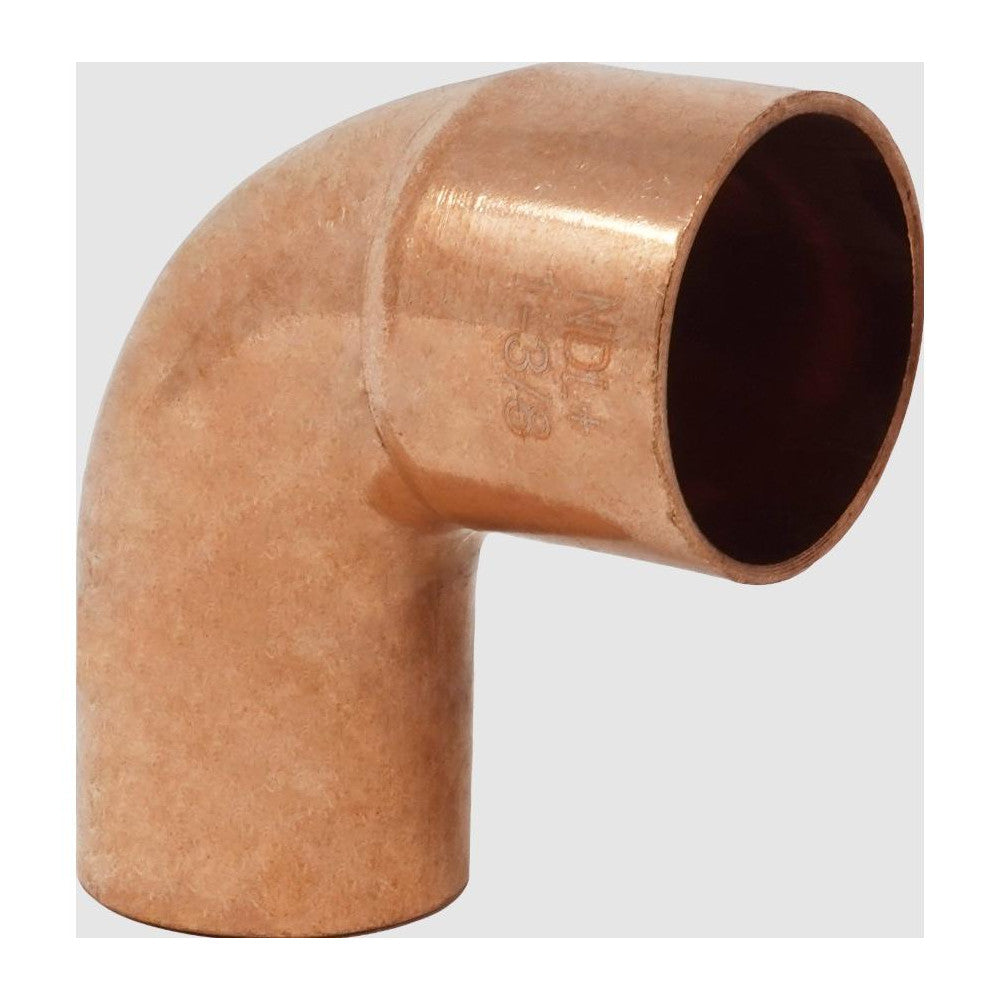

Ndl Industries w2817 90 Degree Long Turn Copper Elbow Ftg X C

Product Description

The NDL INDUSTRIES w2817 is a 90-degree long-turn elbow copper solder fitting with a street-style FTG x C connection. It is designed for use in refrigeration, air conditioning, and plumbing systems where copper tubing is joined by soldering. The long-turn geometry reduces flow restriction compared to standard short-turn elbows, making it well suited for ACR and refrigerant line applications. This fitting is installed by licensed HVAC technicians, refrigeration mechanics, and plumbers working with copper tube assemblies in both new construction and service work.

The w2817 fits 1/2-inch copper tube in ACR and Type L installations. The street connection on one end accepts a standard copper fitting end, allowing back-to-back fitting assemblies without a short nipple. Typical install scenarios include refrigerant suction and liquid lines, condensate drain lines, and general plumbing rough-in where a directional change is needed in a tight space. The fitting conforms to international standards for use with ACR and Type L copper tube. It is not rated for potable water service.

Key Features

• Long-turn 90-degree bend reduces flow restriction in refrigerant and fluid lines
• Street FTG x C connection allows direct fitting-to-fitting assembly
• Solder-joint construction compatible with standard copper brazing and soldering procedures
• Conforms to international standards for ACR and Type L copper tube applications
• Not rated for potable water — intended for refrigeration, AC, and non-potable plumbing use

Compatibility

Conforms with international standards for use with ACR and Type L copper tube in refrigeration, air conditioning, and plumbing applications. Not rated for potable water. Suitable for any application where the product specifications meet or exceed the required system values.

Installation Notes

This fitting is installed by licensed HVAC technicians, refrigeration mechanics, or plumbers using standard copper soldering or brazing practices. Evacuate and recover any refrigerant and shut off all fluid supply before cutting into an existing line. Follow applicable local mechanical codes and ASHRAE standards for refrigerant piping, and adhere to IPC requirements for non-potable plumbing installations. Do not use on potable water systems.

Technical Specifications

• Fitting Type: 90 Degree Long Turn Elbow
• Connection Type: FTG x C (Street)
• Tube Size: 1/2 inch
• Material: Copper
• Application: ACR, Refrigeration, Air Conditioning, Plumbing (non-potable)
• Weight: 0.75 pounds

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: w2817
