Ndl Industries W2386 Copper Street Elbow 2-1/8 in Ftg X C

Product Description

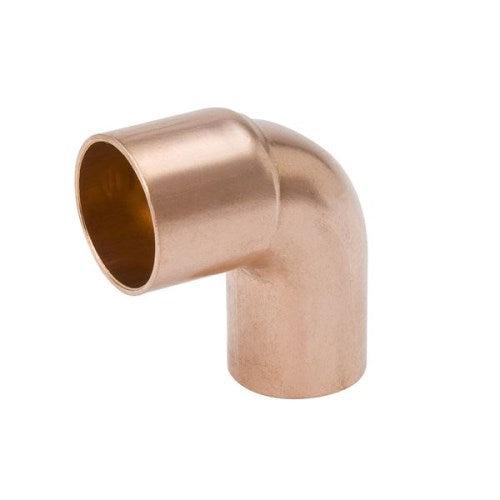

The NDL INDUSTRIES W2386 is a 90-degree short radius copper street elbow designed for directional changes in copper tubing systems. One end terminates in a fitting-to-fitting (FTG) male end, while the other accepts a standard copper tube (C) connection, allowing this elbow to insert directly into another fitting socket without requiring an additional coupling. The short radius design keeps the fitting compact, which is useful in tight spaces where standard-radius elbows will not fit. Sized at 2-1/8 inches, this elbow is used in refrigerant, ACR, and similar copper piping applications common in commercial and residential mechanical systems.

This street elbow is suited for copper tubing installations in HVAC, refrigeration, and related mechanical systems where a 90-degree directional change is required. The FTG x C configuration is standard in ACR copper work, allowing the fitting to mate directly with other fittings in a run. It is typically installed by HVAC technicians and refrigeration mechanics during new construction, system rework, or component replacement. Sold in a box quantity of 5, making it practical for contractors who need multiple fittings for a single job or ongoing service stock.

Key Features

• 90-degree short radius elbow for directional changes in confined spaces
• FTG x C connection type allows direct fitting-to-fitting installation without an additional coupling
• 2-1/8 inch connection size suits ACR and refrigerant copper tubing applications
• Copper construction compatible with standard brazing and soldering procedures
• Sold in a box quantity of 5 for multi-fitting jobs

Compatibility

Designed as an OEM-style replacement and new-installation fitting for copper tubing systems using 2-1/8 inch FTG x C connections, typical in HVAC and refrigeration piping.

Installation Notes

Installation should be performed by a licensed HVAC technician or refrigeration mechanic familiar with copper brazing or soldering procedures. Recover and isolate any refrigerant before opening the system, following applicable EPA and local regulations. Clean and deburr all tube ends before assembly, and use appropriate flux and filler material rated for the application. Follow ASHRAE, IMC, and local mechanical code requirements for joint preparation and pressure testing after installation.

Technical Specifications

• Fitting Type: 90 Degree Street Elbow - Short Radius
• Connection Type: FTG x C
• Connection Size: 2-1/8 inches
• Material: Copper
• Box Quantity: 5

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: W2386
