Ndl Industries W2363 Copper Street Elbow 2-5/8 in Ftg X C

Product Description

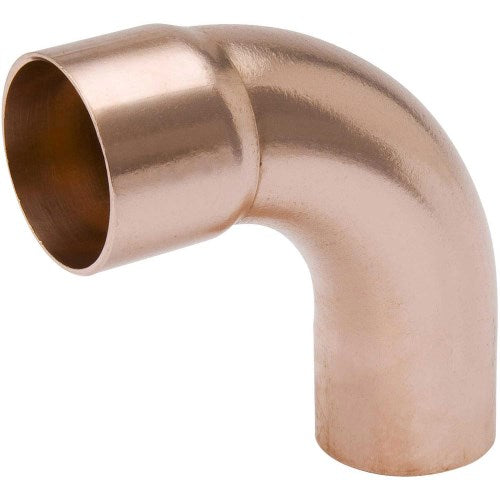

The NDL INDUSTRIES W2363 is a 90-degree long-radius copper street elbow sized at 2-5/8 inches with a FTG x C (fitting-to-copper) connection. This fitting is used to change flow direction in copper piping systems, with the long-radius sweep reducing turbulence and pressure drop compared to short-radius elbows. The street configuration — with one male fitting end and one female socket end — allows direct connection to another fitting without requiring an additional coupling. Plumbers and HVAC technicians install this fitting in refrigeration, HVAC, and plumbing applications where a 90-degree directional change is needed and space allows for the longer sweep.

This elbow is suited for refrigeration line sets, ACR piping, and commercial or residential plumbing systems using 2-5/8-inch copper tubing. The FTG x C ends accommodate standard sweat (solder) connections, making it compatible with typical copper piping workflows. The long-radius geometry is preferred in systems where minimizing flow restriction is a priority, such as refrigerant distribution or high-flow domestic water lines.

Key Features

• 90-degree long-radius street elbow reduces flow turbulence compared to short-radius fittings
• FTG x C connection allows direct fitting-to-fitting assembly without an extra coupling
• 2-5/8-inch connection size suitable for ACR and large-diameter copper piping systems
• Copper construction compatible with standard sweat (solder) installation methods
• Box quantity of 2 supports both single-point and paired installation needs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-5/8-inch copper piping systems using sweat connections, including ACR refrigeration line sets and large-diameter plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or HVAC technicians using standard sweat-soldering tools including a torch, flux, and appropriate lead-free solder per local plumbing codes. Shut off and depressurize the system and purge any refrigerant per EPA Section 608 requirements before cutting into refrigerant lines. Clean and flux both the fitting and tube ends thoroughly before applying heat to ensure a full, leak-free solder joint. Follow all applicable IPC or IFGC code requirements for the specific installation environment.

Technical Specifications

• Fitting Type: 90 Degree Street Elbow - Long Radius
• Connection Type: FTG x C
• Connection Size: 2-5/8 inches
• Material: Copper
• Box Quantity: 2

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: W2363
