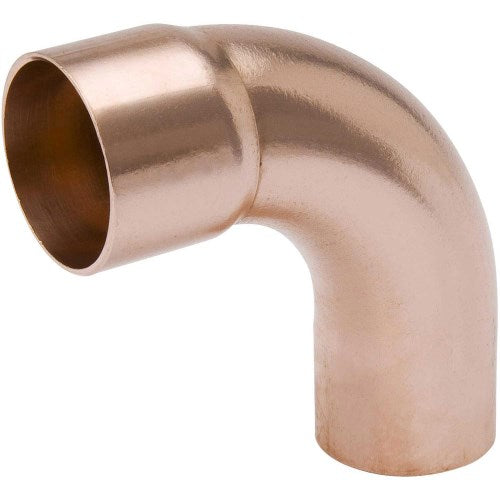

Ndl Industries W2355 Copper Street Elbow 1-5/8 in Ftg X C

Product Description

The NDL INDUSTRIES W2355 is a 90-degree long radius copper street elbow sized at 1-5/8 inches with a FTG x C (fitting by cup) connection type. Designed for use in copper piping systems, this street elbow allows a direction change of 90 degrees while connecting directly into another fitting without requiring an additional coupling. The long radius design reduces turbulence and flow restriction compared to standard short radius elbows. Licensed plumbers and HVAC technicians install this fitting in both supply and return line configurations where space permits the longer sweep.

This elbow is suited for residential and light commercial copper piping installations, including refrigerant line sets, hydronic systems, and domestic water distribution where 1-5/8 inch copper tubing is used. The FTG x C configuration means one end accepts a soldered cup connection and the other end is swaged to slide directly into a standard cup fitting, eliminating the need for an extra coupling in tight transitions.

Key Features

• 90-degree long radius sweep for reduced flow restriction compared to short radius fittings
• Street elbow configuration with FTG x C ends for direct fitting-to-fitting connections
• 1-5/8 inch connection size for use with standard 1-5/8 inch copper tubing
• Copper construction compatible with standard sweat soldering techniques
• Sold in a box quantity of 5 units

Compatibility

Designed as an OEM-style replacement and new-installation fitting for copper piping systems using 1-5/8 inch FTG x C connections.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with applicable local codes, IPC, and IFGC guidelines. Shut off and depressurize the system before cutting into existing lines. Clean and flux all mating surfaces thoroughly before applying heat with a torch for sweat soldering. Allow the joint to cool completely before restoring pressure or refrigerant charge to the system.

Technical Specifications

• Basic Fitting Type: Elbow
• Specific Fitting Type: 90 Degree Street Elbow - Long Radius
• Connection Type: FTG x C
• Connection Size: 1-5/8 inches
• Box Quantity: 5

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: W2355
