Ndl Industries W1009 Copper Coupling 3/8 in 1000 Psi

Product Description

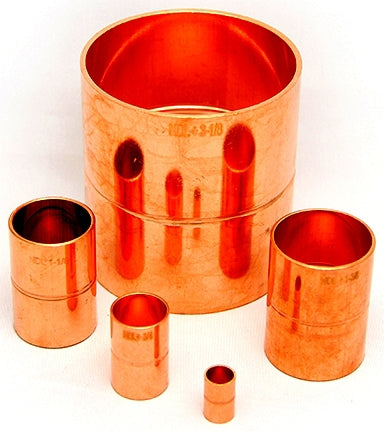

The NDL INDUSTRIES W1009 is a straight copper coupling fitting designed for soldered connections in HVAC and refrigeration piping systems. It features a rolled stop design and carries a 1000 PSI pressure rating, making it suitable for demanding commercial, industrial, and residential applications. The fitting accepts female soldered connections on both ends and is rated to 250 degrees F. It is typically installed by licensed HVAC technicians and plumbers during system assembly, repair, or retrofit work on copper refrigerant or fluid lines.

This coupling is suited for use in commercial, industrial, and residential HVAC systems as well as refrigeration installations. Its 3/8 inch by 3/8 inch C x C configuration makes it a straightforward choice for joining same-size copper tubing runs. The rolled stop ensures consistent insertion depth during soldering, reducing the chance of misalignment or incomplete joints in tight installations.

Key Features

• 1000 PSI pressure rating for use in high-pressure refrigeration and HVAC lines
• Rated to 250 degrees F for compatibility with a wide range of system operating conditions
• Rolled stop design ensures consistent solder joint depth and alignment
• Female soldered x female soldered end connections for copper-to-copper sweat joining
• Meets ANSI/ASME B16.22 and UL standards; CRN and TSSA recognized
• Straight configuration for in-line copper tubing connections

Compatibility

Designed for use in commercial, industrial, and residential HVAC systems and refrigeration applications requiring 3/8 inch copper sweat fittings per ANSI/ASME B16.22.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber. Recover all refrigerant and depressurize the system fully before cutting or removing any existing fittings. Use appropriate flux and solder rated for the working pressure and temperature of the system. Follow all applicable local mechanical codes and ANSI/ASME B16.22 requirements when making sweat connections.

Technical Specifications

• Pressure Rating: 1000 PSI
• Temperature Rating: 250 degrees F
• Size A: 3/8 inches
• Size B: 3/8 inches
• End Connection: Female Soldered x Female Soldered
• Material: Copper
• Configuration: Straight
• Stop Type: Rolled Stop
• Application: Commercial, Industrial, and Residential HVAC and Refrigeration
• Applicable Standards: ANSI/ASME B16.22, TSSA, CRN, UL

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: W1009
