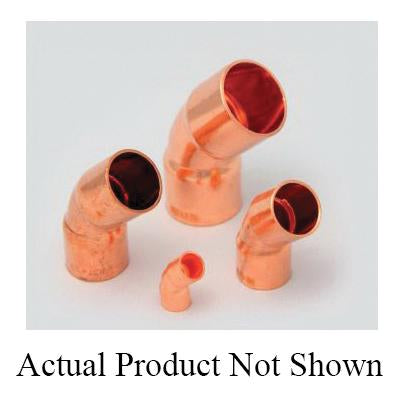

Ndl Industries n-3012 45 Degree Copper Elbow 1/4 in

Product Description

The NDL INDUSTRIES n-3012 is a 45-degree copper elbow fitting designed for copper-to-copper connections in plumbing and HVAC refrigerant or fluid-line applications. Built entirely from copper, this fitting changes line direction by 45 degrees without reducing flow path diameter. Both connection ends accept 1/4-inch copper tubing, and the outside diameter measures 3/8 inch. It is sized and configured for use by licensed plumbers and HVAC technicians working on small-diameter copper tubing runs.

This fitting is suited for residential and light commercial applications where a 45-degree directional change is needed in a 1/4-inch copper line. Typical install scenarios include refrigerant suction or liquid lines, condensate drain lines, and potable or process water distribution tubing. Both sweat-solder and press-fit copper joining methods are common with fittings of this type, depending on jobsite tooling and code requirements.

Key Features

• 45-degree angle change for routing copper tubing around obstructions
• Copper-to-copper connection on both ends — no dissimilar metal transitions
• 1/4-inch connection size on both ends for consistent line sizing
• 3/8-inch outside diameter for standard copper tubing fitment
• Full copper construction resists corrosion and handles typical refrigerant and water service conditions

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/4-inch copper tubing systems in plumbing and HVAC applications.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with applicable local plumbing codes and ASHRAE or IFGC guidelines. Shut off and isolate the refrigerant or water supply and relieve system pressure before cutting into any existing line. Clean and deburr tubing ends before joining to ensure a leak-free sweat or press connection. Do not over-heat the fitting during soldering, as excessive heat can compromise copper integrity.

Technical Specifications

• Fitting Type: 45-Degree Elbow
• Connection Size 1: 1/4 inch
• Connection Size 2: 1/4 inch
• Connection Type: Copper x Copper
• Outside Diameter: 3/8 inch
• Material: Copper
• Material Construction: Copper

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: n-3012
