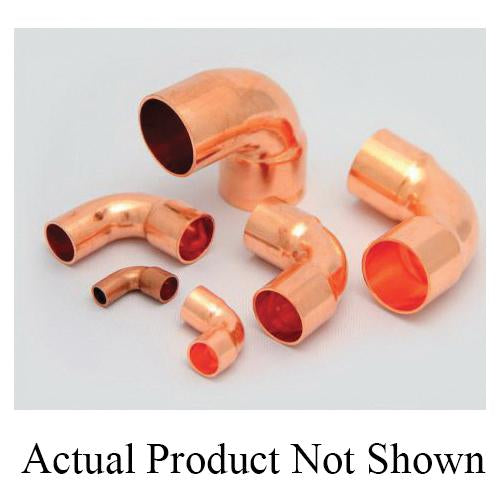

Ndl Industries n-2009 90 Degree Copper Elbow 1/4 in

Product Description

The NDL INDUSTRIES n-2009 is a 90-degree copper elbow fitting designed for sweat or press connections in refrigeration, HVAC, and plumbing tubing runs. Both connection ports accept 1/4-inch copper tubing, and the fitting carries a 3/8-inch outer diameter. Constructed entirely from copper, this elbow delivers reliable directional changes in tight installations where corrosion resistance and heat conductivity are priorities. Plumbers, refrigeration technicians, and HVAC installers use this type of fitting when routing quarter-inch copper lines through walls, equipment cabinets, or mechanical rooms where a 90-degree turn is required.

This fitting is suited for residential and light commercial applications involving 1/4-inch copper tubing systems. Typical uses include refrigerant line stub-outs, condensate or small-diameter water supply routing, and instrument tubing runs. Its compact copper construction makes it appropriate for both new installations and repair work where a standard 90-degree change of direction is needed in a small-diameter line.

Key Features

• 90-degree elbow geometry for right-angle direction changes in copper tubing runs
• 1/4-inch connection size on both ports for uniform line sizing
• 3/8-inch outer diameter for compatibility with standard sweat fittings and sleeves
• Full copper construction for corrosion resistance and high thermal conductivity
• Compact form factor suited for tight equipment cabinets and wall chases

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 1/4-inch copper tubing with a sweat or press connection type.

Installation Notes

Installation of this fitting is typically performed by licensed plumbers or certified HVAC-R technicians. Before soldering or pressing, isolate and depressurize the line and confirm the tubing ends are clean, deburred, and properly fluxed when using sweat methods. Follow applicable codes including IPC and IFGC for plumbing and gas-adjacent copper work. Do not overtighten or deform the fitting ends during preparation, as copper is a soft material susceptible to damage.

Technical Specifications

• Fitting Type: 90 Degree Elbow
• Connection Size 1: 1/4 inches
• Connection Size 2: 1/4 inches
• Connection Type: Copper x Copper
• Outer Diameter: 3/8 inches
• Material: Copper
• Material Construction: Copper

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: n-2009
