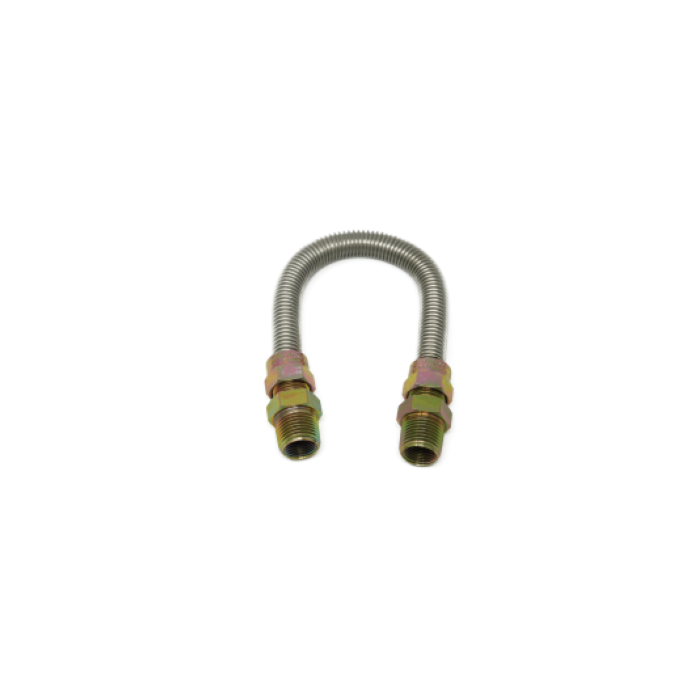

Ndl Industries G400-4142-36 Ss Gas Connector 36 in

Product Description

The NDL Industries G400-4142-36 is a stainless steel flexible gas connector designed to connect gas appliances to residential or commercial gas supply lines. With a 1-inch outer diameter and 3/4-inch inner diameter, this connector measures 36 inches in length and terminates in 3/4-inch male iron pipe (MIP) and 3/4-inch female iron pipe (FIP) fittings. It is used by licensed plumbers and gas fitters during appliance installation and replacement. The corrugated stainless steel construction provides flexibility for routing in tight mechanical spaces while maintaining a secure, leak-resistant connection.

This connector is suited for residential and light commercial gas appliance hookups, including ranges, dryers, water heaters, and similar equipment. The 36-inch length accommodates standard setback distances between the gas shutoff valve and the appliance inlet. The 3/4-inch NPT thread sizing on both ends matches common appliance inlets and gas supply valves found in residential installations. Licensed gas fitters typically specify this connector for straightforward appliance connections where a flexible corrugated line is required by local code.

Key Features

• Stainless steel corrugated construction for flexibility and durability in gas service
• 36-inch length suits standard appliance setback distances
• 1-inch OD with 3/4-inch ID for full flow through 3/4-inch pipe sizing
• 3/4-inch MIP x 3/4-inch FIP end fittings match common gas valve and appliance inlet threads
• Sold individually; available in box quantities of 10

Compatibility

Designed as an OEM-style replacement or new-installation flexible gas connector for residential and light commercial gas appliances using 3/4-inch NPT supply connections.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the main valve and verify zero pressure before disconnecting or connecting any gas line. Apply an approved pipe thread sealant or tape rated for gas service on all male threads before making up connections. Do not use flexible gas connectors in concealed locations unless explicitly permitted by local code.

Technical Specifications

• Outer Diameter: 1 inch
• Inner Diameter: 3/4 inch
• Length: 36 inches
• End Connections: 3/4 inch MPT x 3/4 inch FPT
• Material: Stainless Steel
• Item Weight: 0.928 pounds
• Box Quantity: 10

Standard Information

• Brand: NDL Industries
• Manufacturer Part Number: G400-4142-36
