Ndl Industries G303-3132-60 Gas Connector 60 Inches

Product Description

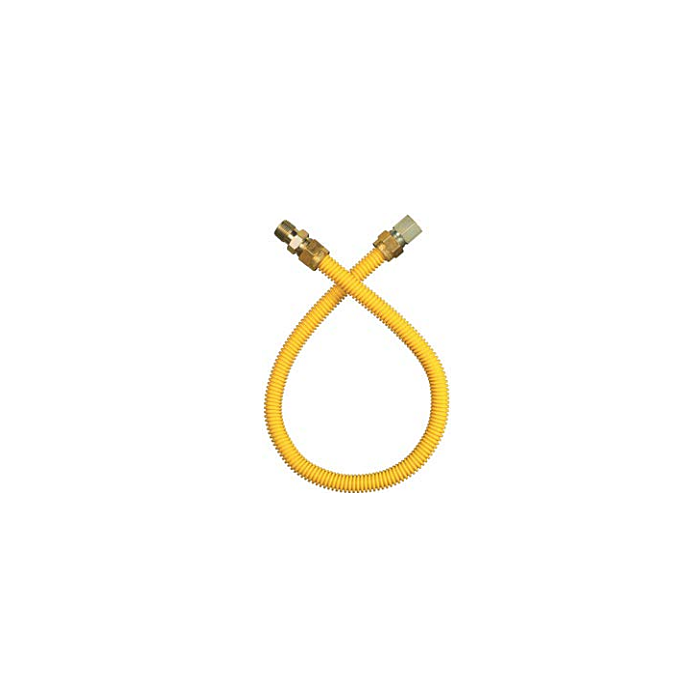

The NDL INDUSTRIES G303-3132-60 is a stainless steel coated flexible gas connector designed to connect gas appliances to residential or light commercial gas supply lines. With an overall length of 60 inches and 5/8 inch OD corrugated flexible tubing over a 1/2 inch ID core, this connector provides the reach needed for appliance installations where rigid pipe cannot be used. End fittings are threaded 1/2 inch FIP on one end and 1/2 inch MIP on the other, making direct connection to standard NPT gas supply and appliance inlets straightforward. Licensed plumbers and gas fitters typically handle installation in compliance with local gas codes and IFGC requirements.

This connector is suited for residential and light commercial gas appliance hookups including gas ranges, dryers, water heaters, and similar equipment connected to natural gas or propane supply lines. The 60 inch length gives installers flexibility when the appliance is positioned away from the gas outlet or when routing around cabinetry or structural elements. The stainless steel coated construction resists corrosion in typical indoor utility and kitchen environments.

Key Features

• 60 inch overall length for appliances requiring extended reach from the gas supply outlet
• Stainless steel coated corrugated flexible construction resists corrosion and mechanical damage
• 5/8 inch OD with 1/2 inch ID for standard residential gas flow capacity
• 1/2 inch FIP x 1/2 inch MIP NPT end fittings for direct connection to standard gas supply and appliance ports
• Sold individually; available in box quantities of 12 for contractor stocking

Compatibility

Designed as an OEM-style replacement or new-installation flexible gas connector for residential and light commercial gas appliances with 1/2 inch NPT supply and appliance inlet connections.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the IFGC. Shut off the gas supply at the meter or nearest upstream shutoff valve before disconnecting or connecting any gas piping. Apply an approved gas-rated thread sealant or PTFE tape rated for gas service to all threaded connections. Never reuse a previously installed flexible gas connector and never route a flexible connector through walls, floors, ceilings, or concealed spaces.

Technical Specifications

• Outside Diameter (OD): 5/8 inches
• Inside Diameter (ID): 1/2 inches
• Length: 60 inches
• End Connections: 1/2 inch MPT x 1/2 inch FPT (NPT)
• Construction: Stainless steel coated
• Item Weight: 1.314 pounds
• Box Quantity: 12

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: G303-3132-60
