Ndl Industries g303-3132-36 Gas Connector 36 Inches

Product Description

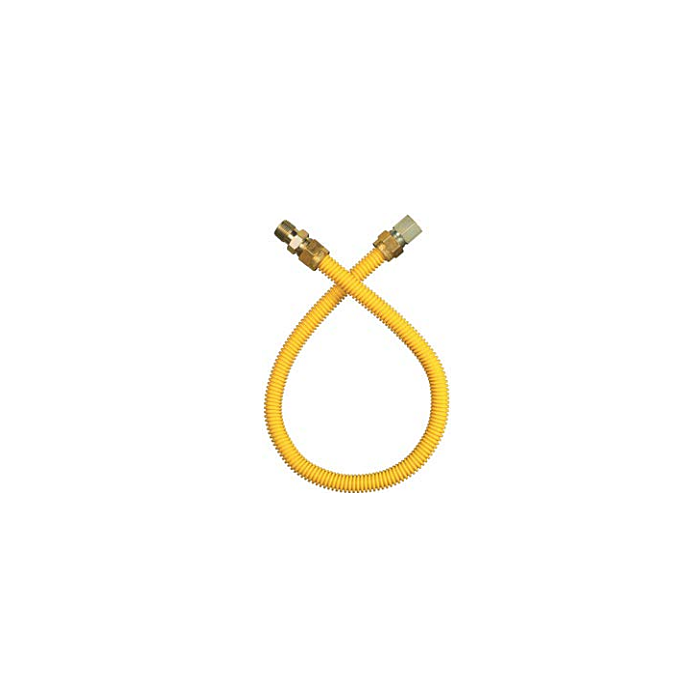

The NDL Industries g303-3132-36 is a stainless steel coated flexible gas connector designed for residential and light commercial gas appliance installations. Measuring 36 inches in length with a 5/8 inch OD and 1/2 inch ID corrugated inner core, this connector terminates with 1/2 inch FIP on one end and 1/2 inch MIP on the other. The stainless steel coated construction provides corrosion resistance and durability in typical utility and mechanical room environments. Licensed plumbers and gas fitters use this type of connector to make the final flexible connection between a rigid gas supply line and an appliance such as a range, dryer, or water heater.

This connector is suited for residential kitchens, laundry rooms, and mechanical spaces where a flexible gas piping connection is required between a shutoff valve and an appliance. The 36 inch length provides adequate reach for most standard appliance setups where the gas outlet is behind or beside the unit. The 1/2 inch NPT thread sizing is among the most common for residential gas appliance connections in North America.

Key Features

• Stainless steel coated flexible construction for corrosion resistance in utility environments
• 36 inch length accommodates standard appliance-to-supply-line reach requirements
• 5/8 inch OD with 1/2 inch ID corrugated core for rated gas flow capacity
• 1/2 inch FIP x 1/2 inch MIP end fittings match the most common residential gas appliance connection size
• Sold individually; available in a box quantity of 25 for service vehicle or wholesale stocking

Compatibility

Designed as an OEM-style flexible gas connector for residential and light commercial gas appliances using 1/2 inch NPT supply connections, including ranges, dryers, and water heaters.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes, IFGC requirements, and the appliance manufacturer instructions. Always shut off the main gas supply and verify zero pressure at the line before making or breaking any connection. Apply approved gas-rated thread sealant or tape to NPT fittings; do not overtighten. After installation, test all connections for leaks using an approved gas leak detection solution before returning the appliance to service.

Technical Specifications

• Outer Diameter: 5/8 inches
• Inner Diameter: 1/2 inches
• Length: 36 inches
• Connection Size: 1/2 inch MPT x 1/2 inch FPT
• Item Weight: 0.979 pounds
• Box Quantity: 25
• UPC: 055840036467

Standard Information

• Brand: NDL Industries
• Manufacturer Part Number: g303-3132-36
