Ndl Industries g303-3132-12 Gas Connector 12 in 1/2 Mpt Fpt

Product Description

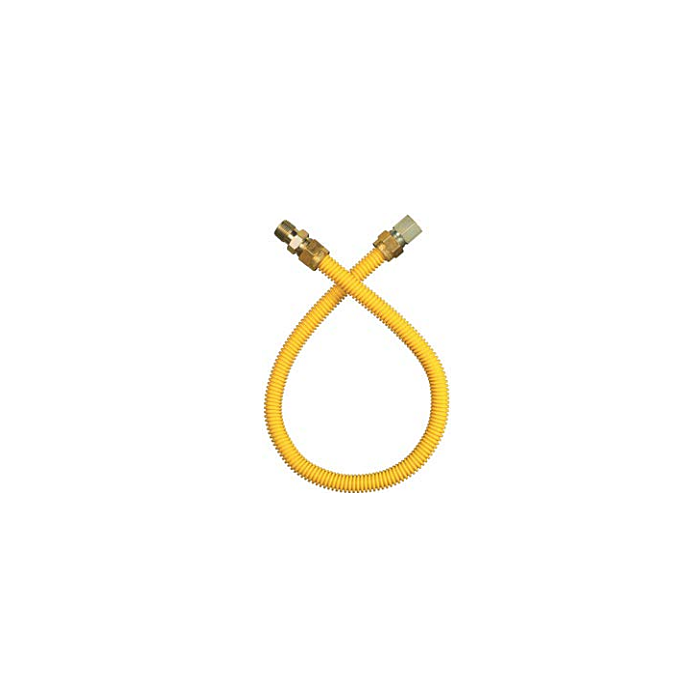

The NDL INDUSTRIES g303-3132-12 is a stainless steel coated flexible gas connector designed for connecting gas appliances to supply lines in residential and light commercial installations. It measures 12 inches in length with a 5/8-inch outer diameter and 1/2-inch inner diameter, and terminates in 1/2-inch Male Pipe Thread (MPT) on one end and 1/2-inch Female Pipe Thread (FPT) on the other. The stainless steel coating provides corrosion resistance and durability in exposed or semi-exposed environments. Plumbers and HVAC technicians use this connector for final appliance hookups where a short, flexible run is required between the rigid supply line and the appliance inlet.

This connector is suited for natural gas and liquid propane appliance connections including ranges, dryers, water heaters, and space heaters in residential settings. The 12-inch length is appropriate for installations where the appliance inlet is in close proximity to the gas shutoff valve or supply stub-out. The 1/2-inch NPT threading is a standard size widely compatible with residential gas appliance fittings and supply valves. Licensed plumbers or gas fitters typically perform this installation as required by local codes.

Key Features

• Stainless steel coated construction for corrosion resistance and long service life
• 12-inch length suits tight-clearance appliance hookups
• 5/8-inch OD with 1/2-inch ID flexible hose body
• 1/2-inch MPT x 1/2-inch FPT end fittings for standard NPT connections
• Lightweight at 0.644 pounds for easy handling during installation

Compatibility

Designed as a standard-size replacement or new-installation flexible gas connector for residential gas appliances using 1/2-inch NPT supply connections.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the service valve and verify zero pressure before disconnecting or connecting any fittings. Apply an approved pipe thread sealant or tape rated for gas service to all threaded connections. Do not over-bend or kink the flexible connector, and never route it through walls, floors, or ceilings.

Technical Specifications

• Length: 12 inches
• Outer Diameter: 5/8 inch
• Inner Diameter: 1/2 inch
• NPT Size: 1/2 inch MPT x 1/2 inch FPT
• Weight: 0.644 pounds
• Box Quantity: 25

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: g303-3132-12
