Ndl Industries g300-3132-48 Gas Connector 48in Fip X Mip

Product Description

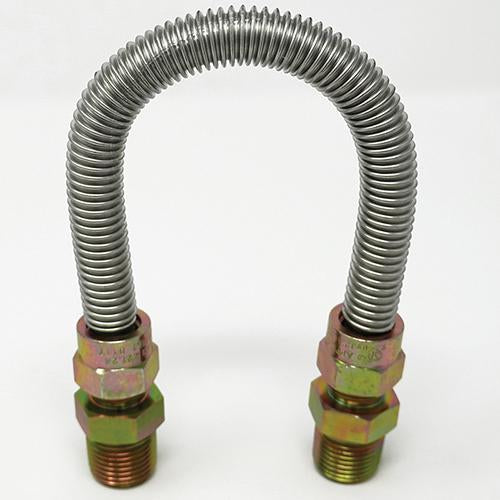

The NDL INDUSTRIES g300-3132-48 is a flexible gas connector designed to supply natural gas or propane from a shutoff valve to a gas appliance. The connector measures 48 inches in length with a 5/8 inch outside diameter and uses FIP x MIP end fittings in a 1/2 inch fitting size. Flexible gas connectors like this one are a standard component in residential and light commercial gas appliance installations, providing a compliant, pressure-rated flexible link between rigid gas supply piping and the appliance inlet. Licensed plumbers and gas fitters rely on connectors in this configuration for stoves, dryers, water heaters, and similar equipment.

This connector is suited for residential and light commercial applications where a 48 inch flexible run is needed between the gas shutoff and the appliance connection. The FIP x MIP end configuration allows it to thread directly onto standard gas supply fittings without adapters in typical installations. A 48 inch length provides enough reach to accommodate appliance movement for cleaning or servicing without disconnecting the supply line.

Key Features

• 48 inch length for flexible appliance positioning and serviceability
• 5/8 inch outside diameter flexible body
• 1/2 inch FIP x MIP end fittings for direct connection to standard gas supply components
• Designed for use with natural gas or propane appliance installations

Compatibility

Designed as an OEM-style replacement or new-installation flexible gas connector for residential and light commercial gas appliances with 1/2 inch FIP x MIP supply connections.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with IFGC requirements and local codes. Shut off the gas supply at the main valve before beginning work and verify zero pressure before making or breaking any connections. Do not use gas connectors in concealed spaces, through walls, or in applications where the connector would be subject to physical damage. After installation, test all connections with an approved leak-detection solution before restoring gas service and relighting appliances.

Technical Specifications

• Connection Type: FIP x MIP
• Fitting Size: 1/2 inch
• Length: 48 inches
• Outside Diameter: 5/8 inch

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: g300-3132-48
