Ndl Industries g300-3132-12 Gas Connector 1/2 in Fip X Mip

Product Description

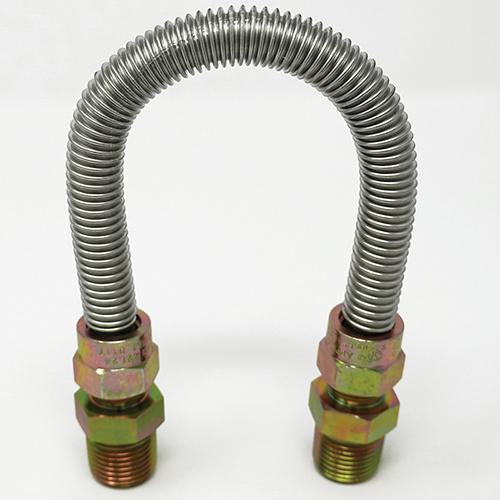

The NDL INDUSTRIES g300-3132-12 is a flexible gas connector designed to join gas supply lines to appliances in residential and light commercial installations. It features a 1/2 inch fitting size with FIP x MIP end connections and measures 12 inches in length with a 5/8 inch outside diameter. This connector is installed by licensed plumbers and gas fitters during appliance hookups, replacements, or service calls where a code-compliant flexible gas line segment is required.

This gas connector is suited for typical residential appliance connections including ranges, dryers, water heaters, and similar gas-fired equipment. The FIP x MIP configuration accommodates standard threaded gas supply fittings found in most residential and light commercial gas systems. Its 12 inch length provides adequate reach for common appliance rough-in locations without excessive slack.

Key Features

• 1/2 inch fitting size for standard residential gas supply connections
• FIP x MIP end connections for threaded gas line hookups
• 12 inch length suitable for typical appliance installations
• 5/8 inch outside diameter flexible body

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential and light commercial gas appliance hookups requiring a 1/2 inch FIP x MIP flexible connector.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the meter or main shutoff valve before disconnecting or installing any gas connector. Apply thread sealant rated for gas service to all threaded connections and leak-test with an approved solution after installation. Do not kink, over-bend, or reuse a previously installed flexible gas connector.

Technical Specifications

• Connection Type: FIP x MIP
• Fitting Size: 1/2 inch
• Length: 12 inches
• Outside Diameter: 5/8 inch

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: g300-3132-12
