Ndl Industries G103-2131-48 Gas Connector 48 in

Product Description

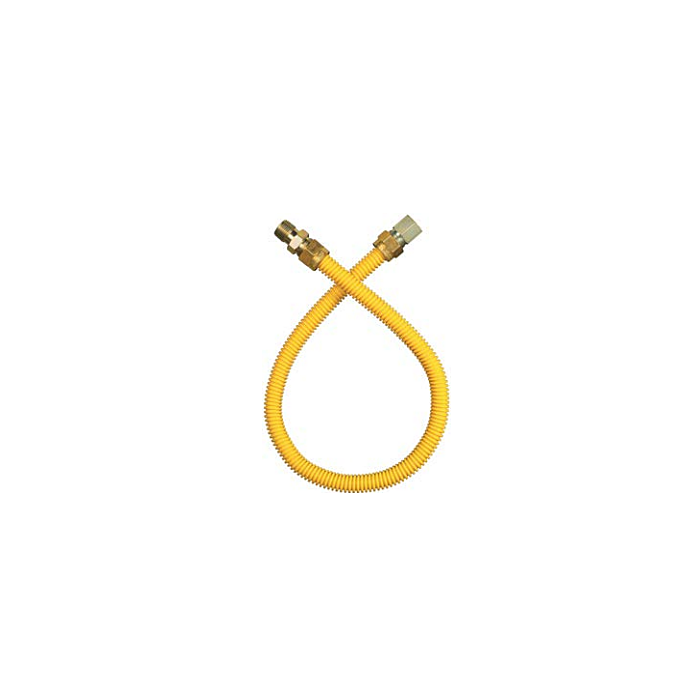

The NDL Industries G103-2131-48 is a stainless steel coated flexible gas connector designed to supply natural gas or liquid propane from a fixed supply line to an appliance. It features a 3/8 inch OD corrugated stainless steel core with a protective coating, measuring 48 inches in length. End connections are 1/2 inch MIP on the supply side and 3/8 inch MIP on the appliance side. This connector is a standard component in residential and light commercial gas appliance installations and is typically installed by licensed plumbers or gas fitters.

This connector is suited for connecting gas ranges, dryers, water heaters, and similar residential gas appliances to a branch supply line. The 48 inch length provides enough flexibility to accommodate standard setback distances between a wall shutoff valve and the appliance inlet. The MIP thread configuration on both ends is a common fitment found on residential gas appliances and standard gas stop valves.

Key Features

• 48 inch length accommodates standard appliance setback and service clearances
• Stainless steel corrugated core with protective outer coating for durability and corrosion resistance
• 3/8 inch OD core with 1/4 inch ID for standard residential gas flow capacity
• 1/2 inch MIP x 3/8 inch MIP end connections for direct connection to common shutoff valves and appliance inlets
• Flexible construction allows routing around minor obstructions without rigid pipe work

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential gas appliances requiring a 1/2 inch MIP supply connection and 3/8 inch MIP appliance inlet with a 48 inch flexible line.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the main or branch shutoff valve before making any connections. Apply thread sealant rated for gas service to all male threads before assembly. Do not over-bend, kink, or use this connector in a concealed or inaccessible location unless specifically listed for that application.

Technical Specifications

• Outer Diameter (OD): 3/8 inch
• Inner Diameter (ID): 1/4 inch
• Length: 48 inches
• Connection Size: 1/2 inch MIP x 3/8 inch MIP
• NPT Size: 1/2 inch x 3/8 inch MPT
• Item Weight: 0.714 pounds
• Box Quantity: 25

Standard Information

• Brand: NDL Industries
• Manufacturer Part Number: G103-2131-48
